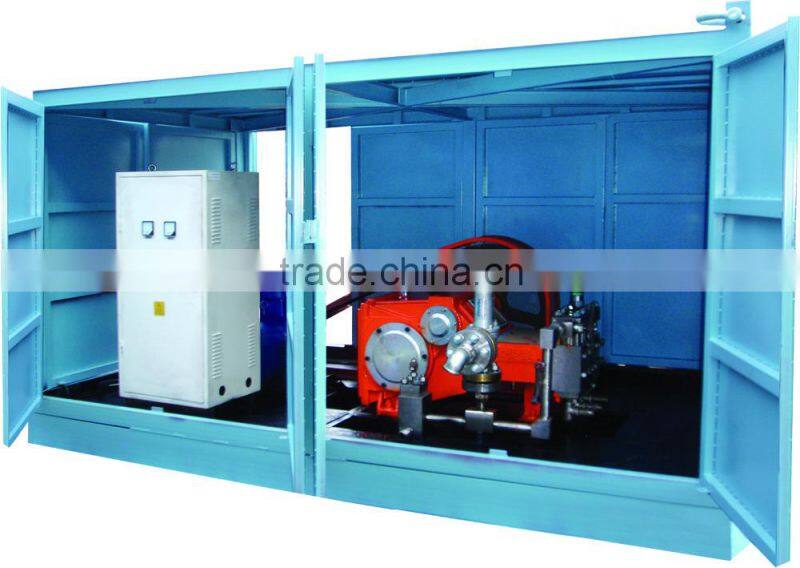

High pressure jet grouting machine for oil field
High Pressure Profile Control Pump XPB-90E is a new product that we especially developed for the users whose pumps should not
be stopped in a long time.The power end of the product adopted integral rolling bearing, which is suitable for long running, with low
temperature rise and noise. Among the products of the same level, it is an update product with best cost performance. The fluid end is
ball valve, which can effectively prolong the service life of vulnerable parts.
Grouting Inlet Dimensions 2”
Grouting Outlet Dimensions M39×2
Maximum Motor Speed |
1320r/min | Stroke Length |
80mm | ||||
Theoretical Capacity |
Motor Power(KW) |
Plunger Diameter (MM) |
|||||
| 55 | 75 | 90 | 110 | 132 | |||
| M³/h | L/min | Rated Discharge Pressure |
|||||
| 13 | 217 | 12 | 17 | 20 | 25 | 30 | 80 |
| 11 | 188 | 14 | 19 | 23 | 28 | 34 | 75 |
| 9.9 | 165 | 16 | 22 | 26 | 32 | 39 | 70 |
| 8.6 | 141 | 18 | 25 | 31 | 38 | 45 | 65 |
| 7.1 | 119 | 22 | 30 | 37 | 45 | 50 | 60 |
| 6.0 | 100 | 26 | 37 | 44 | 53 | 56 | 55 |
| 5.0 | 83 | 32 | 44 | 53 | 60 | 60 | 50 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
