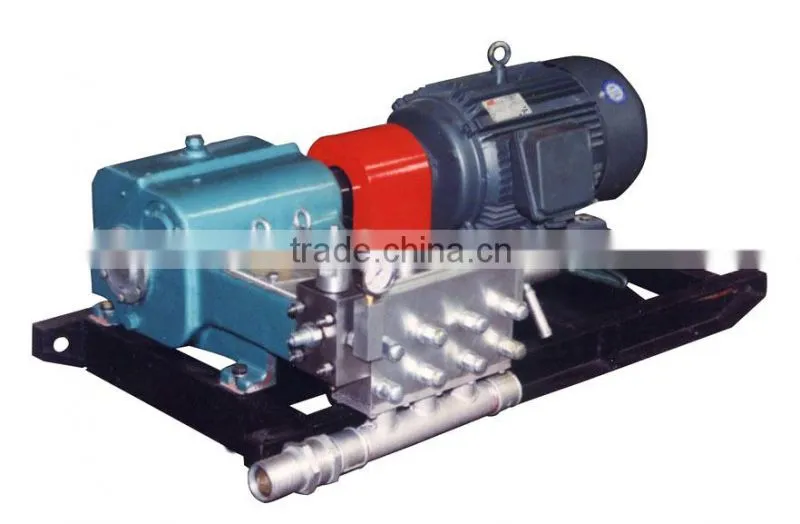

Washing machine for condenser and heat exchanger cleaning
3S1 series high-pressure reciprocating pump can be used as the power source of high-pressure water, and it can be applied to small and
large diameter pipeline cleaning, vessel cleaning, workpiece cleaning, derusting, waterassisted piling, water corrosion cutting and so on.
The pump also can be used to transport water, emulsion and other liquids whose chemical property is similar to water.
Safety valve and throttle valve are installed at the fluid end of this product. They constitute a separate system which can regulate throttle
valve to adapt to different capacity demands.
Various cleaning machines, valves, high-pressure rubber hoses and spray guns can be equipped for users. The diesel engines with different powers are provided according to customer’s demand.
Water Inlet Dimensions 2″
Water Outlet Connection Dimensions M22×1.5
|
Input Speed |
1470r/min | Stroke Length |
70mm | ||||
Theoretical Capacity |
Motor Power(KW) |
Plunger Diameter (MM) |
|||||
| 7.5 | 11 | 15 | 18.5 | 22 | |||
| M³/h | L/min | Rated Discharge Pressure |
|||||
| 1.00 | 17.8 | 15.4 | 24.5 | // | // | // | 15 |
| 1.90 | 31.6 | 8.7 | 13.8 | 20 | 28 | 34 | 20 |
| 2.30 | 38 | 7.2 | 11.5 | 16.9 | 23.8 | 28 | 22 |
| 2.90 | 49 | 5.6 | 8.9 | 13 | 18.5 | 22 | 25 |
| 3.70 | 62 | 4.4 | 7.0 | 10.3 | 14.6 | 17 | 28 |
| 4.27 | 71 | 3.8 | 6.0 | 9.0 | 12.7 | 15 | 30 |
| 4.86 | 81 | 3.4 | 5.4 | 7.9 | 11 | 13 | 32 |
| 5.80 | 97 | 2.8 | 4.5 | 6.6 | 9.0 | 11 | 35 |
| 7.60 | 126 | // | 3.4 | 5 | 7 | 8 | 40 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
