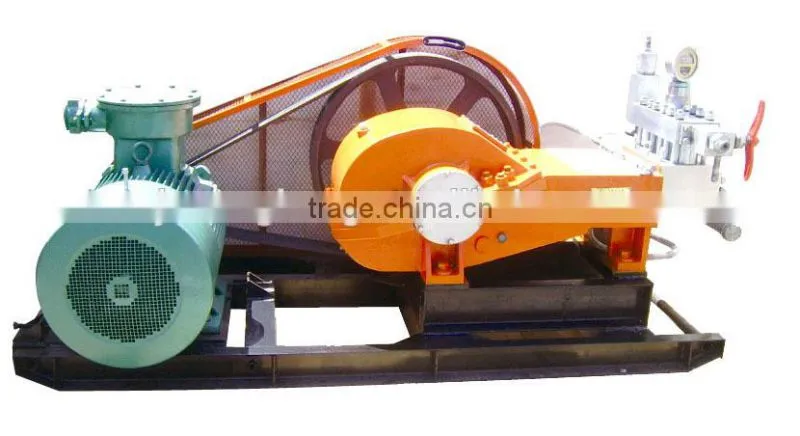

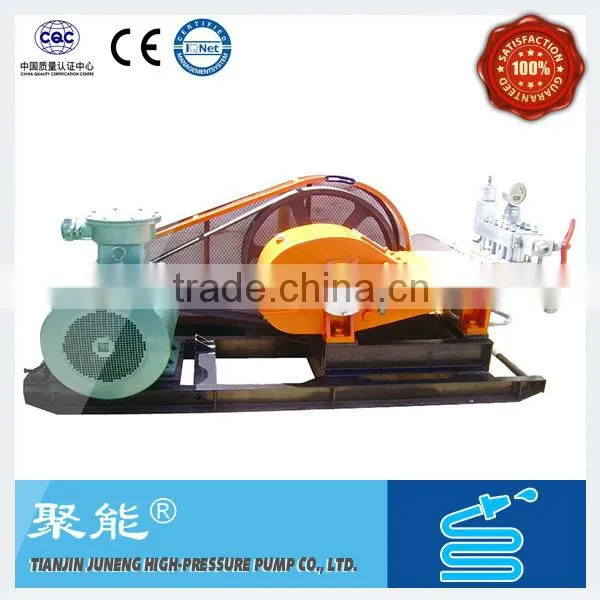

3S-15 Series High Pressure Plunger Pump
3S-15 high-pressure water pump is a new product that we especially developed for the users
whose pumps should not be stopped in a long time.
The power end of the product adopted integral rolling bearing, gearless driving, which is suitable for long running,
with low temperature rise and noise. Among the products of the same level, it is an update product with best cost performance.
Water Inlet Dimensions 2″
Water Outlet Dimensions M22×1.5
Input Speed |
1480r/min | Stroke Length |
80mm | |||||
Theoretical Capacity |
Motor Power(KW) |
Plunger Diameter (MM) |
||||||
| 18.5 | 22 | 30 | 37 | 45 | 55 | |||
| M³/h | L/min | Rated Discharge Pressure |
||||||
| 6.60 | 110 | 7.2 | 9.1 | 14.1 | 17.4 | 21 | // | 40 |
| 5.8 m³/h 98L/min | ||||||||
| 8.40 | 140 | 5.6 | 7.2 | 11.1 | 13.7 | 16.7 | 20 | 45 |
| 7.4 m³/h 124L/min | ||||||||
| 10.3 | 173 | 4.5 | 5.8 | 8.9 | 11.0 | 13.4 | 16 | 50 |
| 9.2 m³/h 154L/min | ||||||||
| 12.5 | 209 | 3.7 | 4.8 | 7.4 | 9.1 | 11.1 | 13 | 55 |
| 11 m³/h 186L/min | ||||||||
| 14.9 | 249 | 3.1 | 4.0 | 6.2 | 7.6 | 9.3 | 11 | 60 |
| 13 m³/h 22L/min | ||||||||
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
