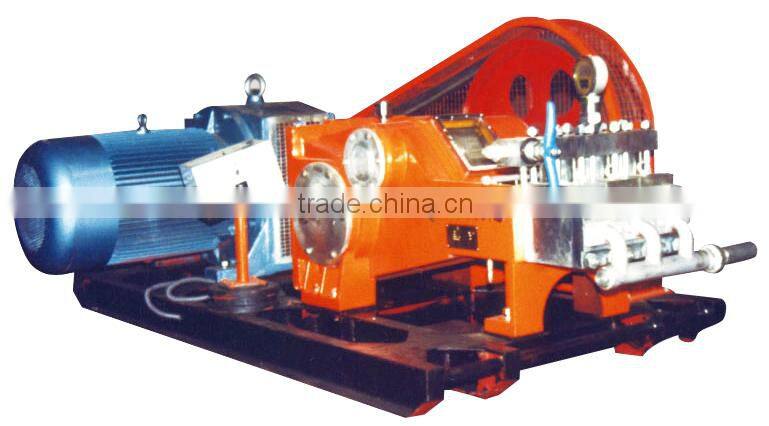

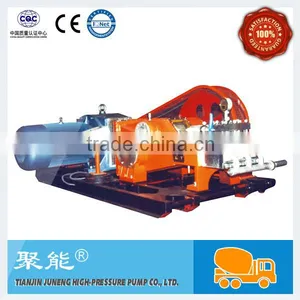

Injection grouting machine for curtain grouting
This grouting pump is designed to meet the market requirement.
The fluid end of the product adopts the combined split-type pump head,
the power end adopts needle bearing transmission,which can operate 24h
continuously with low temperature rise and noise. It is applied to foundation
treatment of high-pressure jet grouting, curtain grouting, earth-retaining
cofferdam, mines plugging, protecting wall of the shaft, slope anchorage
and other fields.
This product is power end enhanced model, which is the update and upgrade
product of high-pressure grouting pump XPB-90B.
Grouting Inlet Dimensions 2”
Grouting Outlet Connection Dimensions M30×1.5
Maximum Motor Speed |
1340r/min | Stroke Length |
120mm | ||
Theoretical Capacity |
Motor Power(KW) |
Plunger Diameter (MM) |
|||
| 55 | 75 | 90 | |||
| M³/h | L/min | Rated Discharge Pressure |
|||
| 7.5 | 125 | 22 | 32 | 38 | 50 |
| 6.0 | 100 | 28 | 39 | 45 | 45 |
| 4.8 | 80 | 33 | 45 | 55 | 40 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
