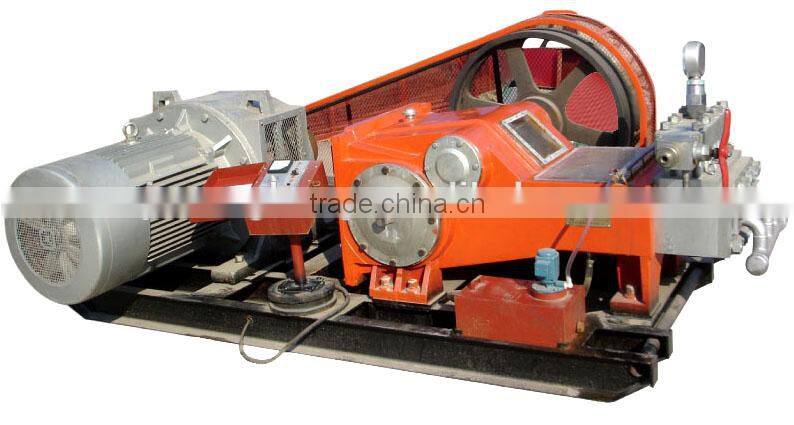

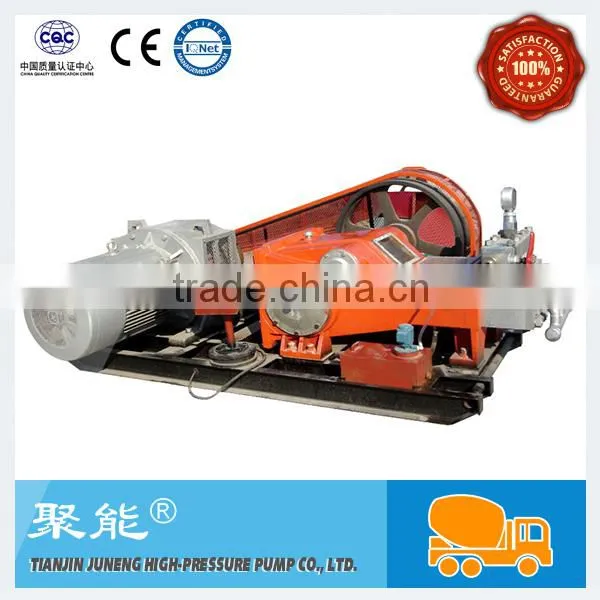

High Pressure Grouting Pump XPB-90C
This grouting pump is designed to meet the market requirement.
The fluid end of the product adopts the combined split-type pump head,
the power end adopts needle bearing transmission,which can operate 24h
continuously with low temperature rise and noise. It is applied to foundation
treatment of high-pressure jet grouting, curtain grouting, earthretaining
cofferdam, mines plugging, protecting wall of the shaft, slope anchorage and
other fields.
This product is the specified product during the cofferdam vibrating boring
and high-pressure jet grouting in Phase II of the Three Gorges Project,
which has made great contributions to the Three Gorges Project.
Grouting Inlet Dimensions 2”
Grouting Outlet Connection Dimensions M30×1.5
Theoretical Capacity |
Motor Power (KW) |
Plunger Diameter (MM) |
||
| 90 | 110 | |||
| M³/h | L/min | Rated Discharge Pressure (MPa) |
||
| 5.460 | 91 | 50 | // | Ø50 |
| 6.600 | 110 | 42 | 50 | Ø55 |
| 7.860 | 131 | 35 | 43 | Ø60 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
One-year warranty
Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
Service hotline & hotmail is provided for customers real time consulting.
Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
We provide on-site technical service at home and abroad.
