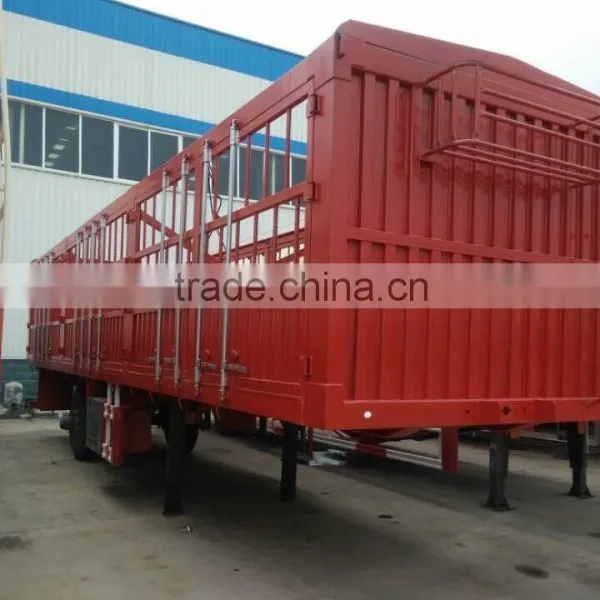

2014 China Time Go Storage Grid Semi-trailer Manufacturer

Name: 2014 China Time Go Storage Grid Semi-trailer Manufacturer
Brand: Time Go
SKU: 112254235
Availability: InStock

US$ 13,000 - 16,000 MOQ: 1 Piece

Key Specifications

OEM No.:

3708322800116

Max Payload:

60t

Size:

12500*2500*3500mm

Weihai King-Life Sports Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

OEM No. 3708322800116

Max Payload 60t

Size 12500*2500*3500mm

Place of Origin Shandong, China

Brand Name Time Go

Model Number semi trailer

Specifications

Use: Truck Trailer Type: Semi-Trailer Material: Steel Certification: CE Size: 12500*2500*3500mm OEM No.: 3708322800116

1.Export to Africa everymonth in batch.
2.Pass SGS,CCC,CQC,BV,etc
3.can transport animals,big goods
4.one year quality guarte

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm (Outerside) 1280023001800mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Side Wall	600mm-1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube
Bottom Platform	3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
