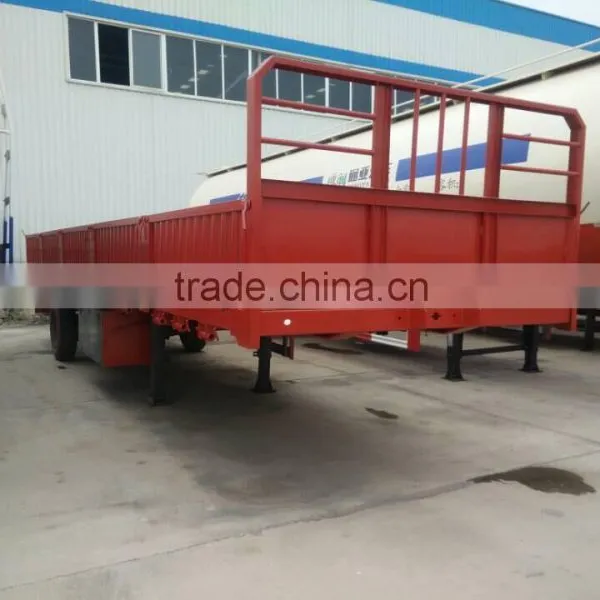

2014 China Time Go 3 Axle Side Wall Semi-Trailer

Type

 Drop side semi trailer

Weight:

Tare Weight

4500kg--8000kg

Loading Capacity

30T--60T

Axle Weight Load

13T/16T

Specification:

Axle number

Two or Three

Axle specs.

FUWA or BPW Brand

Suspension

Common mechanical

Wheel

11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand

King Pin

JOST 2.0" or 3.5" traction pin

Dimensions
 (LxWxH)

12450×2500×1490mm,13000*2490*1450/1575/2770mm

Support legs

28Tons (Tongyada Brand)/Jost D200T

Rim

8.25×22.5/9.00*22.5 Vacunnm tire  Zhengxing Brand

Wheelbase

5980+1300/6680/6260+1310+1310mm,

Steel Spring

10/10/10 pieces per axles

Tire:

Number of Tire

can be choose freely

Spare Tire Carriers

2/4 pieces

Frame: (specs. and materials)

The material of
Main beam

The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm.

Side board

The height is from 600-1500mm ,

Platform plate

3mm Diamond Plate

Brake:

Brake

Kemi Brand of China

Brake Chamber

Four double and two single chamber( TKL brand  )
