Product name: 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor
l Mylar tape, sealed with epoxy resin;
l Copper nut leads;
l Resistance to high voltage, low tg δ, low temperature rise;
l Low ESL and ESR;
l High pulse Current.
3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor technical datas as following:
Operating temperature range | -40℃~ +85℃ |
Capacitance range | 0.22~3μF |
Rated voltage | 3000V.DC ~ 10000V.DC |
Capacitance tolerance | ±5%(J); ±10%(K) |
Life expectancy | 100,000hour (Un; hotspot≤85℃) |
Withstand voltage | 1.35Un DC/10S |
Dissipation factor | tgδ≤0.001 f=1KHz |
Insulation resistance
| C>0.33μF RS*C≥5000S (at 20℃ 100V.DC 60S) |
C≤0.33μF RS≥15000MΩ (at 20℃ 100V.DC 60S) | |
Flame retardation | UL94V-0 |
Reference standard | IEC61071 |

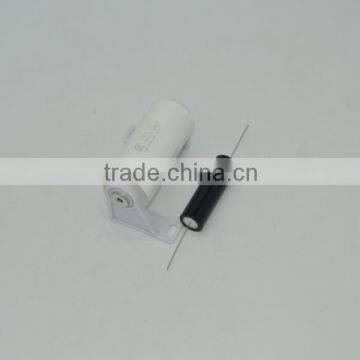

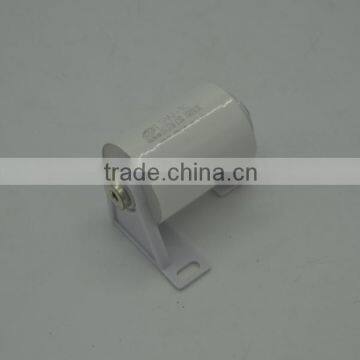

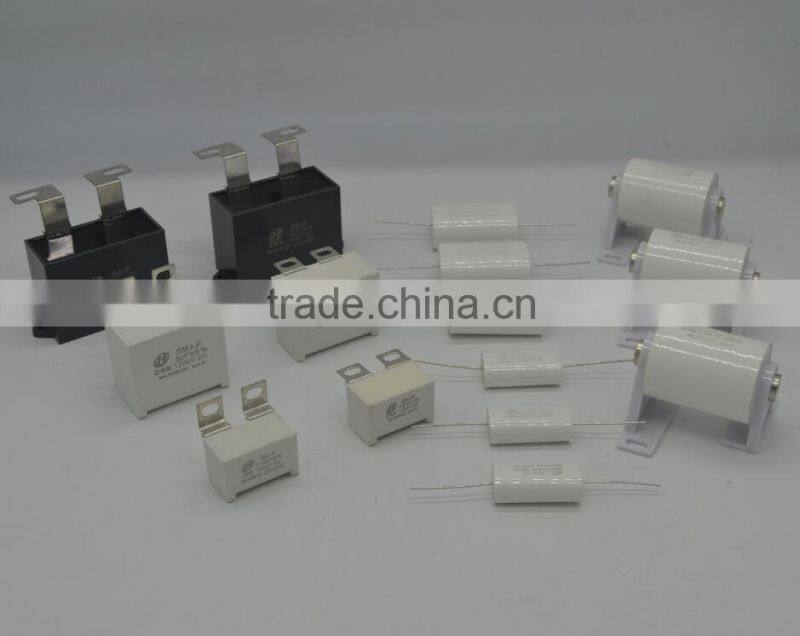

Other product images of 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor
Typical circuit of 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor
Outline drawing of 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor
3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor is widely used in GTO snubber and power electronic equipment when the peak current absorption protection.
Besides, our other products can be applied for other areas:
l Can replace electrolytic capacitors, better performance and longer life;
l Wind power, photovoltaic power inverter, SVG;
l Welding equipment, power suppliers, induction heating equipment;
l New energy automobile.
Wuxi Chenrui New Energy Technology Co., Ltd also calls CRE, the company is committed to serve the energy saving, environmental protection, electronic vehicles and other new energy areas, and our 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor is hot sales recently.
Production line
Winding-8 Guns Sprayer-Cleaning-Semi-Auto Test-Welding-Auto Potting-Burn-in-Auto test for final product, which is our standard procedures for 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor.
Our company make the whole production according to ISO9001 quality management system certificate. Besides, we have ISO/TS 16949/2009 certificate, which is especially for vehicles capacitors, such as: 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor.
Q1. Are you manufacturer or trading company?
A1. We are manufacturer in Wuxi, Jiangsu Province, P.R. China.
Q2. What’s your advantage as a film capacitor supplier?
l Professional team: we have more than 10 technicians in our R&D department, and the chief engineer has more than 40 years experience in film capacitor field.
l Advanced equipments: advanced finished product testing and spraying machines, dust-free winding workshop, high product quality with Six Sigma standard. And we will do AGING TEST FOR ALL PRODUCTS before delivery, which will decrese failture rate for clients.
l One stop service: we also provide OEM and ODM service and good after sales service.
l Strong technical support: more than ten patents in the capacitors field, especially ISO/TS 16949/2009, which is for vehicles capacitors, such as: 3uf capacitor, IGBT/GTO snubber capacitor, polypropylene capacitor.
l High quality with competitive price.
l Acceptable of small order, MOQ is one piece.
l Short lead time, 21days.
