Help CenterHigh Voltage Fuse Link 11-27KV
US$ 1 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
K 11-27KV
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
33~38kV High Voltage Fuse Link (welding Wire)US$ 1 - 100MOQ: 100 Pieces -
Plastic Shell High Performance Manual Pulse Generator / Handwheel EncoderUS$ 4 - 100MOQ: 100 Pieces
-
Silicone Rubber High Voltage Drop Out FuseUS$ 1 - 100MOQ: 3 Pieces
-
Fuse Link (welding Wire) Type K 11kVUS$ 1 - 100MOQ: 100 Pieces
-
DC Jack Plug ConnectorUS$ 0.01 - 1MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
K 11-27KV
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications
1.apply to the 11kV-27kV drop out fuse.2.current up to 300A.
3.according to ANSI/IEEE C37.41-2000 and IEC-282 standard.
Type K & T Fuse Links( cartridge fuse links )for Dropout Fuse Cutout.
1).Product Description:
This fuse wires apply to the 11KV -36KV DROP OUT FUSE.
2).Standard:
according to ANSI/IEEE C37.41-2000 and IEC-282 standard.
3).Technical specification:
Rated Current: 1A-300A
Rated Voltage: 11KV-27KV
Length: 530mm-600mm (23 inch)
Length of fuse link can be make according to requests.

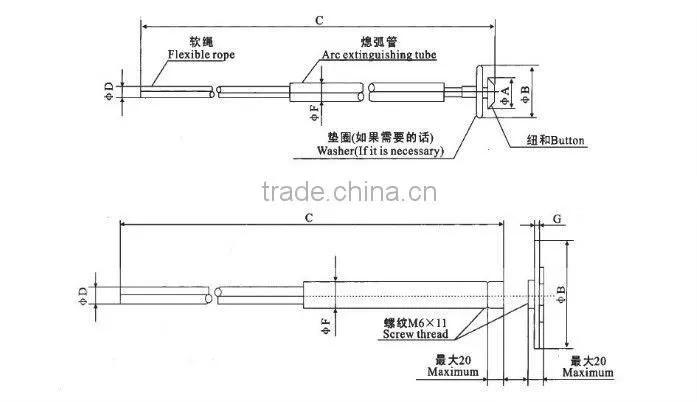

Appearance and installation dimensions
