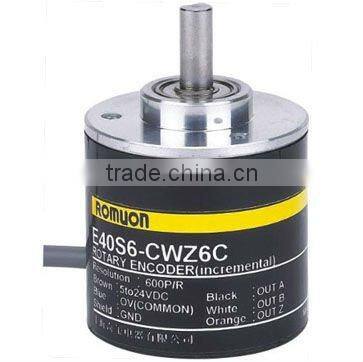

40.00mm outer diameter Incremental type photoelectric encoder, rotary encoder

Specifications

50.00mm outer diameter Optical Incremental rotary encoder
High pricision rotary encoders
Industrial strength

Detailed Product Description

1.certificate of CE
2.high precision, 5 years warranty
3.nearly 10 years' experience

50.00mm outer diameter  Optical Incremental rotary encoder



High pricision rotary encoders



Industrial strength encoder meets world-class standards





pls specify the pulse and shaft diam. when ordering







External diameter	50.00mm
Shaft diameter	6.00mm or 8.00mm
Output signal form	NPN open collector
Output signal channel	phase A,B,Z
Pulse	10-3,000ppr
Installation dimension	Diam 40±0.1mm or 38mm
Power supply voltage	DC5-24V
Current consumption	below 80 mA
Response frequency	100kHz
Phase difference of output	90°±45°between A and B(1/4T±1/8T)
Starting Torge	below 10mNm
Maximum rotating speed	6,000 r/min
Weight	300g
Protect circuit	Short circuit protection



High pricision rotary encoders



Drip-proff construction



Shaft withstands heavy loads, 5kgf radially, 3kgf thrust(axially)



Short circuit protection



Space-saving,A-slant cable protection for ease mounting
