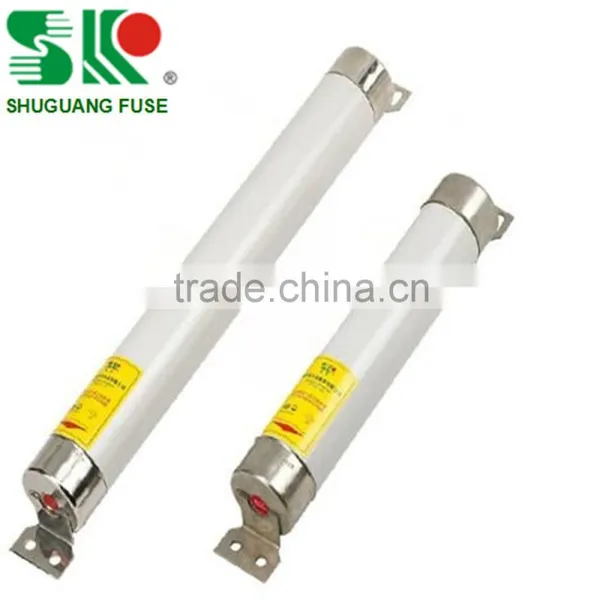

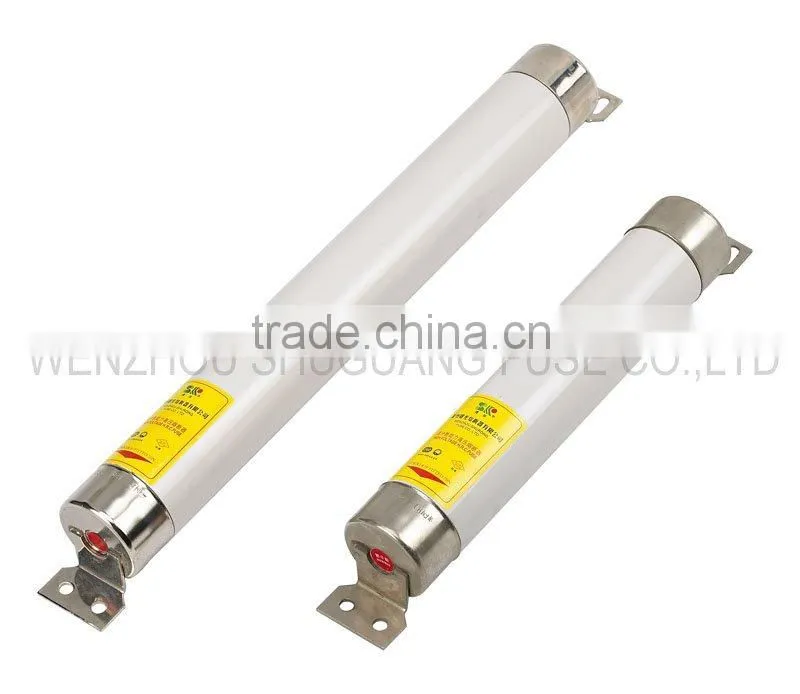

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard thumbnail-3

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard thumbnail-4

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard thumbnail-5

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard thumbnail-6

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-1

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-2

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-3

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-4

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-5

7.2kv High-voltage Current-limiting Fuses Use for Transformer Protection /XRNT Type of Fuse IEC282-1,GB15166.2 Standard photo-6

US$ 13 - 20 MOQ: 3 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

XRNT

Contact Supplier Request Quote Chat Now

Wenzhou Shuguang Fuse Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SR

Model Number XRNT

Usage High Voltage

Breaking Capacity High

Safety Standards IEC

Applicatoins

H.V HRC current-limiting fuses type A/B for transformer protection is mainly used in AC 50Hz,rated voltage 3.6-40.5KV,rated current up to 160A circuit for protecting transformers and power equipment from overload and short-circuit.It can also be used with load switch,vacuum contact.

Design Features

A/B type H.V HRC current-limiting fuses is bus-bar installation. The fuse link is fastened to the bus bar directly with bolts. It is small in volume, reliable inconnection.

The striker parallels to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand.

The fuse tube is made from heat resistant, high duty ceramic or epoxy glass.When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting or automatically cutting the circuit.

A/B type H.V HRC current-limiting fuses has many merits and high current-limiting ability, high breaking capacity, quick and punctual in action, reliable in performance.

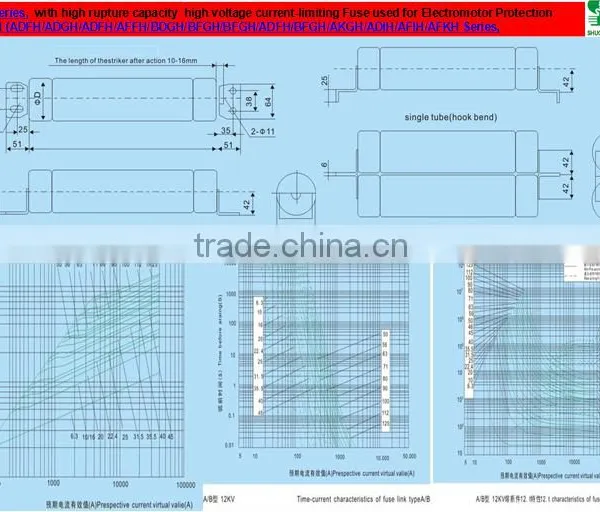

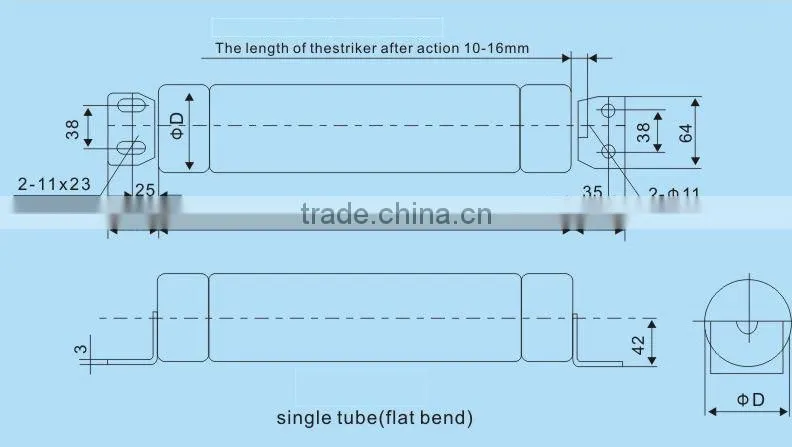

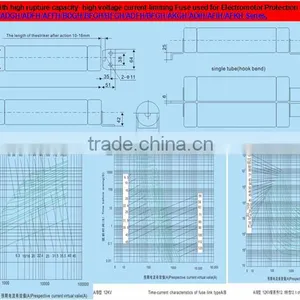

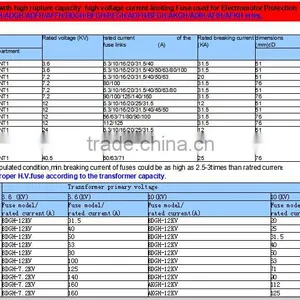

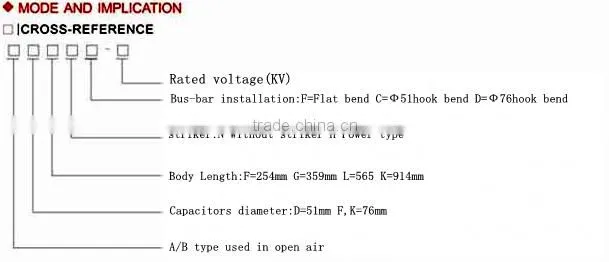

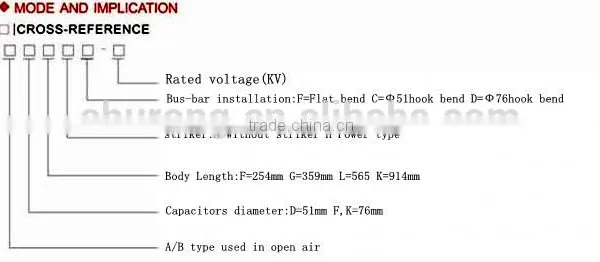

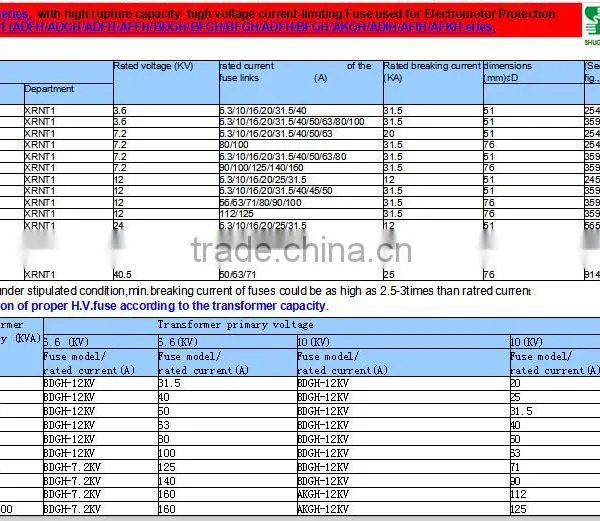

model		Rated voltage (KV)	rated current of the fuse links (A)	Rated breaking current (KA)	dimensions (mm)¢D	(See fig.,1 )L
Foreign	Department	Rated voltage (KV)	rated current of the fuse links (A)	Rated breaking current (KA)
ADFH	XRNT1	3.6	6.3/10/16/20/31.5/40	31.5	51	254
ADGH	XRNT1	3.6	6.3/10/16/20/31.5/40/50/63/80/100	31.5	51	359
ADFH	XRNT1	7.2	6.3/10/16/20/31.5/40/50/63	20	51	254
AFFH	XRNT1	7.2	80/100	31.5	76	254
BDGH	XRNT1	7.2	6.3/10/16/20/31.5/40/50/63/80	31.5	51	359
BFGH	XRNT1	7.2	90/100/125/140/160	31.5	76	359
ADFH	XRNT1	12	6.3/10/16/20/25/31.5	12	51	245
BDGH	XRNT1	12	6.3/10/16/20/31.5/40/45/50	31.5	51	359
BFGH	XRNT1	12	56/63/71/80/90/100	31.5	76	359
AKGH	XRNT1	12	112/125	31.5	76	359
ADIH	XRNT1	24	6.3/10/16/20/25/31.5	12	51	565
AFIH	XRNT1	24	40/50/63/80/90	16	76	565
ADIH	XRNT1	40.5	3.15/5/6.3/10/16/20/25/31.5	16	51	565
AFIH	XRNT1	40.5	40	25	76	565
AFKH	XRNT1	40.5	50/63/71	25	76	914

Note:under stipulated condition,min.breaking current of fuses could be as high as 2.5-3times than ratred current.

slelction of proper H.V.fuse according to the transformer capacity.

Transformer capacity (KVA)	Transformer primary voltage
	6.6 (KV)	6.6(KV)	10(KV)	10(KV)
	Fuse model/ rated current (A)	Fuse model/ rated current (A)	Fuse model/ rated current (A)	Fuse model/ rated current (A)
200	BDGH-12KV	31.5	BDGH-12KV	20
250	BDGH-12KV	40	BDGH-12KV	25
300/315	BDGH-12KV	50	BDGH-12KV	31.5
400	BDGH-12KV	63	BDGH-12KV	40
500	BDGH-12KV	80	BDGH-12KV	50
630	BDGH-12KV	100	BDGH-12KV	63
750/800	BDGH-7.2KV	125	BDGH-12KV	71
1000	BDGH-7.2KV	140	BDGH-12KV	90
1250	BDGH-7.2KV	160	AKGH-12KV	112
1500/1600	BDGH-7.2KV	160	AKGH-12KV	125
