Specifications
indicating and gearing device of high voltage fuse1. applide to 3.6kV~40.5kV indoor high voltage fuse
2. for proving alarm
1. Application

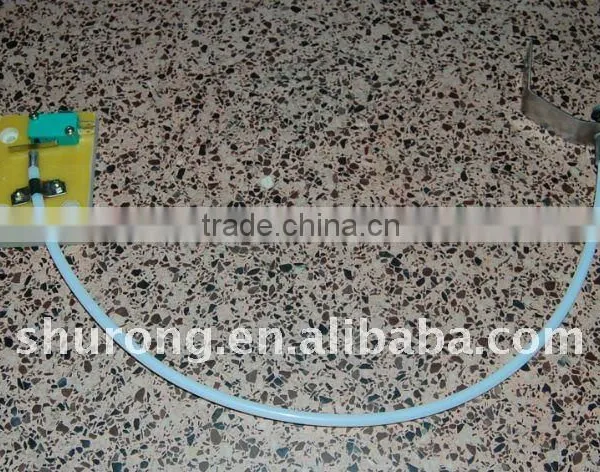

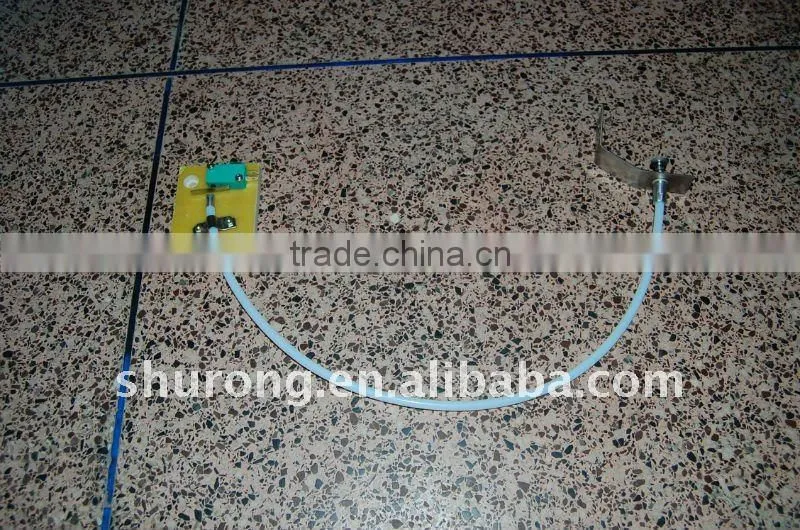

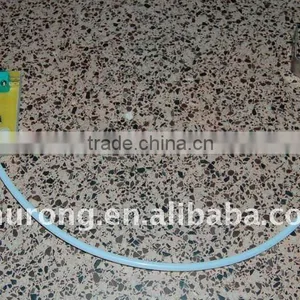

The device is applide to 3.6kV~40.5kV indoor high voltage fuse (with striker), such as XRNT, XRNM, RN1, RN3, etc. After action of fuse, the striker would ejet compressed target-head, which drives insulates core axis move to low-voltage loop, and open micro-switch, for proving alam and insulation function.
2. Installation size and operaion debugging
1). The device could be installed in any direction on the premise of being up to insulated distance, its size refers to diagram1.
2). proveded the striker of fuse belongs to spring type, it is suggesed to move (like diagram2), provided the striker of fuse belongs to powder type, it is suggested to move target-head to certain position with more-than 3 mm distance away from axes of striker, meanwhile, adjust push-loop to certain position with 5 mm distance away from inching rod.
