Help CenterFilm Capacitor 225j 400v, DC Link Capacitor
Related Products
-
Film Capacitor 104k 400v, DC Link CapacitorUS$ 5 - 100MOQ: 1 Piece -
High Voltage Discharge Film Capacitor, DC Link CapacitorUS$ 5 - 100MOQ: 1 Piece
-
Film Capacitor 330 uf 450v, DC Link CapacitorUS$ 5 - 100MOQ: 1 Piece
-
DC Link Capacitor, 470uf 1200v Wind Power Converter Film CapacitorUS$ 5 - 100MOQ: 1 Piece
-
DMJ-MT Series, Capacitor 80uf, Film Capacitor, DC Link CapacitorUS$ 5 - 100MOQ: 1 Piece
Welcome to
Wuxi Chenrui New Energy Technology Co., Ltd
-- Dedicated to power electronics.
-- Industry-leading manufacturer of power film capacitor.
-- DC-Link, AC-filter, Resonance, Welding, IGBT/GTO Snubber capacitor, also capacitors for Small Photo-voltaic, SVG, Wind Power, New Energy Vehicles, Charging Pile and etc.
Product name: film capacitor 225j 400v, DC link capacitor
l Metal plastic package, Sealed with epoxy resin
l Copper leads, easy installation
l Large capacity, small size
l Resistance to high voltage, with self-healing
l High ripple current, high dv/dt withstand capability.
film capacitor 225j 400v, DC link capacitor technical datas as following:
Operating temperature range |
-40 ~ +70℃. Top max: +105℃ |
Capacitance range |
100~5000μF |
Rated voltage |
400V.DC ~ 1300V.DC |
Capacitance tolerance |
±5%(J); ±10%(K) |
Withstand voltage |
1.5Un/60S |
Dissipation factor |
tgδ<=0.0015 f=100Hz |
Insulation resistance |
Rs X C>=5000S (at 20℃ 100V.DC) |
Flame retardation |
UL94V-0 |
Reference standard |
IEC61071; IEC61881 |

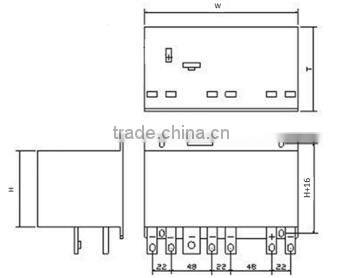

Outline drawing of film capacitor 224j 400v, DC link capacitor

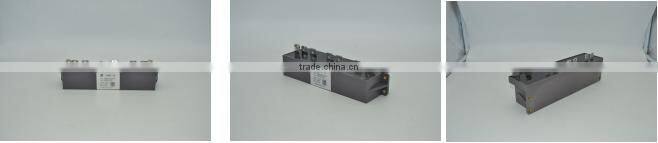

Product images of film capacitor 225j 400v, DC link capacitor
We always use film capacitor 225j 400v, DC link capacitor for new energy vehicles.
Besides, it can be applied for other areas:
l Widely used in DC-link circuit for filtering energy storage;
l Can replace electrolytic capacitors, better performance and longer life;
Wuxi Chenrui New Energy Technology Co., Ltd also calls CRE, the company is committed to serve the energy saving, environmental protection, electronic vehicles and other new energy areas, especially our film capacitor 225j 400v, DC link capacitor is hot sales recently.
Production line
Winding-8 Guns Sprayer-Cleaning-Semi-Auto Test-Welding-Auto Potting-Burn-in-Auto test for final product, which is our standard procedures for film capacitor 225j 400v, DC link capacitor.
Our company make the whole production according to ISO9001 quality management system certificate. Besides, we have ISO/TS 16949/2009 certicate, which is especially for film capacitor 225j 400v, DC link capacitor.
Q1. Are you manufacturer or trading company?
A1. We are manufacturer in Wuxi, Jiangsu Province, P.R. China.
Q2. What’s your advantage as a film capacitor supplier?
l Professional team: we have more than 10 technicians in our R&D department, and the chief engineer has more than 40 years experience in film capacitor field.
l Advanced equipments: advanced finished product testing and spraying machines, dust-free winding workshop, high product quality with Six Sigma standard. And we will do BURN-IN TEST before delivery, which will decrese failture rate for clients.
l One stop service: we also provide OEM and ODM service and good after sales service.
l Strong technical support: more than ten patents in the capacitors field, especially ISO/TS 16949/2009, which is for film capacitor 225j 400v, DC link capacitor.
l High quality with competitive price.
l Acceptable of small order, MOQ is one piece.
l Short lead time, 21days.
