Product name: capacitor 80uf, film capacitor, DC link capacitor
l Mylar tape package, sealed with epoxy resin;
l Copper nuts leads, small size, easy installation;
l Low ESR and ESL;
l High pulse current;
l High-frequency current capaicity.
Capacitor 80uf, film capacitor, DC link capacitor technical datas as following:
Operating temperature range |
-40 ~ +85℃ |
Capacitance range |
10~100μF |
Rated voltage |
350V.DC ~ 2000V.DC |
Capacitance tolerance |
±5%(J); ±10%(K) |
Life expectancy |
100,000hour (Un; hotspot≤85℃) |
Withstand voltage |
Vt-t 1.5Un/60S |
Dissipation factor |
tgδ ≤ 0.0015 f=1Hz |
Insulation resistance |
Rs X C ≥ 5000S (at 20℃ 100V.DC) |
Reference standard |
IEC61071; IEC61881 |
Typical circuit of capacitor 80uf, film capacitor, DC link capacitor
Outline drawing of capacitor 80uf, film capacitor, DC link capacitor

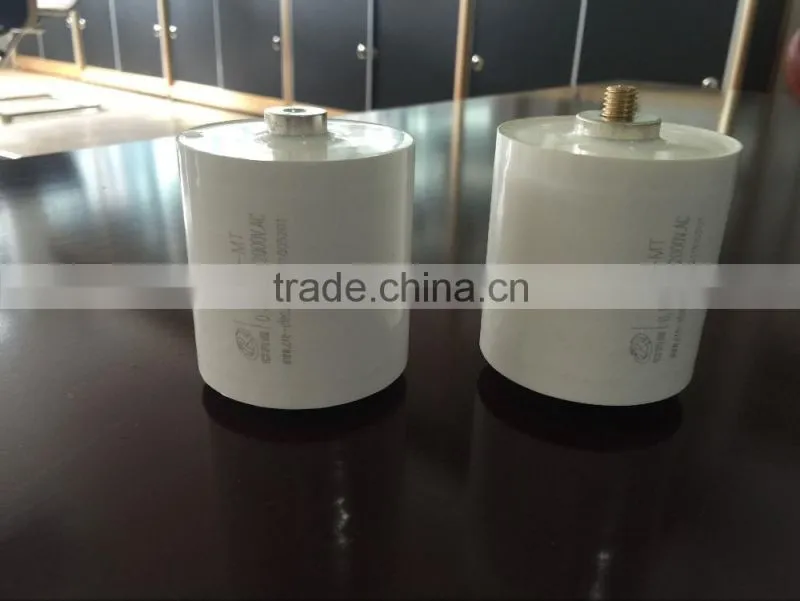

Other product images of capacitor 80uf, film capacitor, DC link capacitor
Capacitor 80uf, film capacitor, DC link capacitor is widely used in DC-Link circuit for high-frequency filtering and decoupling and in power electronic circuits for coupling. Besides, our other products can be applied for other areas:
l Can replace electrolytic capacitors, better performance and longer life;
l Wind power, photovoltaic power inverter, SVG;
l Welding equipment, power suppliers, induction heating equipment, for DC-Link filter;
l New energy automobile.
Wuxi Chenrui New Energy Technology Co., Ltd also calls CRE, the company is committed to serve the energy saving, environmental protection, electronic vehicles and other new energy areas, especially our capacitor 80uf, film capacitor, DC link capacitor is hot sales recently.
Production line
Winding-8 Guns Sprayer-Cleaning-Semi-Auto Test-Welding-Auto Potting-Burn-in-Auto test for final product, which is our standard procedures for capacitor 80uf, film capacitor, DC link capacitor.
Our company make the whole production according to ISO9001 quality management system certificate. Besides, we have ISO/TS 16949/2009 certificate, which is especially for vehicles capacitors, such as: capacitor 80uf, film capacitor, DC link capacitor.
Q1. Are you manufacturer or trading company?
A1. We are manufacturer in Wuxi, Jiangsu Province, P.R. China.
Q2. What’s your advantage as a film capacitor supplier?
l Professional team: we have more than 10 technicians in our R&D department, and the chief engineer has more than 40 years experience in film capacitor field.
l Advanced equipments: advanced finished product testing and spraying machines, dust-free winding workshop, high product quality with Six Sigma standard. And we will do AGING TEST before delivery, which will decrese failture rate for clients.
l One stop service: we also provide OEM and ODM service and good after sales service.
l Strong technical support: more than ten patents in the capacitors field, especially ISO/TS 16949/2009, which is for vehicles capacitors, such as: capacitor 80uf, film capacitor, DC link capacitor.
l High quality with competitive price.
l Acceptable of small order, MOQ is one piece.
l Short lead time, 21days.
