Applications
H.V current-limiting fuses type S is mainly used in AC50Hz,rated voltage 3.6~40.5KV,rated current up to 200A circuit for protection transformers and power equipments from overload and short-circuit.It can also be used with load switch,vacuum contact.
It conforms to IEC282-1,GB15166.2 and DIN standard.
Design Features
DIN HRC "S" type high voltage fuse for transformer protection:
1. According to bussmann DIN "S" type high performance back-up fuse
2. Comply with IEC282-1, DIN, BS
3. This fuse is intended to protect distribution networks and transformer, for indoor as well as outdoor use.
4. Any other specifications can be designed specially.
Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.

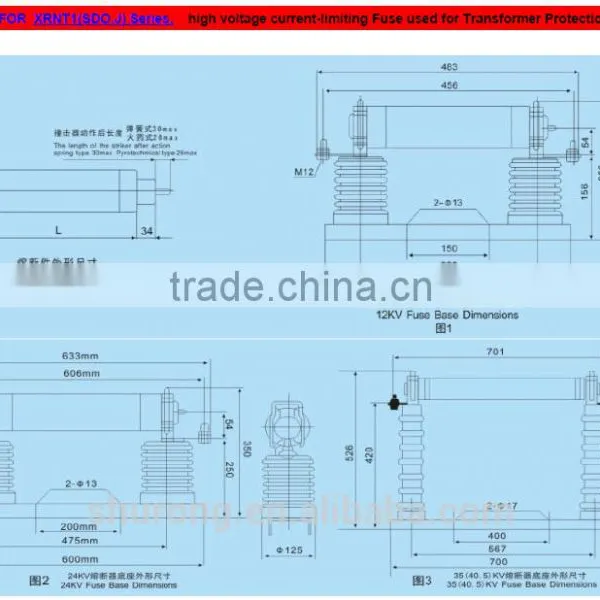

Dimensions
