Home > Electrical & Electronics > Breaker & Protector > Fuse > 12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse)

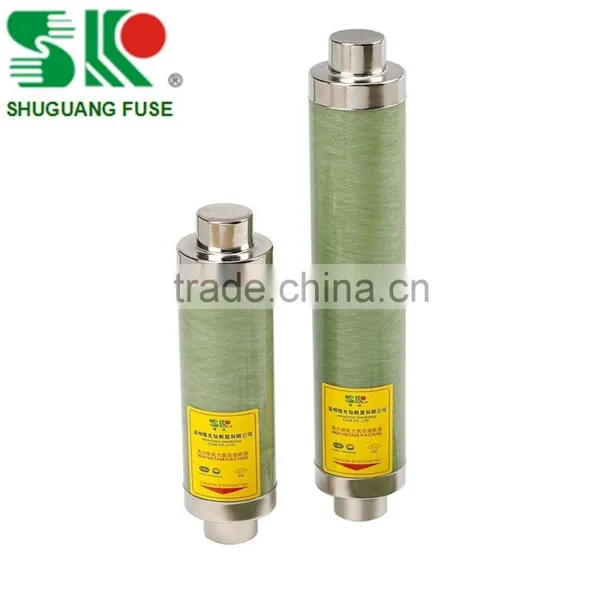

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse)

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) thumbnail-3

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) thumbnail-4

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) photo-1

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) photo-2

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) photo-3

12kv High Voltage HRC Current Limiting Fuse Use for Transformer Protection (Plug in Type Fuse) photo-4

US$ 6.9 - 27.5 MOQ: 30 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

XRNT1( type S )

Contact Supplier Request Quote Chat Now

Wenzhou Shuguang Fuse Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SR

Model Number XRNT1( type S )

Usage High Voltage

Breaking Capacity High

Safety Standards IEC

Applications

H.V current-limiting fuses type S is mainly used in AC50Hz,rated voltage 3.6~40.5KV,rated current up to 200A circuit for protection transformers and power equipments from overload and short-circuit.It can also be used with load switch,vacuum contact.
It conforms to IEC282-1,GB15166.2 and DIN standard.

Product Description

DIN HRC "S" type high voltage fuse for transformer protection:

1. According to bussmann DIN "S" type high performance back-up fuse

2. Comply with IEC282-1, DIN, BS

3. This fuse is intended to protect distribution networks and transformer, for indoor as well as outdoor use.

4. Any other specifications can be designed specially.

Foreign model	Department	Rated voltage(KV)	Rated current(A)	Rated breaking current(KA)	Diameter(mm) D	Length(mm) L1	Weight(kg)
SDOAJ	XRNT1	3.6 see figer 1	6.3,10,16,20,25,31.5,40	31.5	51	192	1.12
SDLAJ	XRNT1	7.2 see figer 1	6.3,10,16,20,25,31.5,40,50,63	31.5	51	292	1.47
SFLAJ	XRNT1	7.2 see figer 1	80,100,125,160	31.5	76	292	3.15
SDLAJ	XRNT1	12 see figer 1	6.3,10,16,20,25,31.5,40	31.5	51	292	1.47
SFLAJ	XRNT1	12 see figer 1	50,63,71,80,100	31.5	76	292	3.15
SKLAJ	XRNT1	12 see figer 1	125	31.5	76	292	3.15
SXLAJ	XRNT1	12 see figer 1	160,200	31.5	88	292	4.15
SDMAJ	XRNT1	24 see figer 2	6.3,10,16,20,25,31.5,40	31.5	51	442	2.7
SFMAJ	XRNT1	24 see figer 1	50,63,71,80,100	31.5	76	442	4.5
SKMAJ	XRNT1	24 see figer 1	125	31.5	76	442	4.5
SXMAJ	XRNT1	24 see figer 1	160	31.5	88	442	5.4
SDQAJ	XRNT1	40.5 see figer 3	3.15,6.3,10,16,20,25	31.5	51	537	2.9
SFQAJ	XRNT1	40.5 see figer3	31.5,40	31.5	76	537	5.51
SXQAJ	XRNT1	40.5 see figer 3	63	31.5	88	537

Note:under stipulated comdition,min.breaking current of fuses could be as high as 2.5~3 times than rated current.

Striker: N-without striker; A-powder type; D-spring type.

Dimensions

we have 15 years specializing produce fuse,so we have rich experience and strong technical on this line. Our company have advanced production machines and complete test equipment, all of our products are tested by authority and the result came to be up to the technical standard.

we assure of high quality provid,and try to make the big profit space for our any customer.

more details products welcome to require.
