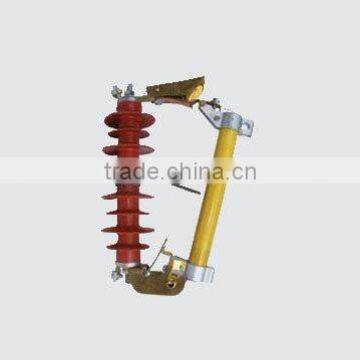

Silicone Rubber High Voltage Drop-out Fuse 12kV
US$ 27 - 30.5
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
HRW3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
HRW3
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Specifications
High Voltage Drop out FuseMaterial: silicone rubber
Leakage distance: 380mm
Certification:ISO9001:2008
Description
1. Type: fuse cutout, drop out fuse cutout HRW3
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. The series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type |
Rated voltage(kV) |
Rated current(kA) |
Breaking current(kA) |
Impulse voltage(BIL) |
Power-frequency withstand voltage(kV) |
Leakage distance(mm) |
Weight(kg) |
Dimension(cm) |
HRW3 |
12 |
100 |
6300 |
125 |
45 |
380 |
3.8 |
41*22*12 |
HRW3 |
12 |
200 |
12500 |
125 |
45 |
380 |
4.0 |
41*22*12 |
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
