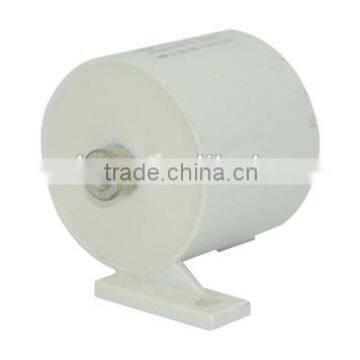

Polypropylene film AC Capacitor for power electronic equipment
Introduction:
•Aluminum round housing package, Sealed with epoxy resin;
•Copper nut / screw leads, insulated plastic cover positioning, easy installation;
•Large capacity, small size;
•Resistance to high voltage, with self-healing;
•High ripple current, high dv / dt withstand capability.
Application:
•Widely used in power electronic equipment used for the AC filter;
•In the high-power UPS, switching power supply, inverter and other equipment for the AC filter, harmonics and improve power factor control.
Installation &commissioning procedures
1. Do not touch capacitor terminals by hand directly while taking them.
2. Check Physically
3. Fixed capacitors
4. Ensure for correctness of supply voltage, frequency, temperature
5. Connect capacitor
6. Switch on supply
7. Check main supply voltage & current
8. Capacitor is commissioned
Storage conditions
1.Capacitors may not be store in corrosive atmospheres, particularly not when chlorides, sulfides, acids, lye, salts, organic solvents or similar substances are present.
2. It shouldn’t be located in particularly high temperature and high humidity, it must submit the following conditions(unchanging primal package):
Temperature: ≤35℃
Humidity: ≤80%RH, no dew allowed on the capacitor.
Storage time: ≤12months(from the date marked on the capacitor’s body or the label glued to the package)
FAQ:
Q : Are you a manufacturer or a trading company ?
A: We are a manufactuer specialized in metalized polypropylene film capacitor since 2011.
Q: How can I get some samples ?
A : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order. Q: Can your factory print or emboss my logo on the goods ?
A : Yes,we can print or emboss your owns logo on the goods or their packing box.
Q : What's your MOQ of this product?
A: MOQ is 1 pc ,if more,please check with us firstly.
Q: What's your delivery time?
A : It is about 21-30 days, if your goods required urgent, please contact us firstly.
