Help Center4 Channels D1 H.264 Vehicle DVR Support HDD and SD Card and Operated With USB Mouse
Related Products
-
4CH D1 GPS, 3G HDD Bus DVRUS$ 300 - 420MOQ: 1 Set -
4 CH D1 HDD TFT Vehicel/Bus/ Mobile DVRUS$ 144 - 155MOQ: 1 Piece
-
4 Channels H.264 Mobile DVR With Muti-luanguages and GPS, Wi-Fi OptionUS$ 135 - 165MOQ: 20 Sets
-
4-CH Vehicle CCTV DVR/ Car Driving RecorderUS$ 119 - 130MOQ: 1 Piece
-
4 Channels HDD DVR With Remote Monitoring(for House, Office, Garage, Supermarket Etc.)US$ 164 - 175MOQ: 1 Piece
Specifications
1.Support HDD and SD Card, USB device2.H.264 compression format
3.Muti-lantuages menu
4.Operation mode: USB mouse, IR remote
4 channels D1 H.264 SD card and HDD mobile DVR
Model:VR8800N
H.264 compression format; SD CARD/HDD/USB flash drive; Max memory: 2TB; 4 channels Audio & Video; D1/HD1/CIF/QCIF; 1~30fps (optional); Manual Record/Scheduled Record(Regular; Alarm; Motion detect; Video loss; Video blind); IR remote(Support external IR sensor)/USB mouse; Internet interface: RJ45 Port; Cycle recording;
Main Features:
1. Unique design with lock to protect from illegal accessing;
2. H.264 main profile Video compression format;
3. Can work with power supply ranging from DC8V to DC36V;
4. Supports Manual Record, Motion Detect and scheduled Record;
5. Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
6. Supports 4 channels "Video & Audio" recording and playback simultaneously;
7. Supports 4 channels "alarm input" and 1 channel "alarm output";
8. Video clips can be saved onto either SD card or HDD; Supports SD card up to 32GB and hard disk up to 2TB;
9. Video file can be backed up in format H.264 or AVI;
10. Supports VGA high definition video/audio output;
11. Supports Mouse & IR remote control for easy operation;
12. Can work with 4 cameras simultaneously, and power all 4 cameras directly;
13. Multiple language options, covers almost all main languages all over the world
Technical Specifications:
System |
Main processor |
High performance embedded microprocessor |
Operation system |
Embedded LINUX operation system |
|
User Interface |
display |
1/4 image display |
Languages |
Multi languages, more than 15 species of languages |
|
Operation |
Operation mode |
USB mouse, control panel, IR remote control |
Video |
Frame rate |
1-25fps (PAL) or 1-30fps (NTSC) for each channel; |
Image quality |
D1/HD1/CIF/QCIF for each Channel |
|
Playback image quality |
D1/HD1/CIF/QCIF for each Channel |
|
compression format |
H.264 |
|
|
Record And Playback |
Recording mode |
Manual Record/Scheduled Record(Regular; Alarm; Motion detect; Video loss; Video blind) |
Recording storage |
HDD, SD card, USB Flash drive |
|
Backup mode |
USB flash drive, Movable HDD, USB interface devices |
|
Port |
Video input |
4 channel |
Video output |
1 channel |
|
Audio input |
4 channel |
|
Audio output |
1 channel |
|
Alarm input |
4 channel |
|
Alarm output |
1 channel |
|
Network port |
RJ45 10M/100M |
|
PTZ control port |
1 RS485 |
|
USB port |
2* USB2.0 ports for USB mouse and movable devices |
|
Hard disk port |
1 SATA port, Support 2.5” SATA HDD, MAX capacity:2TB |
|
Other |
Power supply |
8-36V external power supply |
Power consumption |
<15W (without hard disk) |
|
Working temperature |
0°C~+55°C |
|
Working humidity |
10%-90% |
|
Air pressure |
86kpa-106kpa |
|
Dimension |
180mm (L) x 50mm (W) x 194mm (H) |
Applications:
Vehicle surveillance for truck, bus, taxi cab, private car, school bus, police patrol car, etc.

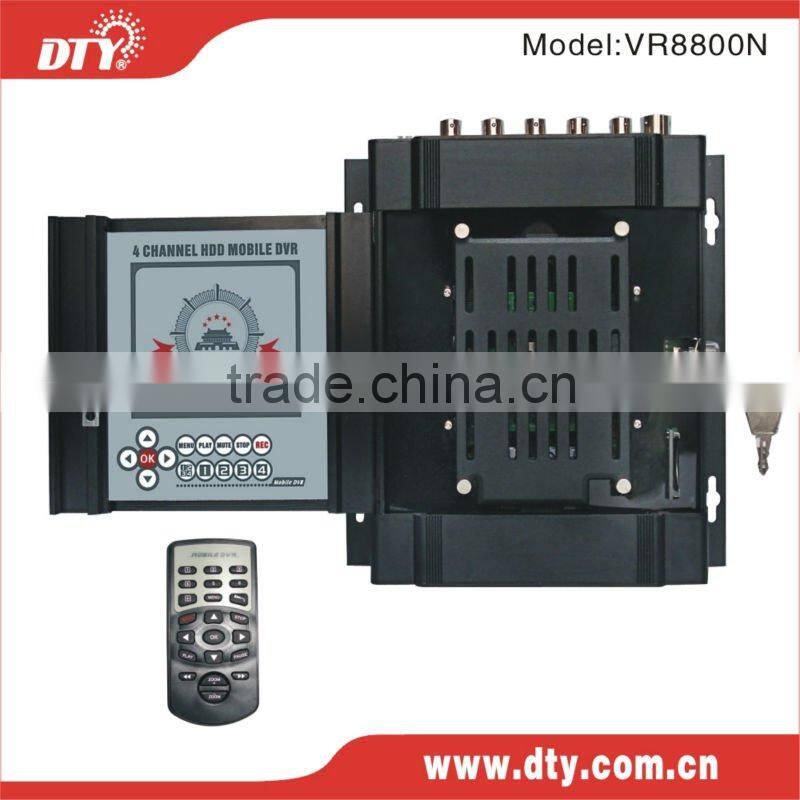

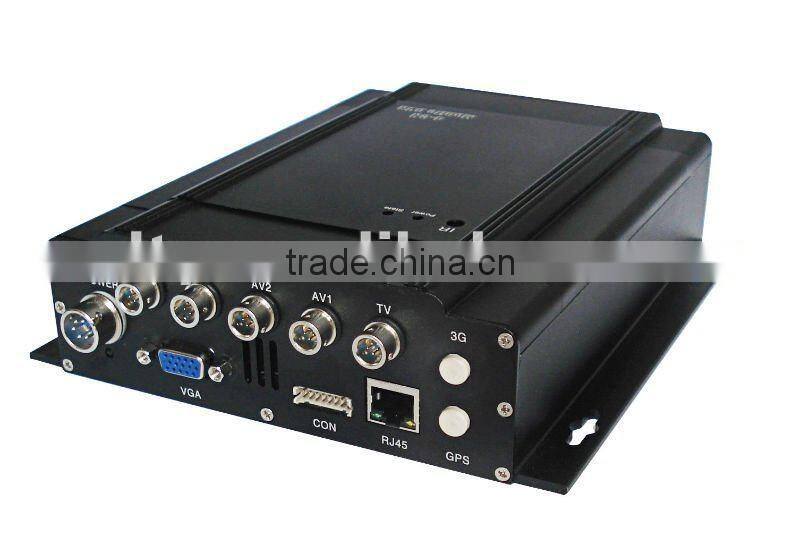

DVR Picture:

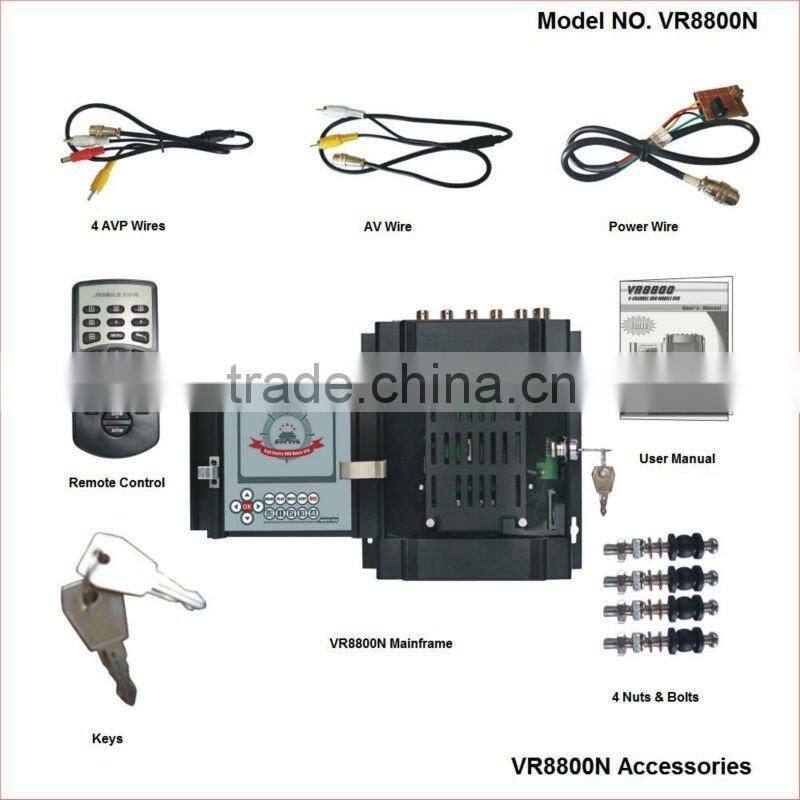

Parts list:

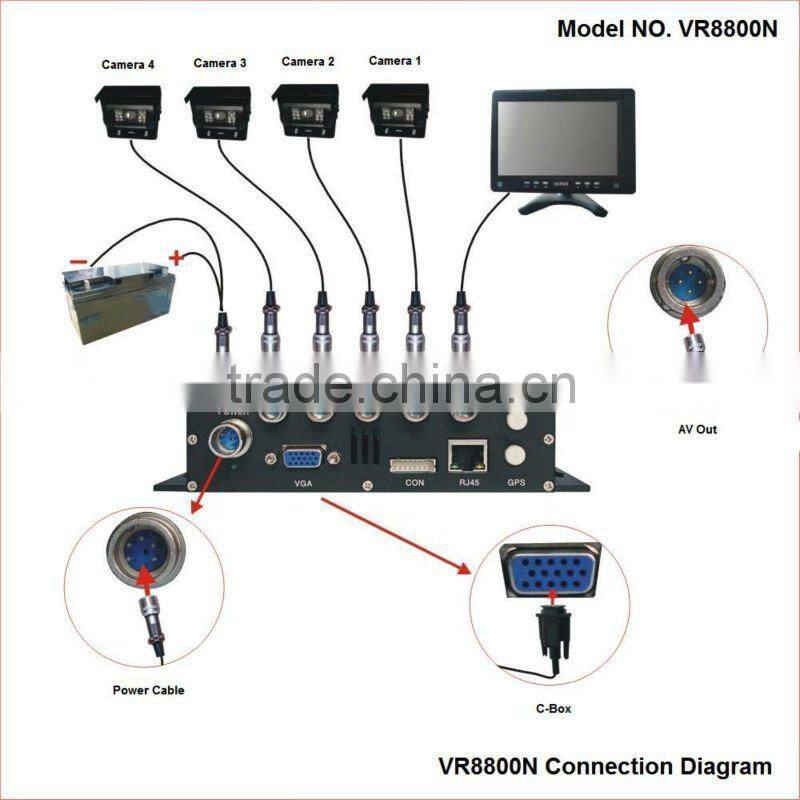

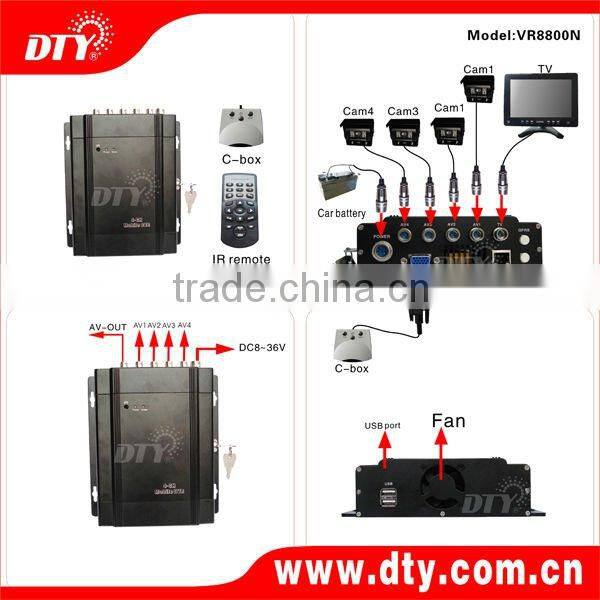

Connection diagram:

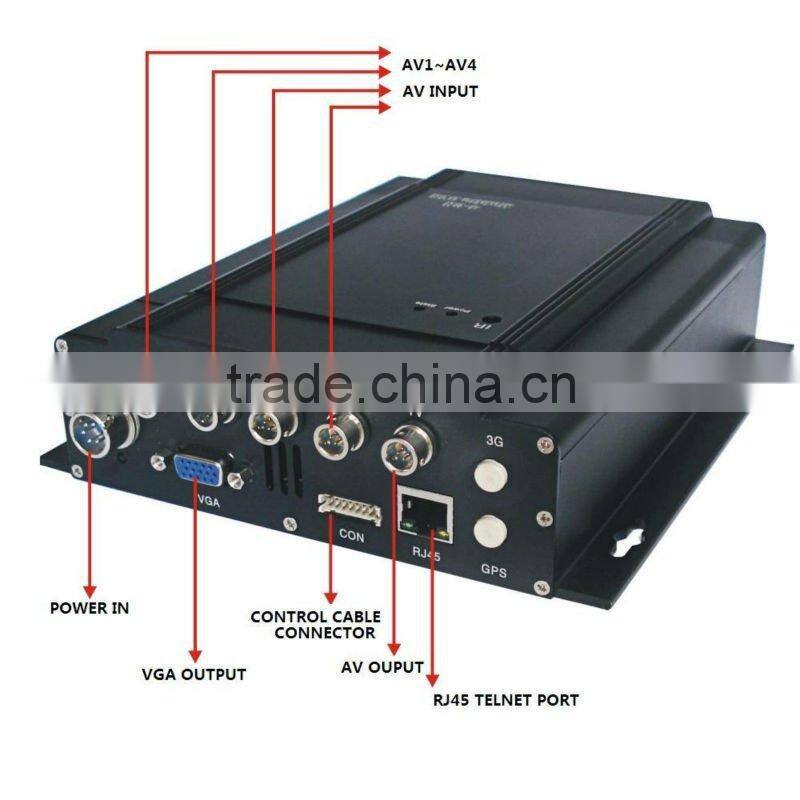

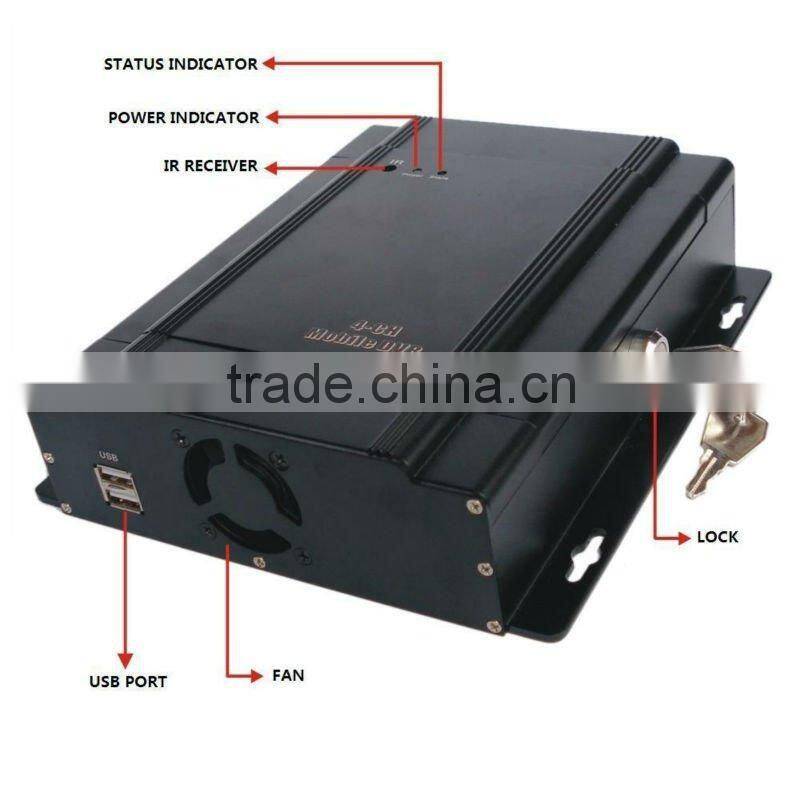

Structure:
Player interrface:
