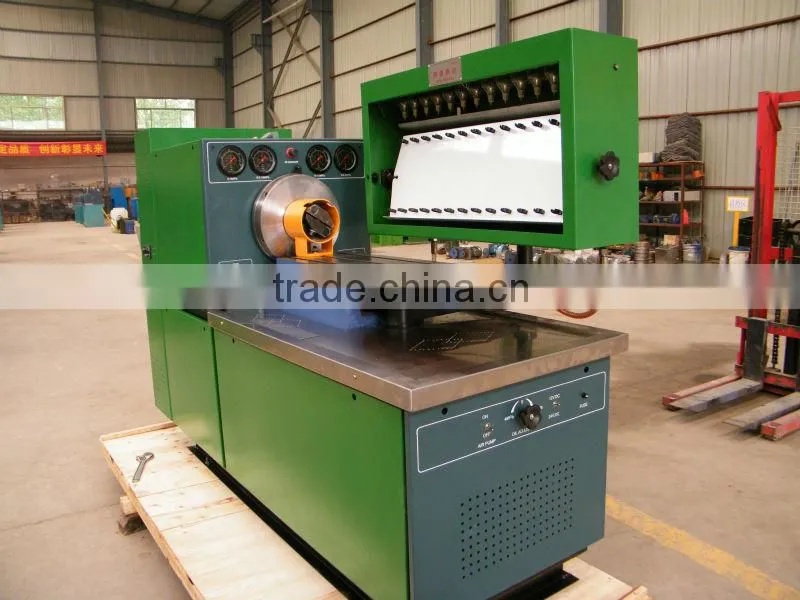

Fuel Injection Pump Test Bench

Fuel Injection Pump Test Bench thumbnail-1
Fuel Injection Pump Test Bench photo-1
US$ 9,774 - 11,077 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
380V/220V, 380/220V/3 phase
Power:
optional
Contact Supplier Request Quote Chat Now
Taian HD Power Testing Control Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Engine Analyzer
Voltage 380V/220V, 380/220V/3 phase
Power optional
Certification ISO9001:2008
Applicable Models diesel engine
Place of Origin Shandong, China
Brand Name HD
Model Number HTS279

Specifications

Frequency :50/60Hz
Power:22KW
Oil tank cpacity:60L
Speed range :0-4000rpm/min

HTS (279)

Features: O Enhanced damping rack, high strength "three T" type lengthened worktable.

              O Suitable for high-power internal combustion engine fuel injection pump test

Functions

1 Test each cylinder's delivery at various rotation speeds

2 Static check each cylinder fuel supply time

3 Check the mechanical governor performance

4 Distribution pump electromagnetic valve test

5 Check the pneumatic governor and booster compensator  performance

6 Measuring distribution pump oil return oil quantity

7 Advance angle detection function(Optional)

8 Injection pump sealing tests

Technical parameters:

Speed range :     0-4000rpm

Measuring cup:   45ml,150ml,260ml,360ml,900ml(Optional)

Fuel tank capacity:60L

Accuracy of the test oil filtration: 3μ

Supply pump pressure:     High pressure: 0-4 Mpa  Low pressure:0-0.4Mpa

Pressure:                0-0.3Mpa

Center height:     125mm

Electricity:     380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase

Output power:   15Kw,18.5Kw,22Kw,30Kw,37Kw(The more high power be custom)

Physical size:   2300*980*1900mm

Net Weight:    1200Kg



fuel injection pump test benchfuel injection pump test bench
