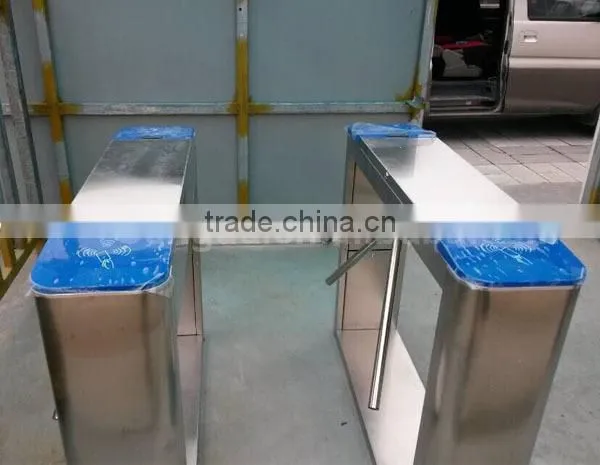

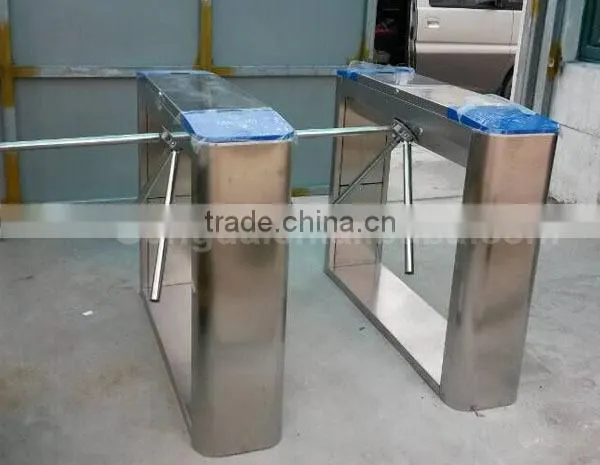

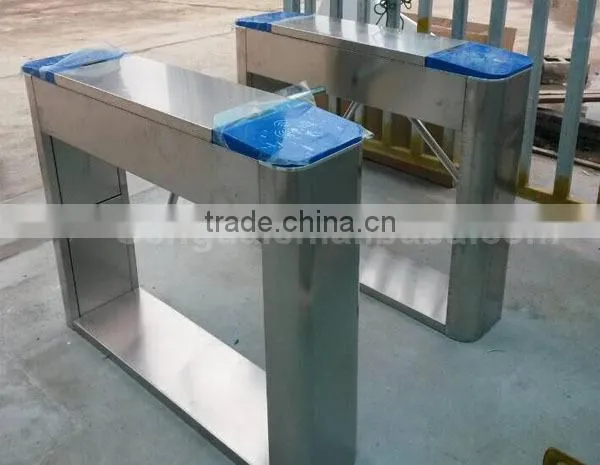

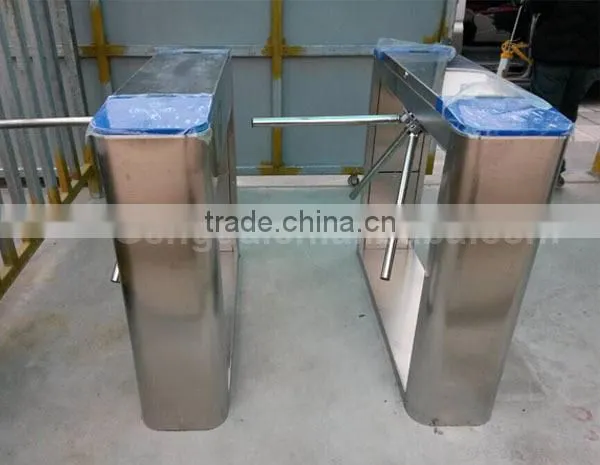

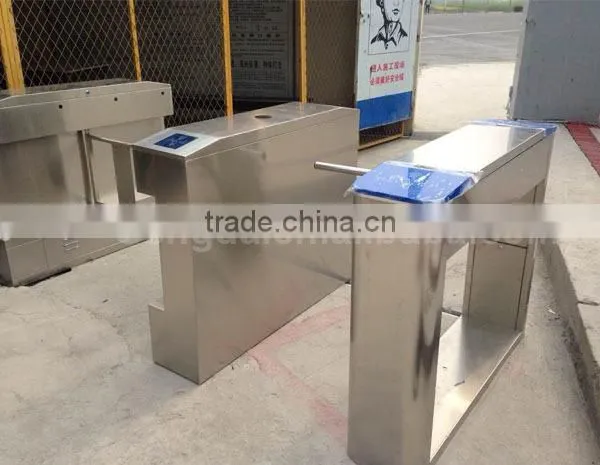

RFID access control turnstile antenna,Tripod turnstile
turnstile antenna features
- Turnstile made of 304 stainless steel/plastic spraying
- Bi-direction pass
- Arms auto drop when power off
- Arms auto rise up when power on and auto stop on abstacle
- Traffic light indicator
- RFID interface
- Photoelectric inspection
- Passenger counter (optional)
- If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator
turnstile antenna specifications: .
Brand name |
turnstile antenna |
Housing material |
304# stainless steel, corosion resistant |
Dimension |
1200*220*990mm |
Channel width |
500--600 mm |
Lifetime |
5,000,000 times |
Control mode |
semi-automatic / hand movement |
Passage way |
one-way / bothway |
Working environments |
indoor / outdoor |
Power source |
AC220V |
Frequency |
50 Hz |
Working temperature |
-15°C—75°C |
Working humidity |
0~95%RH coagulation free |
Pass speed |
30 ≤ 40 persons/min |
Input interface |
COM switch signal |
Communication Connection |
RS485 |
railing-off against power off |
Yes |
Waterproof and Dustproof |
above IP32 |
Working noise |
less than 65 db |
turnstile antenna Application
- Industrial zones
- Administrative buildings
- Recreation centers
- Amusement parks
- Financial institutions
- Government agencies
- Airports
- Bus and railway stations
- Offices.
- Subway station
Shanghai Gengda Electronic Technology Co., Ltd. is founded in 2009.We are a private enterprise professionally engaged in security system products in wordwide.Research,production,market and service are integrated one unit.Our categories are tripod turnstile,flap turnstile,swing turnstile,access control system,smart card,electronic lock,control board,power box,road barrier, Anti-static tester and all accessories.What a surprise,we are searching new security field actively.
