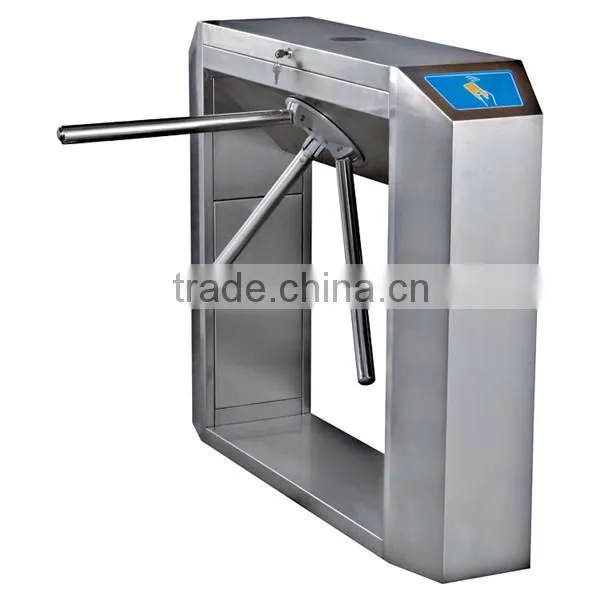

AC220V/AC110V security entry turnstile,RS485 tripod turnstile
security entry turnstile gate features
- Turnstile made of 304 stainless steel/plastic spraying
- Bi-direction pass
- Arms auto drop when power off
- Arms auto rise up when power on and auto stop on abstacle
- Traffic light indicator
- RFID interface
- Photoelectric inspection
- Passenger counter (optional)
- If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator
security entry turnstile gate specifications: .
Brand name |
security entry turnstile gate |
Housing material |
304# stainless steel, corosion resistant |
Dimension |
1200*220*990mm |
Channel width |
500--600 mm |
Lifetime |
5,000,000 times |
Control mode |
semi-automatic / hand movement |
Passage way |
one-way / bothway |
Working environments |
indoor / outdoor |
Power source |
AC220V |
Frequency |
50 Hz |
Working temperature |
-15°C—75°C |
Working humidity |
0~95%RH coagulation free |
Pass speed |
30 ≤ 40 persons/min |
Input interface |
COM switch signal |
Communication Connection |
RS485 |
railing-off against power off |
Yes |
Waterproof and Dustproof |
above IP32 |
Working noise |
less than 65 db |
security entry turnstile gate Application
- Industrial zones
- Administrative buildings
- Recreation centers
- Amusement parks
- Financial institutions
- Government agencies
- Airports
- Bus and railway stations
- Offices.
- Subway station
-OEM and ODM service available.
-2 years warranty gurantee; free maintenance to all defective items within warranty period
-Provide technical support.
-Fast delivery:
within 3 days for sample order after payment is collected
7-15 days of lead time for bulk order after payment
-Large discount to big order or sole agent
Shanghai Gengda Electronic Technology Co., Ltd. is founded in 2009.We are a private enterprise professionally engaged in security system products in wordwide.Research,production,market and service are integrated one unit.Our categories are tripod turnstile,flap turnstile,swing turnstile,access control system,smart card,electronic lock,control board,power box,road barrier, Anti-static tester and all accessories.What a surprise,we are searching new security field actively.
