2.5T Fork Lift Truck With Japan Engine Cheap for Sale

2.5T Fork Lift Truck With Japan Engine Cheap for Sale thumbnail-1
2.5T Fork Lift Truck With Japan Engine Cheap for Sale photo-1
US$ 7,000 - 14,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF25
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 2500kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 122mm
Overall Dimensions 3639x1160x2071mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Advantages

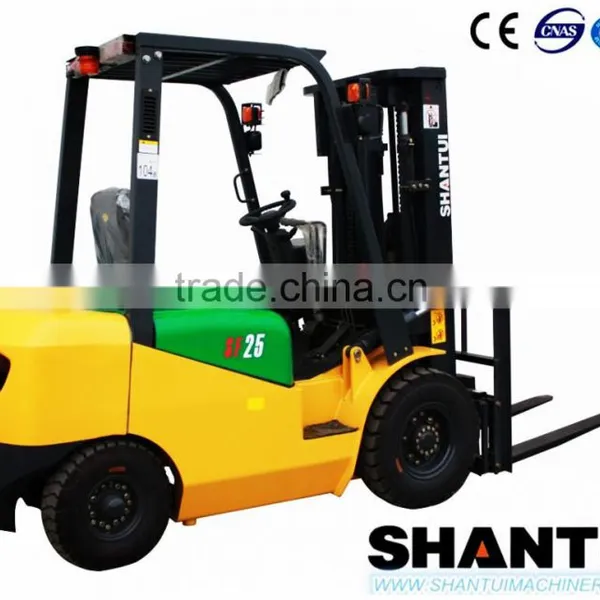

Shantui 2.5Ton diesel forklift (SF25)equipment with Original Japan made ISUZU C240 engine, hydraulic transmission,USA EATON hydraulic assisted steering valve,SHIMADZU oil pump,full suspension chassis.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
ISUZU C240

Rated Output
34.5/2500
Kw/rpm
Rated Torque
139/1800
N·m/rpm
No.of cylinder
4

Bore×stroke
86×102
mm
Displacement
2.369
L


Dimensions
Lifting Height
3000
mm
LxWxH(with Fork)
3639x1160x2071
mm
Turning radius
                             2320
mm
Mast tilt angle(F/R)
6/12
Degree


Performance
Travel speed(full load/no load)
19/20
Km/h
Lift speed (with load)
450
mm/sec
Max.gradeability
20
%
Self weight
3500
Kg


Wheel&tires
Front
7.00-12-12PR

Rear
6.00-9-10PR

Wheelbase
1600
mm
Min.ground clearance(mast)
110
mm
Detailed Images

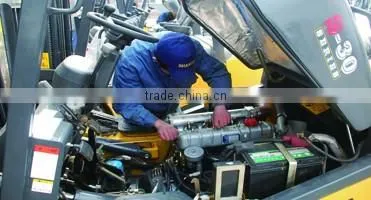

Japan made ISUZU C240 Engine.

Europe stage Ⅲ A Emission Standards Low Noize,Low pollution

Automatic Transmission.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Key off.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Metal pedal.

Two-side designed, metal material, stable and durable.

Engine Hood.

Easy to open, convenient for mainterance.

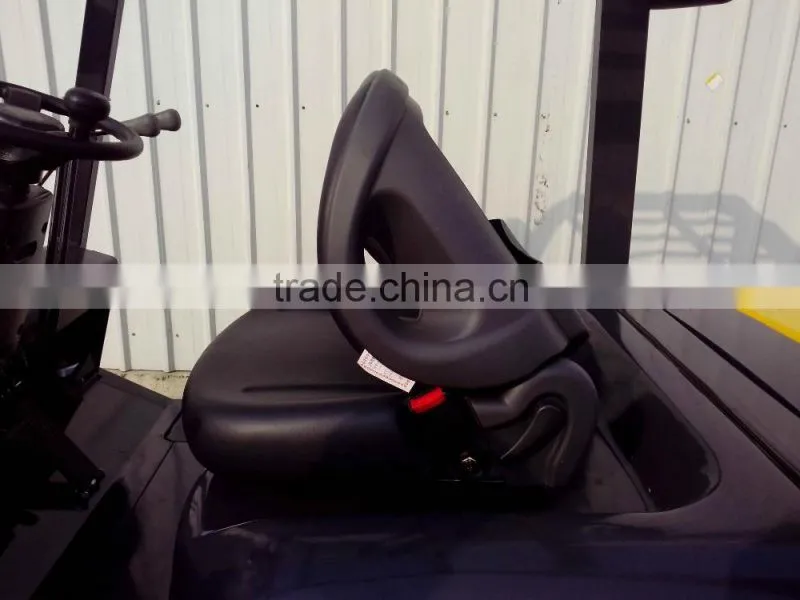

Luxury seat with belt.

Suspension seat with safe belt. Safety, comfortable, and adjustable

Pre-air cleaner.

Better protect the machine from bad air condition. Sand, dust are not problems.

Inside layout.

Tidy inside layout, the wiring harness layout is in good order, convenience for recognize and maintain.

Battery.

Side designed battery. Easy to maintain.

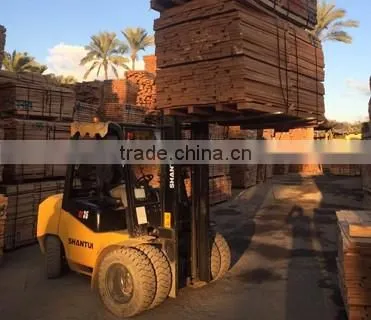

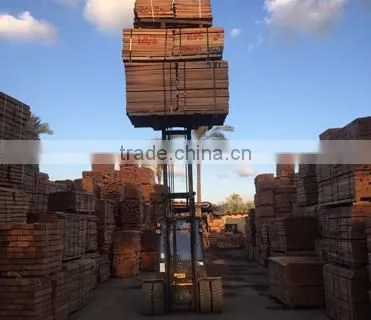

Working Performance

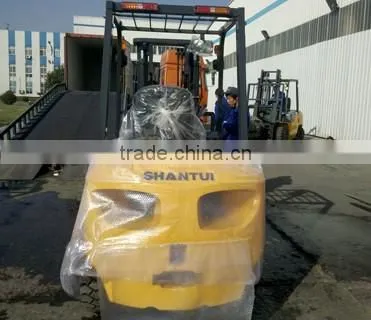

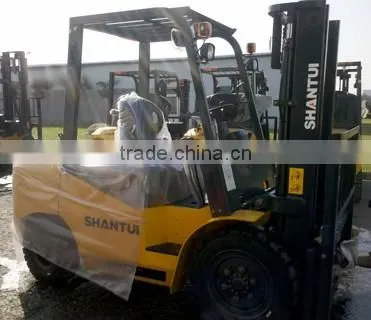

Packing & Delivery
Shipping
By Container,2 sets per 20 feet container,6 sets per 40 feet container.
Packing
Nude Packing,Four tires fixed
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
8.7CBM
Weight
3880KGS
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
