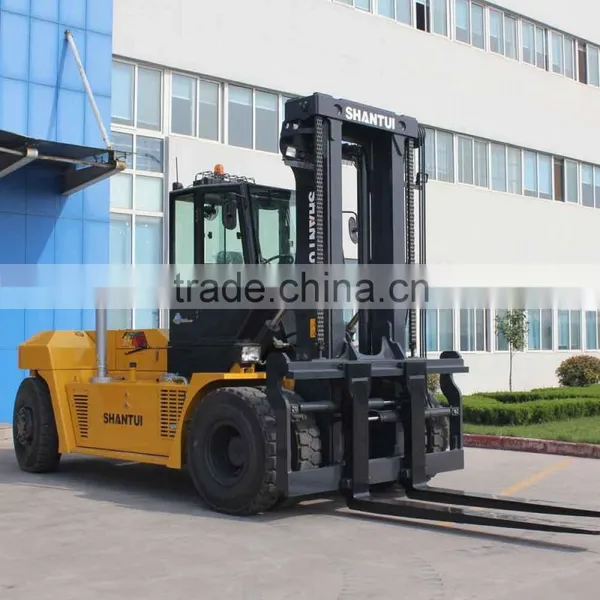

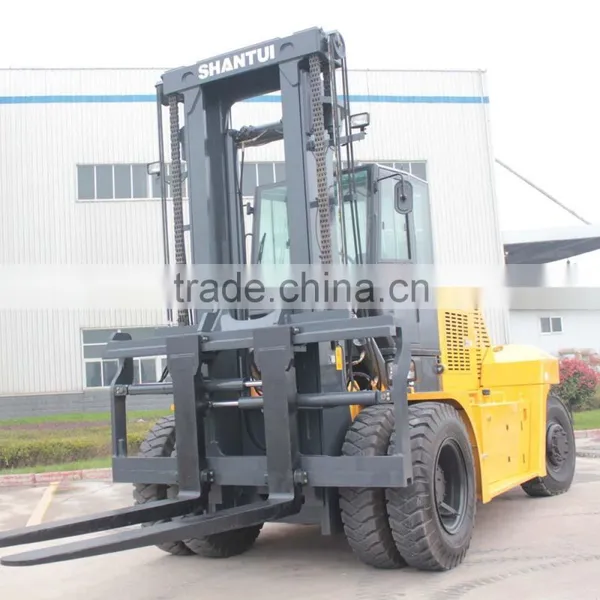

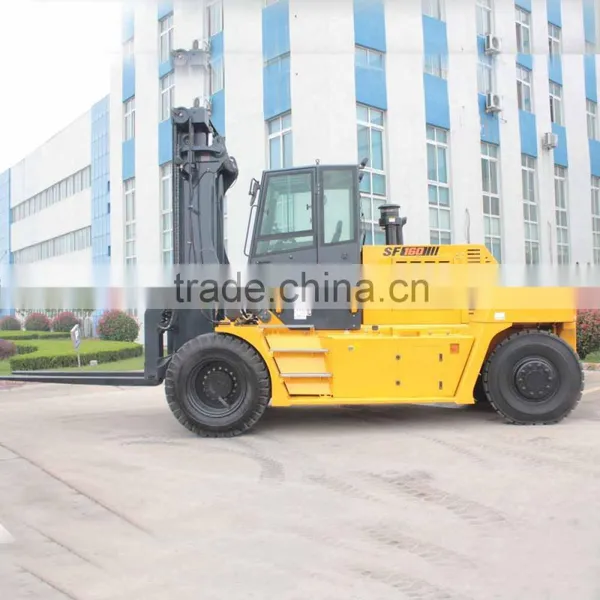

16 Ton Capacity Diesel Forklift

16 Ton Capacity Diesel Forklift thumbnail-1
16 Ton Capacity Diesel Forklift thumbnail-2
16 Ton Capacity Diesel Forklift thumbnail-3
16 Ton Capacity Diesel Forklift photo-1
16 Ton Capacity Diesel Forklift photo-2
16 Ton Capacity Diesel Forklift photo-3
US$ 1 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF160
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 16000kg
Max. Lifting Height 6000mm
Min. Lifting Height 3500mm
Fork Length 2400mm
Fork Width 200mm
Overall Dimensions 7850x2560x3750mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Advantages

Shantui16Ton USA engine forklift with forklift cameraequipment with China best Weichai engine, hydraulic transmission,wet brake drving axle,cabin and Air conditioner,electric control side shift and fork posioner.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
WP6G175

Rated Output
129/2200
Kw/rpm
Rated Torque
700/1500~1700
N·m/rpm
No.of cylinder
6

Bore×stroke
105X130
mm
Displacement
6.75
L


Dimensions
Lifting Height
3500
mm
LxWxH(With/Without Fork)
7850(5450)x2560x3750
mm
Turning radius
5000
mm
Mast tilt angle(F/R)
6/10
Degree


Performance
Travel speed(full load/no load)
28/30
Km/h
Lift speed (with /without) load
350/380
mm/sec
Max.gradeability
28
%
Self weight
23000
Kg


Wheel&tires
Front
12.00-20-20PR

Rear
12.00-20-20PR

Wheelbase
3750
mm
Min.ground clearance(mast)
210
mm
Detailed Images

Comfortable Drving Room.

Suspension Seat,joystick operating bar,Cabin and AC ,Radio and Fire extingusher.

Easy Operate.

Hydraulic assisted steering wheel,electric control bar

Front Working Lamp.

Shantui 16Ton forklift equipment with high quality front working lamp which makes the machine working at night.

Ergonomics Design.

When Design the forklift,Shantui pay attention to the ergonomics.Such like Anti-Slip Pedal,Wide view mast.

Long forks with multiple Function.

Using A 2.4Meter Long forklift,can be adjusted by posioner and side shifter.

Easy control system.

All the control bar were easy find,makes the operator easy to control.

Working Performance
Packing & Delivery
Shipping
By Lorry,From the factory to port ,by Ro-Ro shipment when shipping.
Packing
Nude Packing,forks disassembled.
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
55CBM
Weight
23000KGS
