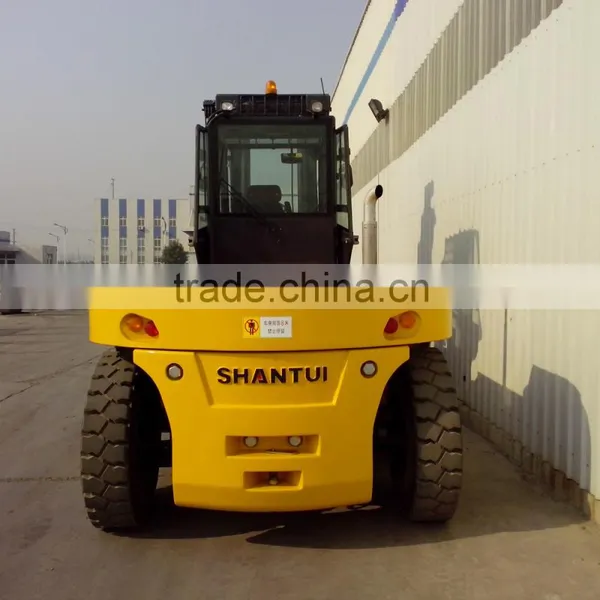

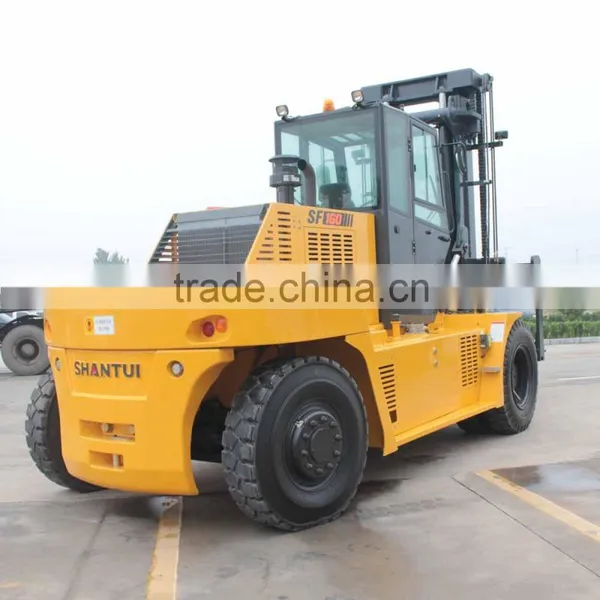

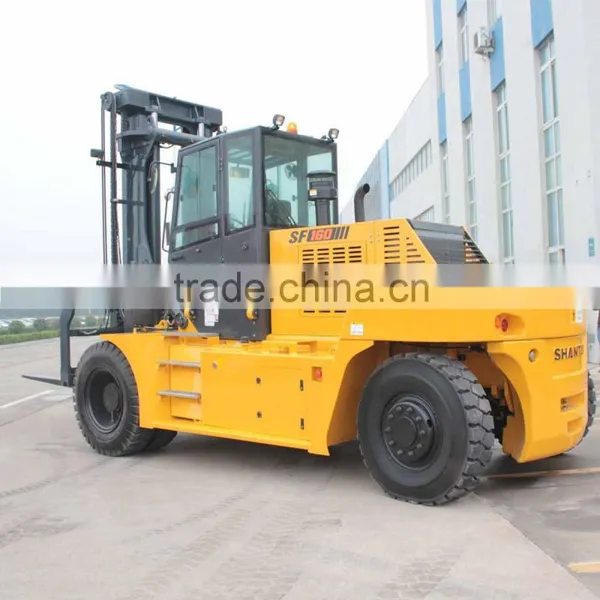

China best sales 12Ton Diesel Forklift Weichai engine

Name: China best sales 12Ton Diesel Forklift Weichai engine
Brand: SHANTUI
Price: USD $1 - 100,000 / Set

FOB Price

USD $1 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao/Shanghai/Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	SHANTUI
Model Number:	SF160	Type:	Powered Pallet Truck	Power Souce:	Diesel Engine
Rated Loading Capacity:	16000kg	Max. Lifting Height:	6000mm	Min. Lifting Height:	3500mm
Fork Length:	2400mm	Fork Width:	200mm	Overall Dimensions:	7850x2560x3750mm
Certification:	ISO9001/ISO14001/CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Product Advantages

Shantui16.0Ton diesel forklift (SF160)equipment with China best Weichai engine, hydraulic transmission,wet brake drving axle,cabin and Air conditioner,electric control side shift and fork posioner.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Engine	Model	WP6G175
	Rated Output	129/2200	Kw/rpm
	Rated Torque	700/1500~1700	N·m/rpm
	No.of cylinder	6
	Bore×stroke	105X130	mm
	Displacement	6.75	L
Dimensions	Lifting Height	3500	mm
	LxWxH(With/Without Fork)	7850(5450)x2560x3750	mm
	Turning radius	5000	mm
	Mast tilt angle(F/R)	6/10	Degree
Performance	Travel speed(full load/no load)	28/30	Km/h
	Lift speed (with /without) load	350/380	mm/sec
	Max.gradeability	28	%
	Self weight	23000	Kg
Wheel&tires	Front	12.00-20-20PR
	Rear	12.00-20-20PR
	Wheelbase	3750	mm
	Min.ground clearance(mast)	210	mm

Detailed Images

Comfortable Drving Room.

Suspension Seat,joystick operating bar,Cabin and AC ,Radio and Fire extingusher.

Easy Operate.

Hydraulic assisted steering wheel,electric control bar

Front Working Lamp.

Shantui 16Ton forklift equipment with high quality front working lamp which makes the machine working at night.

Ergonomics Design.

When Design the forklift,Shantui pay attention to the ergonomics.Such like Anti-Slip Pedal,Wide view mast.

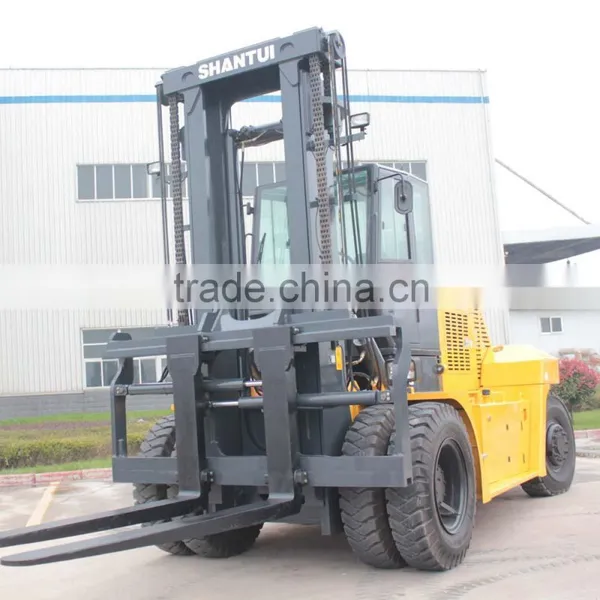

Long forks with multiple Function.

Using A 2.4Meter Long forklift,can be adjusted by posioner and side shifter.

Easy control system.

All the control bar were easy find,makes the operator easy to control.

Working Performance

Packing & Delivery

Shipping	By Lorry,From the factory to port ,by Ro-Ro shipment when shipping.
Packing	Nude Packing,forks disassembled.
No. of packets	Forklift 1 set Fork 2 pcs. Tool box 1 Set
Measurement	55CBM
Weight	23000KGS

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
