2Ton LPG Forklift With Nissan K21 Engine for Sales

2Ton LPG Forklift With Nissan K21 Engine for Sales thumbnail-1
2Ton LPG Forklift With Nissan K21 Engine for Sales photo-1
US$ 1 - 14,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF20Y
Type Powered Pallet Truck
Power Souce Gasoline Engine
Rated Loading Capacity 2000kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 3574x1160x2071mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas


Product Advantages

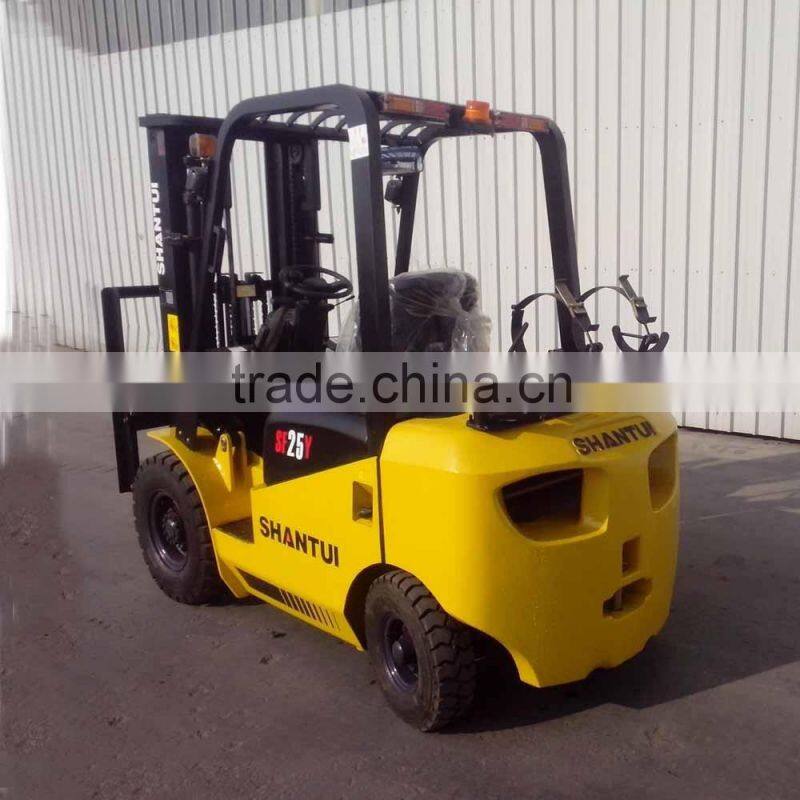

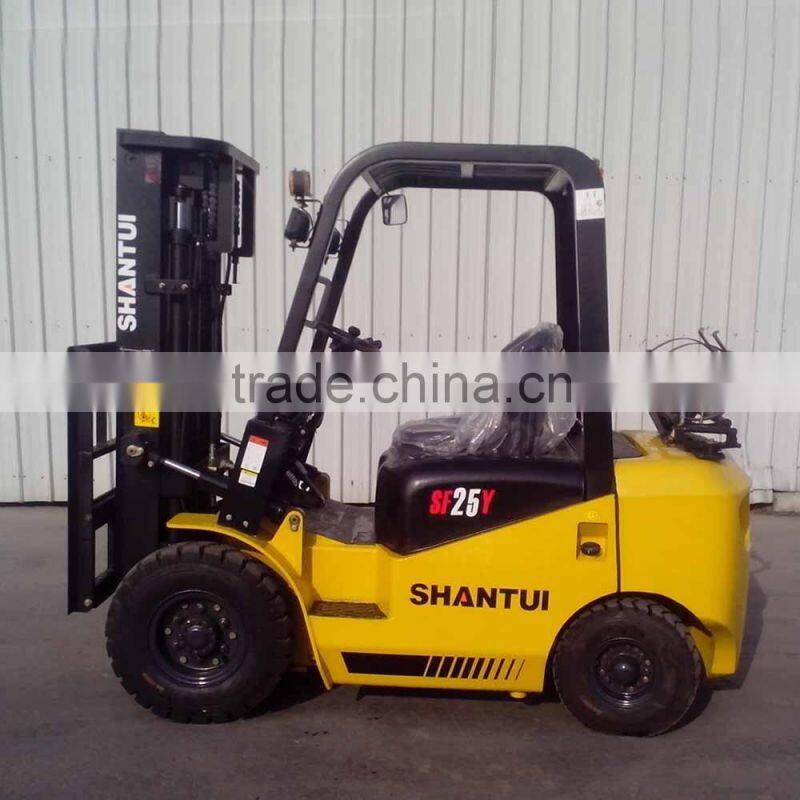

Shantui 2.0Ton LPG forklift (SF20Y)equipment with Nissan K21 engine, hydraulic transmission,USA EATON hydraulic assisted steering valve,SHIMADZU oil pump,full suspension chassis.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
                         Nissan K21

Rated Output
31.2/2250
Kw/rpm
Rated Torque
143.7/1600
N·m/rpm
No.of cylinder
4

Bore×stroke
89×83
mm
Displacement
2.065
L


Dimensions
Lifting Height
3000
mm
LxWxH(with Fork)
3574x1160x2071
mm
Turning radius
2172
mm
Mast tilt angle(F/R)
6/12
Degree


Performance
Travel speed(full load/no load)
19/20
Km/h
Lift speed (with load)
470
mm/sec
Max.gradeability
20
%
Self weight
3550
Kg


Wheel&tires
Front
7.00-12-12PR

Rear
6.00-9-10PR

Wheelbase
1600
mm
Min.ground clearance(mast)
85/90
mm

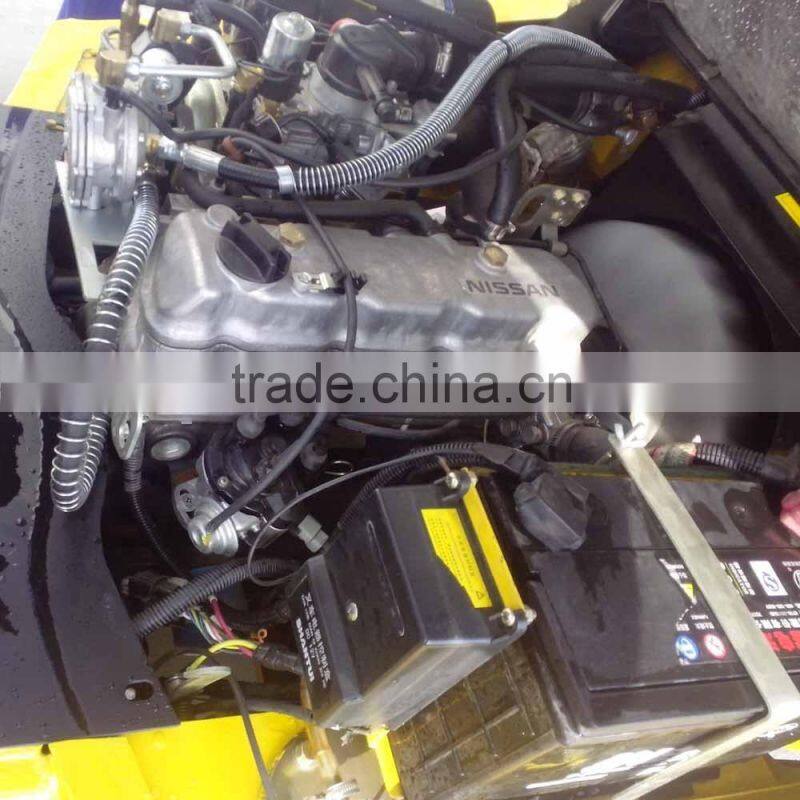

Nissan K21 Engine.

Equipment with Japan Original Nissan K21 engine,Europe stage Ⅲ emission standards.Low Noize,Low Pollution.

LPG Tank Optional.

Gasoline & LPG Dual fuel engine,Lpg Bracket and Lpg Tank is Optional

Key off.

When you want to stop the machine,just turn off the key,the forkift will be stop safely.

Anti-Slip Pedal.

In order to protect the operator slipping on the machine,use a Anti-slip pedal.

Easy Manitenance.

he engine hood is easy open,can be locked by itsself.It is Convenience for mantenance.

Suspension Seat.

High Quality Suspension Seat,With a safe belt,Protect the operator.The back rest canbe adjust,very comfortable.

Pre-air cleaner.

Suitable for bad working condition, keep the engine at the best working conditon.Optional.

Inside layout.

All the oil pipes and electirc lines were fixed on the chassis,

Maintenance Free Battery.

Lifetime maintenance free storage battery is adopted to facilitate users all over the world.



Shipping
By Container,2 sets per 20 feet container,5 sets per 40 feet container.
Packing
Nude Packing,Four tires fixed
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
8.5CBM
Weight
3550KGS


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
