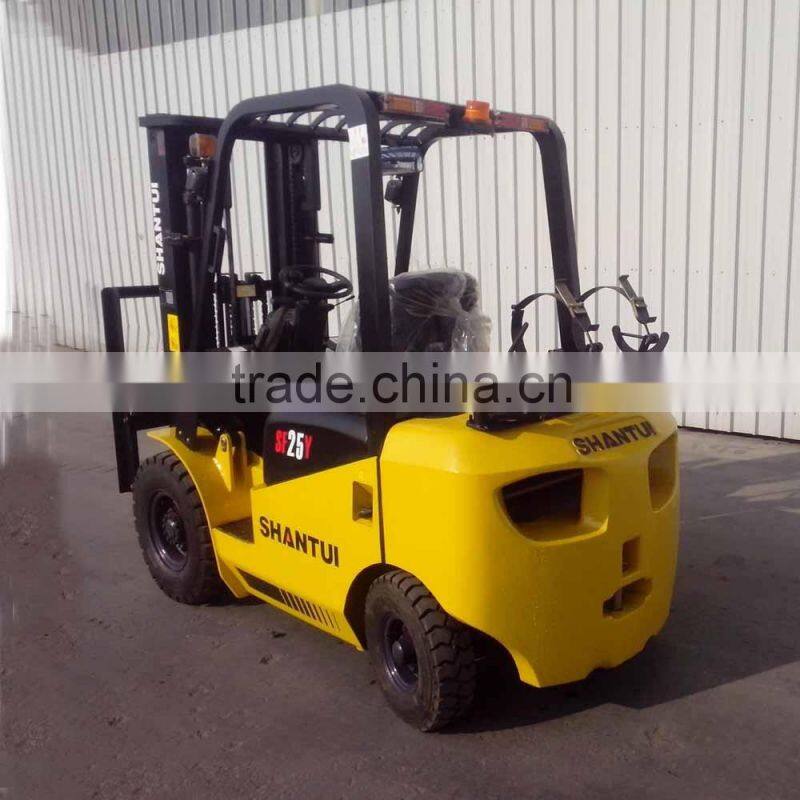

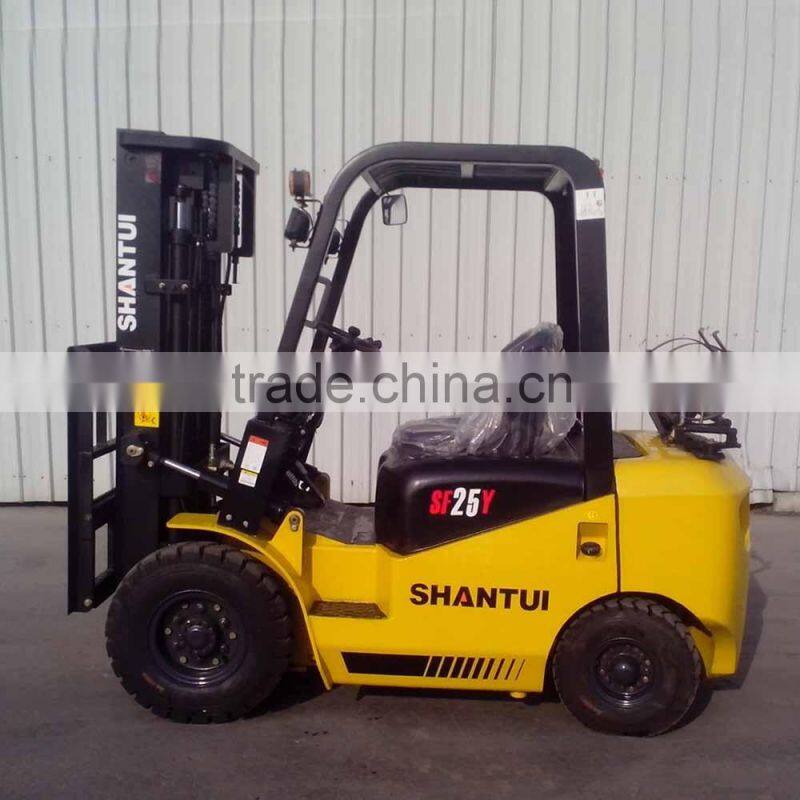

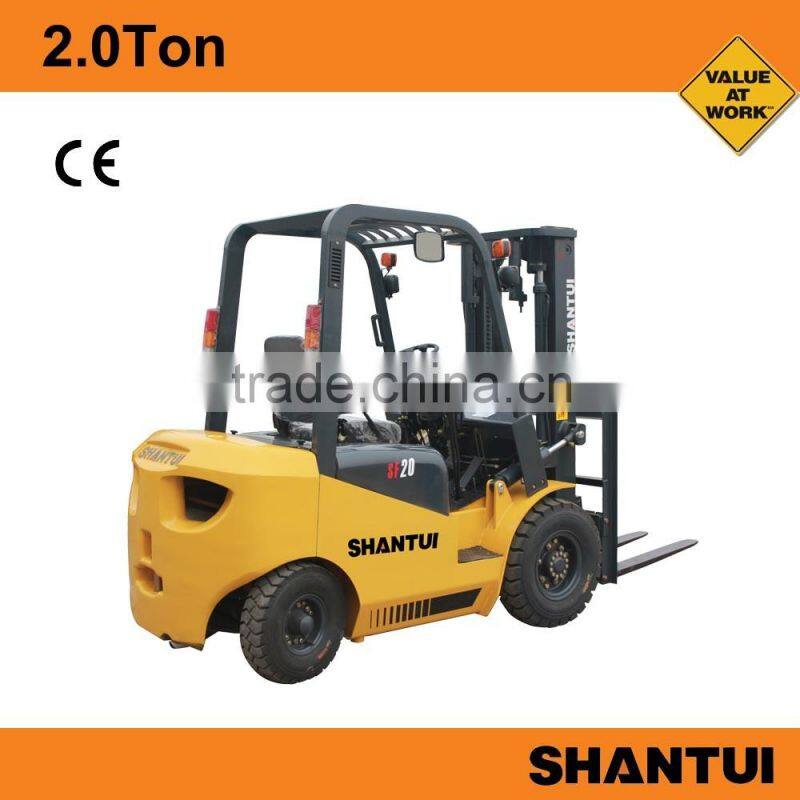

SHANTUI SF20Y 2.0Ton Gas & Lpg Forklift With Nissan K21 Engine

Name: SHANTUI SF20Y 2.0Ton Gas & Lpg Forklift With Nissan K21 Engine
Brand: SHANTUI
Availability: InStock

FOB Price

US$ 11000.00 - 12000.00 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	SHANTUI	Model Number	SF20Y
Type	Powered Pallet Truck	Power Souce	Gasoline Engine
Rated Loading Capacity	2000kg	Max. Lifting Height	8000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	122mm	Overall Dimensions	3600x1160x2140mm
Certification	ISO9001/ISO14001/CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Advantages

Shantui 2.0Ton Gasoline forklift (SF20Y)equipment with Original Japan Nissan engine, hydraulic transmission,USA EATON hydraulic assisted steering valve,SHIMADZU oil pump,full suspension chassis.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Engine	Model	NISSAN K21
	Rated Output	31.2/2250
	Rated Torque	143.7/1600
	No.of cylinder	4
	Bore×stroke	89×93
	Displacement	2.065
Dimensions	Lifting Height	3000	mm
	LxWxH(With/Without Fork)	3600(2530)x1160x2115	mm
	Turning radius	2320	mm
	Mast tilt angle(F/R)	6/12	Degree
Performance	Travel speed(full load/no load)	19/20	Km/h
	Lift speed (with /without) load	420/450	mm/sec
	Max.gradeability	20	%
	Self weight	3450	Kg
Wheel&tires	Front	7.00-12-12PR
	Rear	6.00-9-10PR
	Wheelbase	1600	mm
	Min.ground clearance(mast)	105	mm

Detailed Images

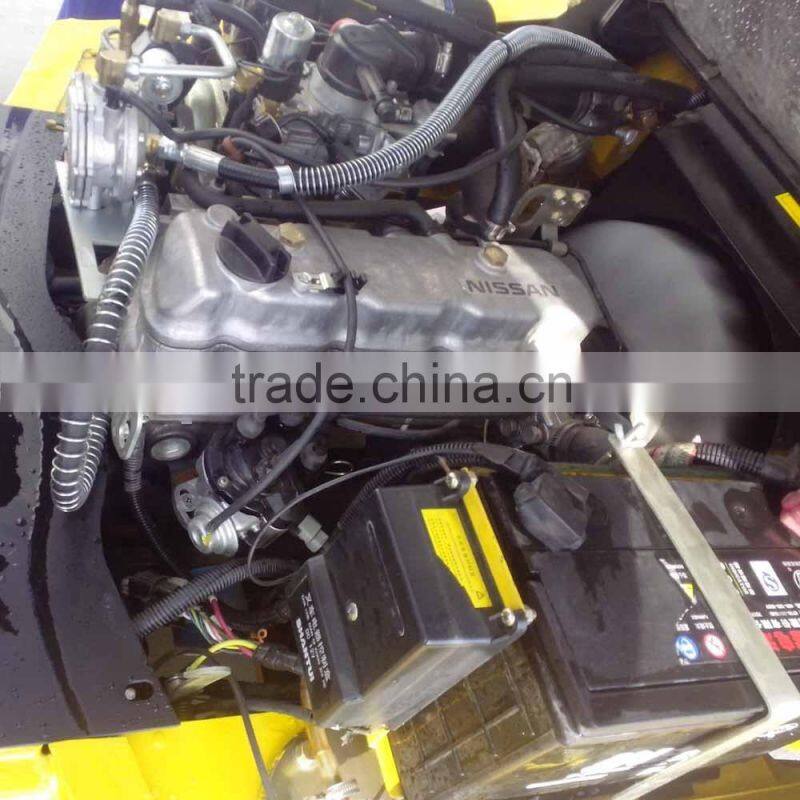

Nissan K25 Engine.

Equipment with Japan Original Nissan K25 engine,Europe stage Ⅲ emission standards.Low Noize,Low Pollution.

LPG Tank Optional

Gasoline & LPG Dual fuel engine,Lpg Bracket and Lpg Tank is Optional.

Key off.

When you want to stop the machine,just turn off the key,the forkift will be stop safely.

Anti-Slip Pedal.

In order to protect the operator slipping on the machine,use a Anti-slip pedal.

Easy Manitenance.

The engine hood is easy open,canbe lock selfly.Convenience mantenance.

Suspension Seat

High Quality Suspension Seat,With a safe belt,Protect the operator.The back rest canbe adjust,very comfortable.

Pre-air Cleaner.

Suitable for bad working condition,keep the engine at the best working conditon.Optional.

Inside Layout.

All the oil pipes and electirc lines were fixed on the chassis,

Maintenance Free Battery

Lifetime maintenance free storage battery is adoped to facilitate users all over the world.

Working Performance

Packing & Delivery

Shipping	By Container,4 sets per 20 feet container,6sets per 40 feet container.
Packing	Nude Packing,Four tires fixed
No. of packets	Forklift 1 set Fork 2 pcs. Tool box 1 Set
Measurement	7.0CBM
Weight	3830KGS

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
