DIY Home telephone burglar alarm system GS-T06

Specifications

Home telephone burglar alarm system
1.Security system
2.Support Ademco protocol
3.10 Second Voice message

DIY Home telephone burglar alarm system GS-T06



Description and Main functions

1.Blue LCD screen and keypad backlight looks nice and upgraded

2.Touch keypad improves use comfort; convenient operation at night with backlight

3.Concisely displays date, day of week, time and current armed status

4.Supported languages: English, German, Russian, French, Danish and more to meet different market needs

5.Up to 5 groups of telephone numbers can be pre-stored and then dial in sequence when alarm

6.Can record voice message up to 10 seconds in host and then can be heard via phone/mobile when answering the alarm call

7.Intelligent logic analysis technology, corresponding zone number and sensor name can be showed in SMS

8.29 wireless zones (each zone supports up to 4 sensors) + 2 dedicated zones for remote (each zone supports up to 4 remotes or wireless keypad)

9.4-ways of arm/disarm: remote controller, built-in keypad, wireless keypad (optional device), phone call

10.Auto priority call by cutting off the busy line and occupy line when alarm

11.Listening in function to hear what is happening

12.Non-volatile chip, information stored automatically when off power

13.Built-in high capacity Li-ion battery, AC/DC workable, alert of low backup battery power and no external power

14.Learning sensors to alarm host, very easy operation

15.Stores up to 100 alarm records and 100 arm/disarm records

16.Supports CID uploading to CMS (center monitoring station)

17.433MHz and 86MHz optional

18.Extended functions can be added:

• 8 wired zones
• Open and closed status (of door and window) monitoring and alert
• Wireless ding-dong doorbell
• Add wired siren

Technical Parameter

Input power :                          12V  DC/1A

Alarm output :                         12V/300mA

Working current :                     40mA

Built in battery :                       7.2V/600mAH

Working temperature  :              -10~ +70°C

Storage Temperature  :               -20~ +80°C

Wireless receiving frequency  :   315MHz/433MHz

Wireless receiving sensitivity  :  -100db

Working voltage:110~240VAC
Operating power: 9-15VDC

Standard package list,

One alarm host

One wireless door/window magnetic contact

One PIR motion sensor

One wireless strobe siren(more than 110DB)

Two remote controllers

One AC adapter

One English user manual



Package information

32*32*11(cm)----one set gift box

30*29*28(cm)----three sets cargo

46*32**31(cm)----five sets cargo

58*46*32(cm)----ten sets cargo



Up side of GS-G80AE as below





Back side of GS-G80AE as below:

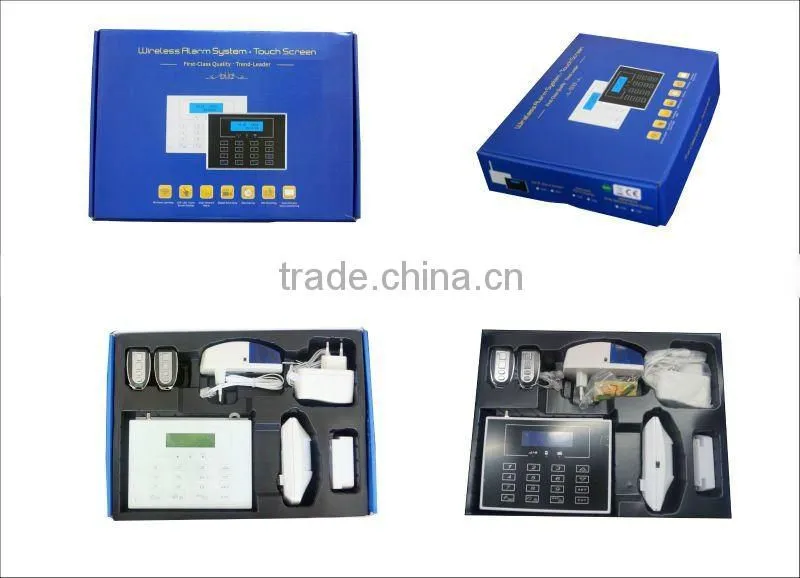

The standard package of GS-G80AE as Below:



The Extra alarm accessories as below can be learned to GS-G80AE







The gift box of GS-G80AE as below:

Attention:



1.The appearance of GS-T06 ( includes alarm sensors for GS-T06 ) are customized for European market,with nice design and good quality.



2.The alarm sensors of  GS-T06 can be 868mhz.



3. GS-T06 can support CID Protocol,but need work with GSM alarm receiver to connect with monitoring station.



4. GS-T06 has two color for optional,White color and black color.Before ordering,distributor should confirm color with Golden Security sales person.

5. GS-T06 has English/French/Spanish/Russia/ German/ Danish/ Dutch language version

6.The LCD display of  GS-T06 is Word stock screen, so every operation step is by English words.
