Domestic Home PSTN Phone Line Alarm System With Spanish Language Suitable for Mexico and Chile Market

Specifications

Domestic Home PSTN phone line alarm system with Spanish language suitable for Mexico and Chile market

Description and Main functions

1. LED display, 15 wireless zones, can work with up to 60 wireless sensors (each zone supports up to 4 sensors)

2.You can connect wired & wireless PIR sensor, door/window contact, smoke detector, gas leakage detector, glass break sensor, emergency button etc. Each wireless zone can match numberless wireless sensors.

3. With 13 working LEDs and control keyboard on the mainframe.

4.You can record your voice in the mainframe in advance and will call you or the police and play the voice while alarming.

5.Can Auto-dial 6 phone No. while alarming.

6.You can call the mainframe at any time and listen what happened in the alarm area,and you can arm/disarm and program the system by control keyboard on the mainframe & phone

7.With Human voice guide and easy to operate.

8.With voice reminder & password protection while the system is working.

9. Remote monitor and check the alarm zones by phone.

10. Arm mode: immediate arm, delayed arm and partial arm.

11. Can set the ring times of alarm mainframe. When there is coming call, the mainframe can get through it automatically after checking the preset ring times.

12. Can choose to set/cancel the alarm function of cutting telephone line.

13. Switch to Backup rechargeable battery automatically when power is failure or cut by intruder.

11. When the system alarms, it can report and follow up the latest alarm zones.

14. Can send alarm signals to monitoring center through telephone network, such as the police station.

Technical Parameter

Input power : 12V DC/1A

Alarm output : 12V/300mA

Working current : 40mA

Built in battery : 7.2V/600mAH

Working temperature : -10~ +70°C

Storage Temperature : -20~ +80°C

Wireless receiving frequency : 315MHz/433MHz

Wireless receiving sensitivity : -100db

Working voltage:110~240VAC
Operating power: 9-15VDC

Standard package list,

One alarm host

One wireless door/window magnetic contact

One PIR motion sensor

One wireless strobe siren(more than 110DB)

Two remote controllers

One AC adapter

One English user manual

Package information

32*32*11(cm)----one set gift box

30*29*28(cm)----three sets cargo

46*32**31(cm)----five sets cargo

58*46*32(cm)----ten sets cargo

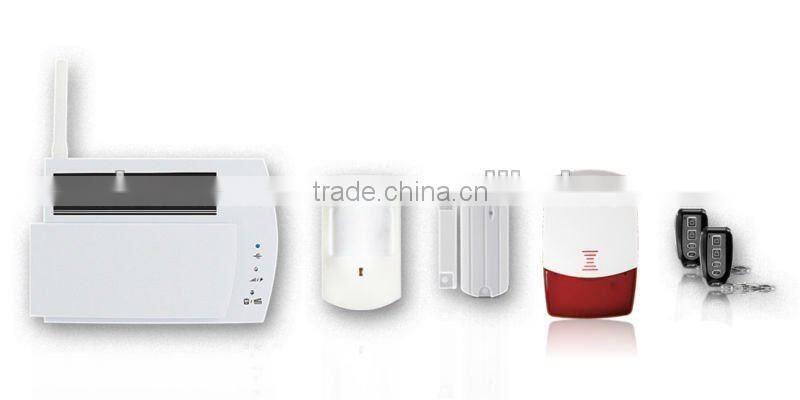

The standard package of GS-T01A as below:

The alarm accessories worked with GS-T01A as below:

The gift box of GS-T01A as below:
