SHANTUI 1t To 3.5t Forklift With DC Motor

Name: SHANTUI 1t To 3.5t Forklift With DC Motor
Brand: SHANTUI
Availability: InStock

FOB Price

US$ 5,000 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	SHANTUI	Model Number	SF25S
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	2500kg	Max. Lifting Height	8000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	122mm	Overall Dimensions	3445x1160x2130mm
Certification	ISO9001/ISO14001/CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Advantages

Shantui 2.5Ton electric forklift (SF25S)equipment Zapi Controller,Full Ac Driving & Lifting Motor, LED display instrument,automatic transmission, hydraulic assisted steering valve,Large-capacity Battery for long working hours,Advanced high efficiency controlling system,Low Heat & Noise.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Battery & Charger	Battery Voltage/Capacity	48V/600Ah	V/Ah
	Battery Charger	380~440V/50Hz	V/Hz
	Battery Weight	1120	Kgs
	Driving Motor	11.75	KW
	Lifting Motor	10	KW
Dimensions	Lifting Height	3000	mm
	LxWxH(With/Without Fork)	3445(2375)x1160x2130	mm
	Turning radius	2050	mm
	Mast tilt angle(F/R)	6/12	Degree
Performance	Travel speed(full load/no load)	12/14	Km/h
	Lift speed (with /without) load	265	mm/sec
	Max.gradeability	14	%
	Self weight	4250	Kg
Wheel&tires	Front	7.00-12-12PR
	Rear	18X7-8-14PR
	Wheelbase	1500	mm
	Min.ground clearance(mast)	140	mm

Detailed Images

Large capacity Battery.

ZiBO Torch Brand High quality battery.

Large capacity,long working hours.

Automatic Transmission.

Electric control standard,the user canbe operate the lever by finger.

Safety Button.

In case any danger occurs,just press the button,the machine will be stopped immedicately.

High Quality Controller

Shantui electric forklift adopts world-class Curtis Or Zapi Controller to ensure excellent performance.

Full AC Motor

Excellent Driving & Lifting AC motor,Free Of Maintenance.

LCD Instrument

Interface friendly interactive multi-function Liquid Crystal Display With Password Setting Function.

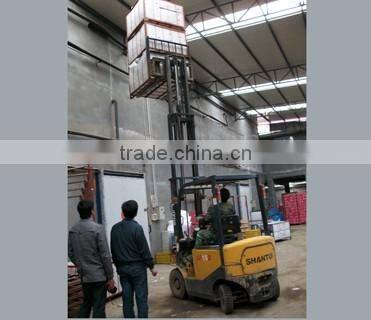

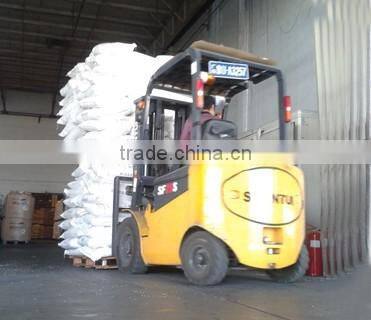

Working Performance

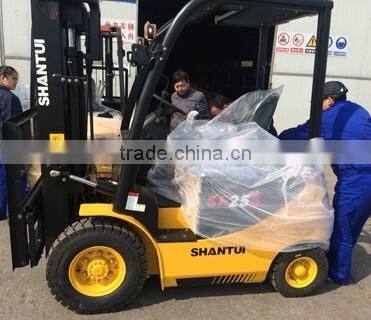

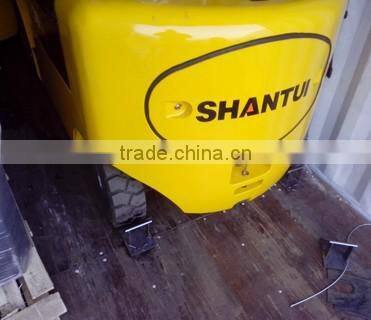

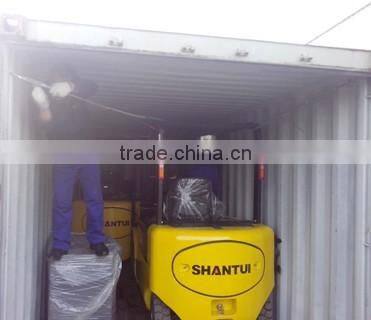

Packing & Delivery

Shipping	By Container,2 sets per 20 feet container,5 sets per 40 feet container.
Packing	Nude Packing,Four tires fixed
No. of packets	Forklift 1 set Fork 2 pcs. Tool box 1 Set Battery Charger 1Set
Measurement	7.0CBM
Weight	4250KGS

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
