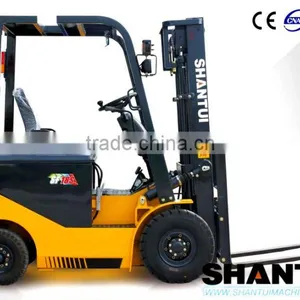

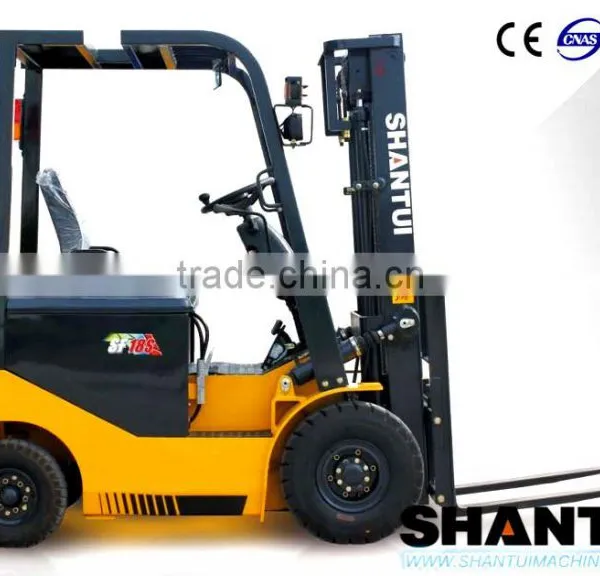

Shantui four wheel China electric fork lift with DC motor

Name: Shantui four wheel China electric fork lift with DC motor
Brand: SHANTUI
Price: USD $5,000 - 15,000 / Set

FOB Price

USD $5,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao/Shanghai/Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	SHANTUI
Model Number:	SF18S	Type:	Powered Pallet Truck	Power Souce:	AC Motor
Rated Loading Capacity:	1800kg	Max. Lifting Height:	6000mm	Min. Lifting Height:	3000mm
Fork Length:	920mm	Fork Width:	100mm	Overall Dimensions:	3137x1100x2090mm
Certification:	ISO9001/ISO14001/CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Product Advantages

Shantui 1.8Ton electric forklift (SF18S)equipment Zapi Controller,Full Ac Driving & Lifting Motor, LED display instrument,automatic transmission, hydraulic assisted steering valve,Large-capacity Battery for long working hours,Advanced high efficiency controlling system,Low Heat & Noise.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Battery & Charger	Battery Voltage/Capacity	48V/495Ah	V/Ah
	Battery Charger	380~440V/50Hz	V/Hz
	Battery Weight	875	Kgs
	Driving Motor	7.5	KW
	Lifting Motor	9.2	KW
Dimensions	Lifting Height	3000	mm
	LxWxH(With/Without Fork)	3137(2217)x1100x2090	mm
	Turning radius	1900	mm
	Mast tilt angle(F/R)	6/12	Degree
Performance	Travel speed(full load/no load)	11/12	Km/h
	Lift speed (with /without) load	280	mm/sec
	Max.gradeability	15	%
	Self weight	3180	Kg
Wheel&tires	Front	6.5-10-10PR
	Rear	5.00-8-8PR
	Wheelbase	1380	mm
	Min.ground clearance(mast)	125	mm

Detailed Images

Large capacity Battery.

ZiBO Torch Brand High quality battery.

Large capacity,long working hours.

Automatic Transmission.

Electric control standard,the user canbe operate the lever by finger.

Safety Button.

In case any danger occurs,just press the button,the machine will be stopped immedicately.

High Quality Controller

Shantui electric forklift adopts world-class Curtis Or Zapi Controller to ensure excellent performance.

Full AC Motor

Excellent Driving & Lifting AC motor,Free Of Maintenance.

LCD Instrument

Interface friendly interactive multi-function Liquid Crystal Display With Password Setting Function.

Working Performance

Packing & Delivery

Shipping	By Container,4 sets per 20 feet container,6 sets per 40 feet container.
Packing	Nude Packing,Four tires fixed
No. of packets	Forklift 1 set Fork 2 pcs. Tool box 1 Set Battery Charger 1Set
Measurement	6.0CBM
Weight	3050KGS

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
