Specifications
SD22
More power, greater efficiency
Product features

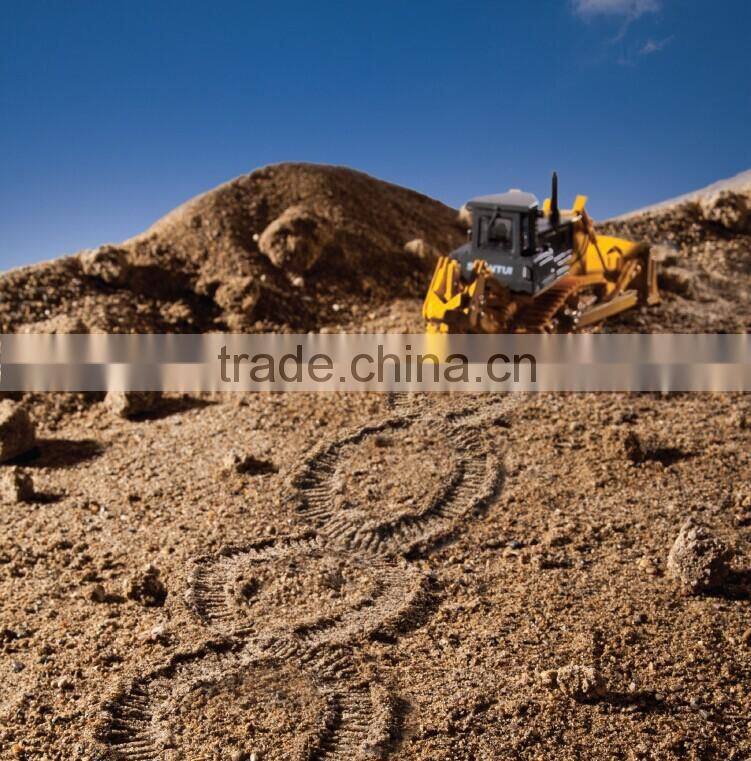

Koma'su Shantui bulldozer spare parts for sale The SD22 is a large horsepower, advanced technology bulldozer with a Cummins 855C engine delivering high
torque yet low fuel consumption. An exhaust turbocharger ensures uninterrupted performance at altitudes up to
3200m. Hydraulic drive and control technology deliver reliable performance and easy control.
Engine model: Cummins NT855-C280S10
Rated power: 162 kW/1800 rpm
Operating weight: 23.4 t
Rated power 162 kW
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Piston displacement 14.01 L
Min. fuel consumption 205 g/kW·h
Maximum torque 1030 N·m@1250rpm
ENGINE
Torque converter 3-element, 1 stage, 1 phase
Transmission Planetary gear, multi-disc clutch, hydraulically connected, forced lubrication
Main drive Spiral bevel gear, splash lubrication, single-stage speed reduction
Steering clutch Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering brake Wet, floating, direct on-off hydraulic inter-linking operation
Final drive 2-stage speed reduction of spur gear, splash lubrication
POWER
TRANSMISSION
SYSTEM
Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.5 km/h 0~11.2 km/h
Reverse 0~4.3 km/h 0~7.7 km/h 0~13.2 km/h
TRAVEL
SPEED
Type Swing type of sprayed beam, suspended structure of equalizer bar
Carrier rollers 2 each side
Track rollers 6 each side
Track type Assembled, single-grouser
Width of track shoes 560 mm
Pitch 216 mm
UNDERCARRIAGE
SYSTEM
Maximum pressure 14 MPa
Pump type Gear pump
Discharge 262 L/min
Bore of working cylinder × no. 120 mm × 2
HYDRAULIC
SYSTEM
SD22
Blade type Straight-tilt Angle Semi-U-blade
Dozing capacity 6.4 m3 4.7 m3 7.5 m3
Efficiency (Theoretical value 40 m) 330 m3/h 245 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3725 mm
Blade height 1315 mm 1055 mm 1374 mm
Maximum drop below ground 538 mm 535 mm 540 mm
Maximum tilt adjustment >735 mm >500 mm >755 mm
Weight of blade 2830 kg 3254 kg 3419 kg
BLADE
Maximum digging depth of 3-shank ripper 666 mm
Maximum lift above ground 555 mm
Weight of 3-shank ripper 2495 kg
Maximum digging depth of single ripper 695 mm
Maximum lift above ground 515 mm
Weight of single ripper 2453 kg
SHANTUI: CHINA’S KING OF THE HILL IN BULLDOZERSIS NOW HIGHLY DIVERSIFIEDSince its founding in 1980, the name Shantui has beensynonymous with bulldozers in China. And for good reason: Shantui consistently has held more than a 50% share of market in bulldozers in China, and is now the world’s Number One producer and seller of bulldozers,
all under our own brand name.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: what is the product warranty?
12 month from BL date or 2000 working hours whichever comes first.
