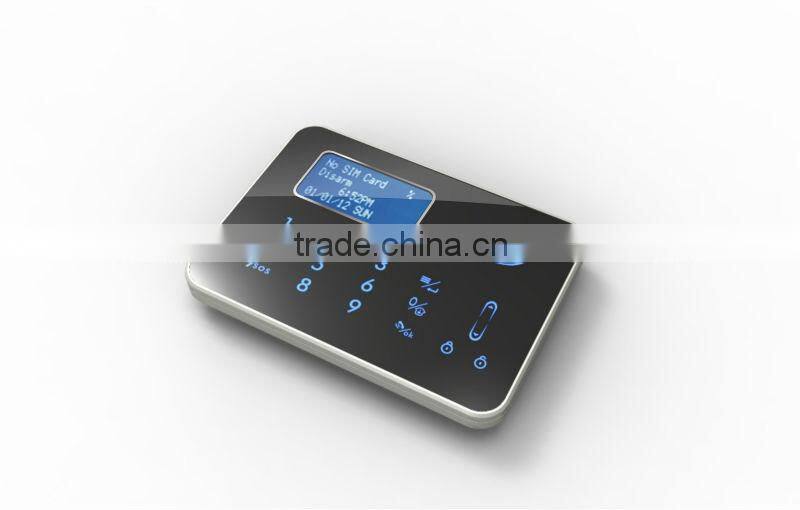

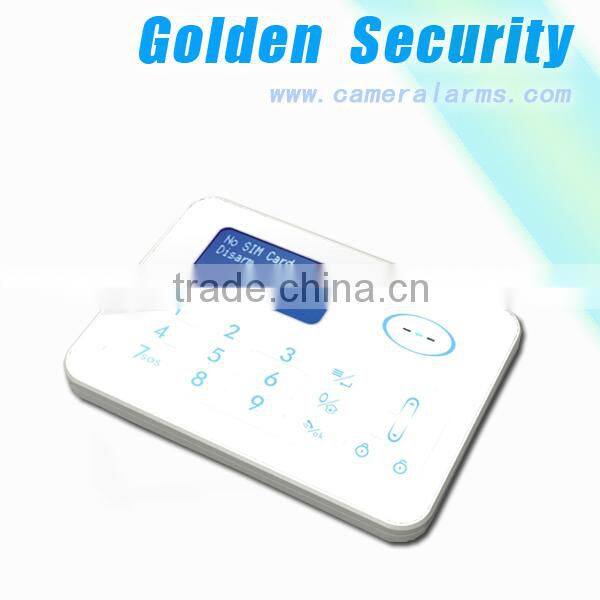

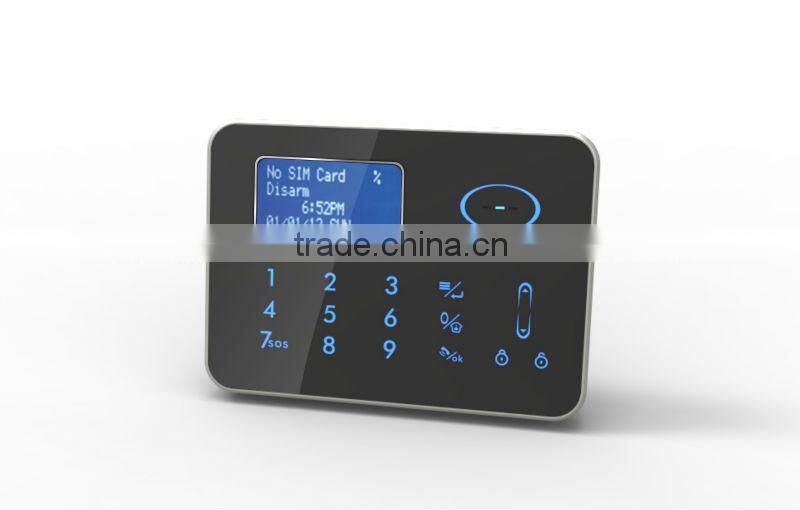

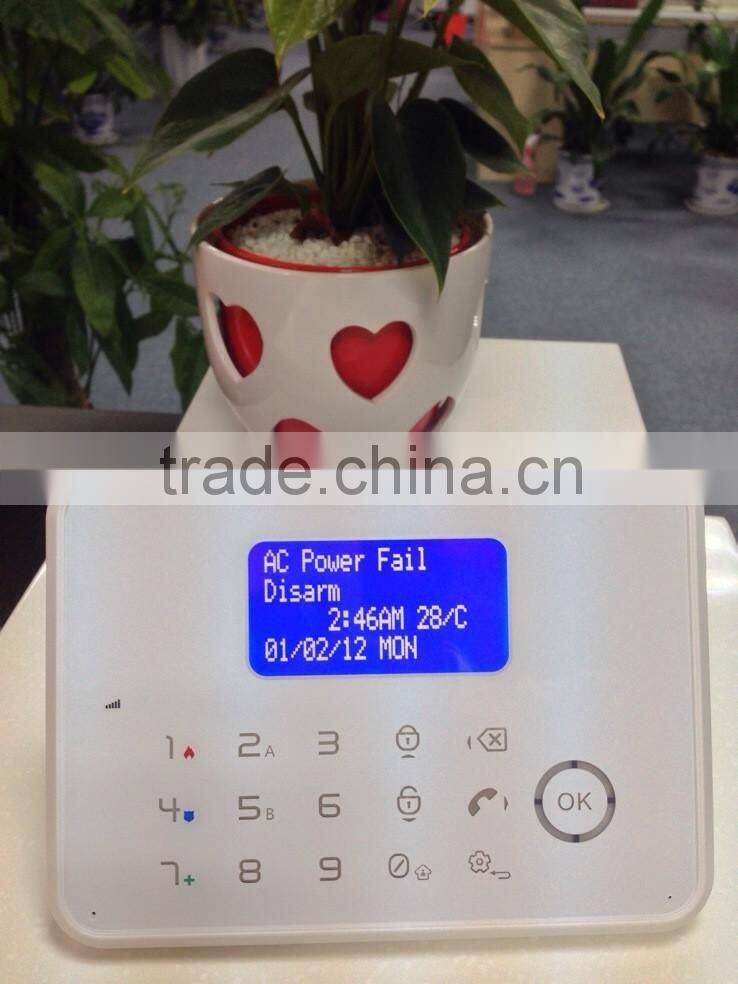

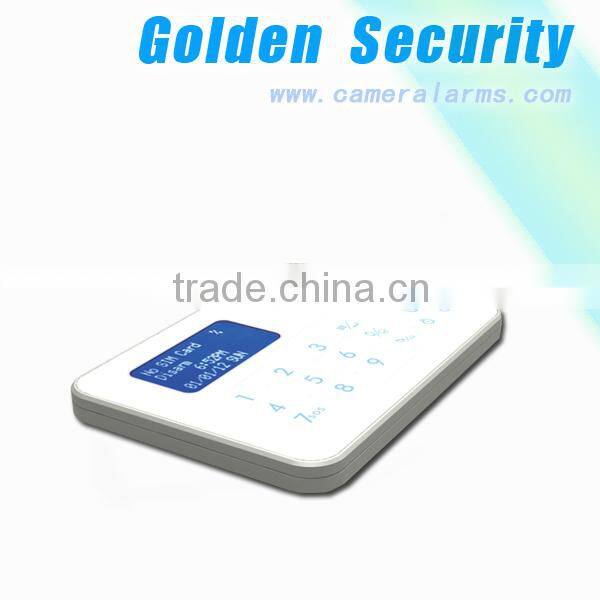

LCD Intelligent Wireless Home Security Alarm System With APP Application on Iphone

Specifications

  LCD intelligent Wireless home security alarm system with APP application on iphone

Main features

2.GSM+PSTN dual network alarm system. If PSTN is disable,it will switch to GSM automatically

3.Calendar+5 alarm call/SMS No.+1 alarm CID call No.+1 upload SMS No.+ 10S record+ Arm Delay + Alarm Delay + Alarm Beep Setting+ Call-in time setting+ Wireless Program+ Zone Attribute Setting+ User password + Program Password + Reset + Alarm History + Status History

4.30 wireless zones + 8 wired zones, every zone attribute, name, bypass, alarm delay, intelligent door sensor function, beep indication could do free setting.

5.Alarm system Inform Mode: PSTN Call, GSM Call, GSM SMS

6.Alarm system SMS include alarm zone and sensors name

7.Work with Contact ID protocol(alarm information, status information, AC power off and recover, Low voltage, test)

8.Support wireless “ding-dong” doorbell function

9.Alarm priority, Reset, activate and disable alarm call and alarm SMS

  burglar alarm system & Wireless alarm & Security alarm system

Technical Parameter

Input power                           12V  DC/1A

Alarm output                        12V/300mA

Working current                     40mA

Built in battery                       7.2V/600mAH

Working temperature            -10~ +70°C

Storage Temperature              -20~ +80°C

Wireless receiving frequency     315MHz/433MHz

Wireless receiving sensitivity    -100db

Working voltage:110~240VAC
Operating power: 9-15VDC

Standard package list,

One alarm host

One wireless door/window magnetic contact

One PIR motion sensor

Two remote controllers

One AC adapter

One English user manual

Package information

32*32*11(cm)----one set gift box

30*29*28(cm)----three sets cargo

46*32**31(cm)----five sets cargo

58*46*32(cm)----ten sets cargo

Attention:

1.The appearance of GS-G190E( includes alarm sensors for GS-G190E) are customized for European market,with nice design and good quality.

2.The alarm sensors of GS-G190E can be 868mhz.

3.GS-G190E can support CID Protocol,but need work with GSM alarm receiver to connect with monitoring station.

4.GS-G190E has two color for optional,White color and black color.Before ordering,distributor should confirm color with Golden Security sales person.
