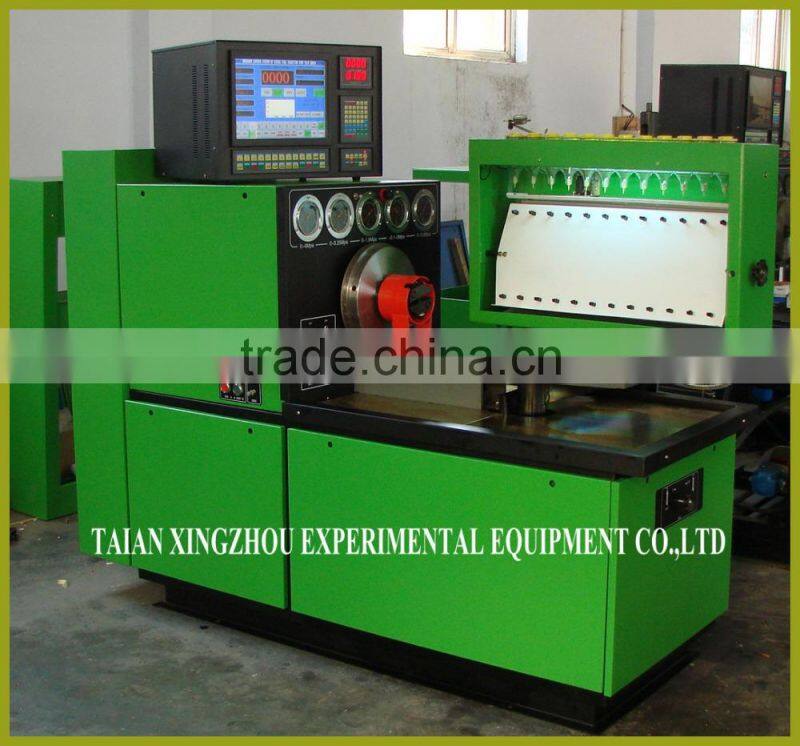

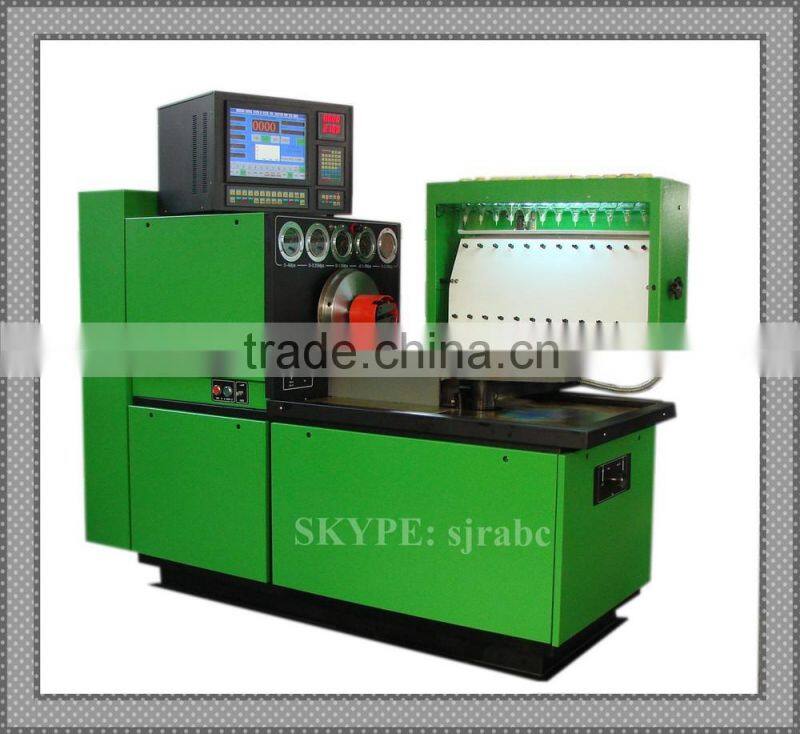

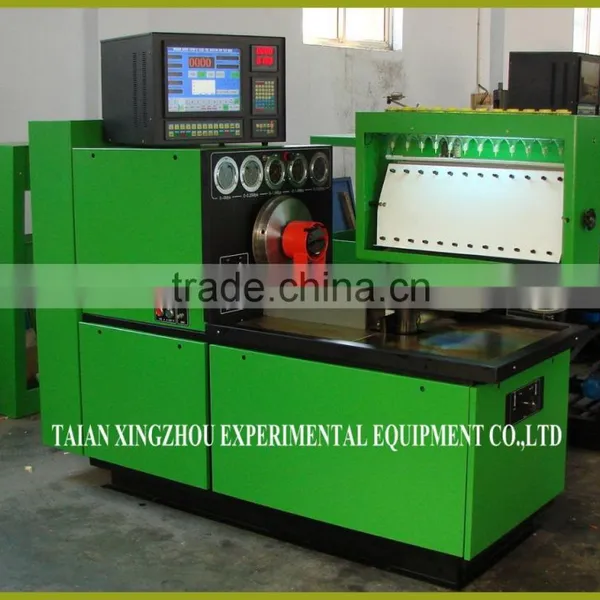

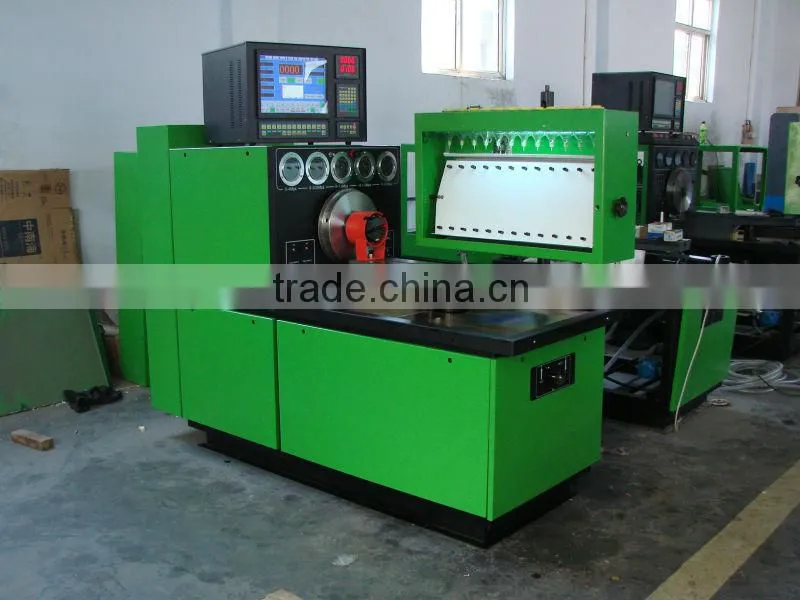

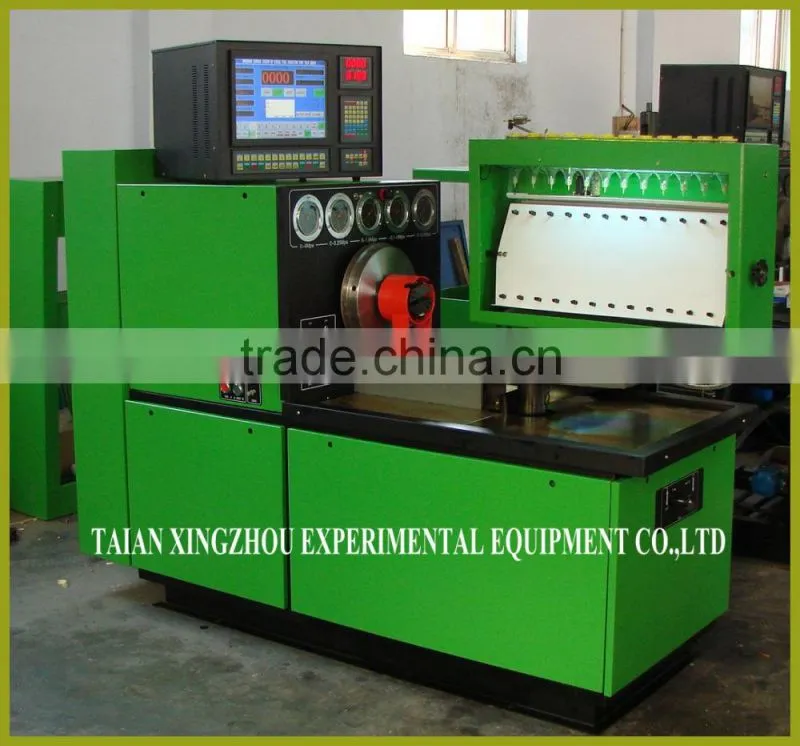

PCM-E Diesel fuel injection pump test bench (ce certificate)
Test A,AD,M,MW,P,Z,VE,VA,ZW and so on pumps
Functions:
1 Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Checking the mechanical governor.
6 Checking the pneumatic governor.
7 Checking the vacuum capacity of governor.
8 Checking the pressure compensators(LDA).
9 Measuring the internal pressure of distributor pump body.
10 Testing the electromagnetic valve of distributor pump.
11 Checking transfer pump.
12 Measuring the reflux delivery of distributor pump body.
Parameters :
Output power | 7.5kw,11kw.15kw.8.5kw,22kw |
Power supply | 3-phase 380V/50HZ,3 phase-220V/50HZ |
Interaxe height | 125mm |
graduates | 45CC,150CC |
Tank volume | 60L |
DC supply | 12/24V |
Feeding fuel pressure | Low 0--0.4Mpa, High 0--4Mpa |
Range of speed | +/-4000RPM |
Control temperature | 40+/-2°C |
Filter accuracy | 5u |
Air pressure | -50+300Kpa |
Size: | 2.4*1.2*2m |
Weight | 870kg
|
1. Output power(KW): 7.5/11/15/18.5/22Optional
2 Power supply: 3-Phase)380V/50Hz (or on request)
3 Height of spindle centers: 125mm
4 Graduated cylinder: 45CC or 150CC
5 Volume of fuel tank: 60L
6 DC.Supply: 12/24V
7 Feeding fuel pressure: Low:0-0.4Mpa High:0-4Mpa
8 Range of speed: +/-4000RPM
9 Fuel test accuracy Accessories: 5u
Hot Questions:
1.Does your company a distributor or a manufacturer?
Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory and so can provide you the best price.
2.Is the operation easy?How about the instructions?
Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.
3.Payment method and the delivery time.
We accept bank transfer,Western Union or Paypal. Accept L/C,TT.
The machine will be produced as soon as possible when receive the payment,often within 8 days.
so waiting for your inquiry!!!
