Specifications
ure:0~2000bar2.CE certificate
3.outpower:11kw.15kw
dows xp system,BOSCH CP3 pump,flow sensor

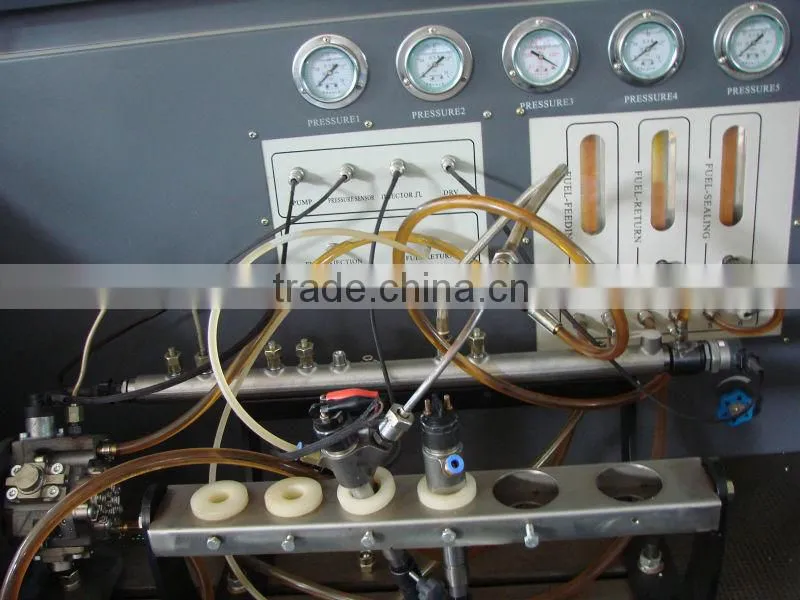

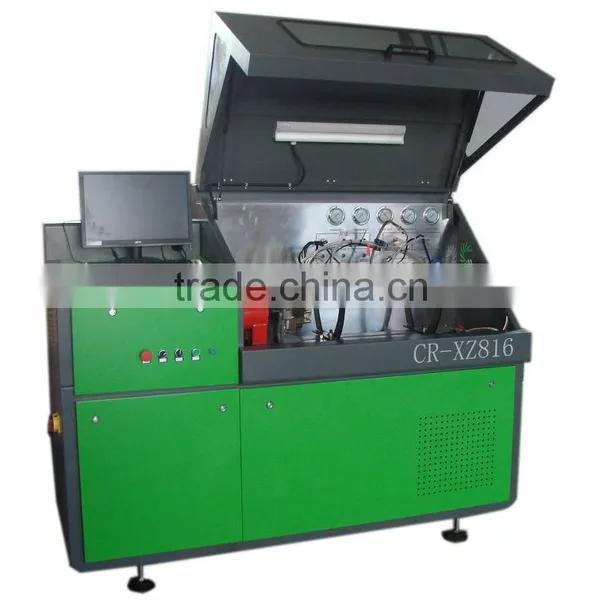

CR-XZ816 Common Rail Pump and Injector Test Bench(CE certificate)
DESCRIPTIONS:
CR-XZ816 Common Rail Pump&Injector Test Bench can not only do the commom rail pump test but also do the common rail injector test, which is applied to BOSCH, DENSO, DELPHI,SIEMENS,EUI/EUP and so on.
FEATURES:
1.Industrail human-machine interface
2.Windows XP operating system
3.Automatic temperature control
4.Driven by BOSCH CP3 pump
5.DRV wave pressure control.
6.High accuracy import flow sensor.
7.Transparent safety protection.
FUNCTIONS:
Common Rail Injector |
Common Rail Pump |
1.Test BOSCH,DENSO,DELPHI,DENSO,CATERPILLAR injectors. Piezo injector testing (optional function) |
1.Test BOSCH CPI/CP2/CP3, DENSO HP0/HP1/HP2/HP3/HP4, DELPHI CRSP, SIEMENS DCP common rail pumps and so on. |
2. Test 1,4, or 6 injectors at one time |
2.Test sealing quality of common rail pump. |
3. Sealing quality test of common rail injectors |
3. Test pump chamber pressure of common rail pump. |
4.Pre-injection test of common rail injectors |
4. Test the feeding pressure of common rail pump. |
5. Full-load condition test of common rail injectors |
5. Test the feeding oil amount of common rail pump. |
6. Idle condition test of common rail injectors. |
6. Test the return fuel amount of common rail pump |
7. Calibration test of common rail injectors |
7.Measure the rail pump at any test time. |
8.Cranking fuel quality test of common rail injectors |
8.Display the pump speed at any test time. |
9. Self-learning ability |
9. Measure the temperature of fuel at any test time. |
10. High-pressure cleaning function |
10. Measure the control quality of ZME valve. |
11. Data can be save, edited, and printed |
11. Data can be save, edited and printed |
Technical Parameters
Output power |
11KW,15KW |
Speed |
0~3000n/min |
Pressure |
0~2000 bar |
Size |
195cm*80cm*155cm |
Weight |
1200kg |
(1)Common Rail Pump Test:
Function:
1. Test BOSCH CP1/CP2/CP3, DELPHI CRSP, DENSO HP1/HP2/HP3/HP4, SIEMENS DCP pump and so on.
2. Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME Valve.
3,Can test HP0 two-valves pumps.
2)Common rail injector test:
Test BOSCH,DENSO, DELPHI injector and so on.
Function:
1. Test up to 6cps injectors at any one time.
2. Automatic high-pressure cleaning is for repairing the fault by dirty diesel oil.
3. With high accuracy import flow sensor, automatic test the oil injection and oil return under the circumstance of sealing, pre-injection, full load, idle operation, and calibrating; closed-loop control.

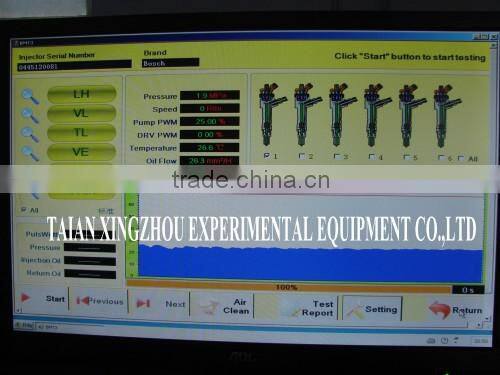

4.Self-learning ability, automatic create new plans by testing new injectors; view, create, edit, save test plans easily.
Hot Questions:
1.Does your company a distributor or a manufacturer?
Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory and so can provide you the best price.
2.Is the operation easy?How about the instructions?
Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.
3.Payment method and the delivery time.
We accept bank transfer,Western Union or Paypal. Accept L/C,TT.
The machine will be produced as soon as possible when receive the payment,often within 8 days.
welcome to your inquiry!!!
