Specifications
ure:0~2000bar2.CE certificate
3.outpower:11kw.15kw
dows xp system,BOSCH CP3 pump,flow sensor

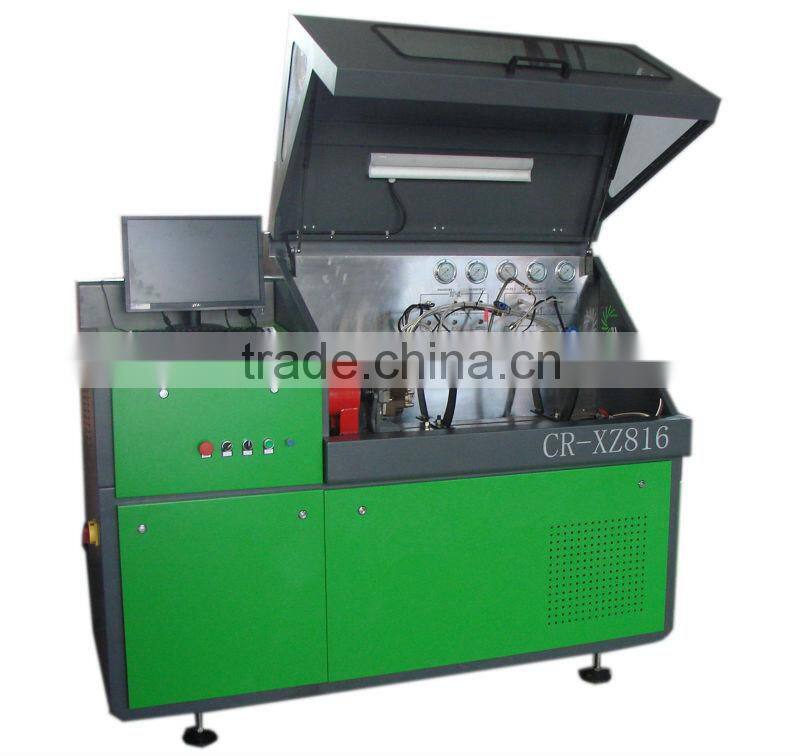

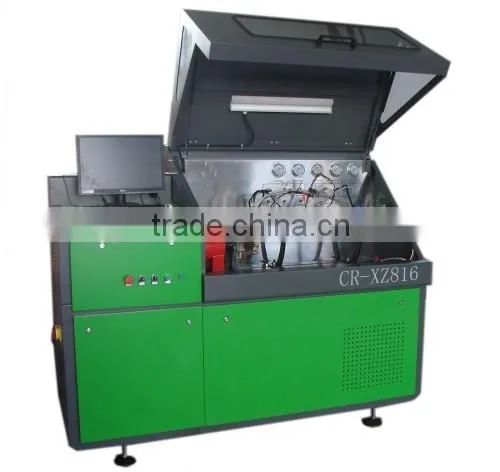

CRXZ816 is our company improved common rail injector and pump test bench. It adapts highaccuracy fuel flow sensor to calculate the fuel amount automatically; Bosch fuel pump, common rail and pressure control valve to drive, pressure can reach to 2000 bar. With full database of electrical injectors and pumps, computer control operation, can meet most needing in the diesel vehicles’ testing and maintenance.
1. Automatical fuel flow testing by flow sensor.
Imported flow sensor, highaccuracy and long service life, it is not influenced by the fuel temperature and high pressure, can feel the very tiny fuel wave, to ensure the exacting testing of injection.

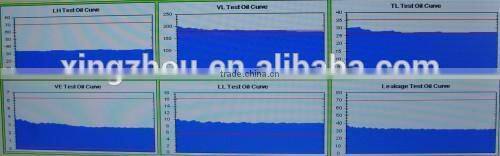

Fuel flow displayed on the computer:
2.stable common rail pressure control by the Bosch common rail, DRV valve, max pressure reach to 2000 bar.
3.Speed changed with the high-quality frequency-changer.
4.Automatic temperature control.
Fuel temperature is controlled with the cooling and heating device inside the machine, and with temperature sensor to send the signal to the computer.
5.With Bosch, Denso, Delphi, Siemens, Caterpillar injector and pump database as the standard data reference.
6.Test plan can be edit, save and print out

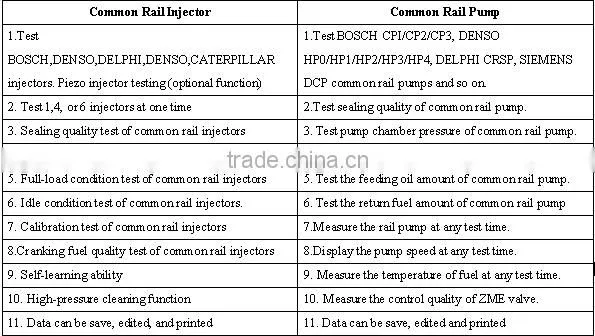

1)Common Rail Injector Testing.
Can test Bosch, Denso, Delphi, Siemens, Caterpillar injectors and so on.
1.Test up to 6 injectors at one time.
2. Test conditions include cleaning, pilot injection, middle load, full load, idle and sealing.
3.All testing parameters displayed on the computer: fuel pressure, pump speed, pump PWM, DRV PWM, fuel temperature and flow amount.
4. Selflearning function to create new injector plans by testing and save as the standard data.
5.Test plan can be view, create, edit, save and print

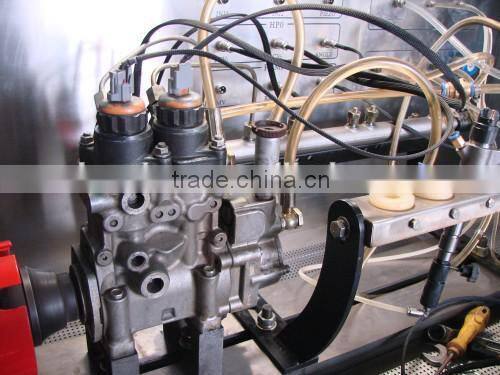

2)Common Rail Pump Testing.
1.Can test Bosch CP1,CP2,CP3. Delphi CRSP, Denso HP1/HP2/HP3/HP4, Siemens DCP pumps and so on.
2. Can test two-valves electrical pumps, such as Denso HP0.
Hot Questions:
1.Does your company a distributor or a manufacturer?
Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory and so can provide you the best price.
2.Is the operation easy?How about the instructions?
Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.
3.Payment method and the delivery time.
We accept bank transfer,Western Union or Paypal. Accept L/C,TT.
The machine will be produced as soon as possible when receive the payment,often within 8 days.
welcome to your inquiry!!!
