Infrared Bridge Granite and Marble Cutting Machine--hydraulic

Infrared Bridge Granite and Marble Cutting Machine--hydraulic thumbnail-1
Infrared Bridge Granite and Marble Cutting Machine--hydraulic photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Marble
Production Capacity 200m2
Place of Origin Fujian, China
Brand Name HAILONG
Model Number ZDQQ-400/600/700
Voltage 440V
Power(W) 20.2 KW
Dimension(L*W*H) 6M * 4.8M * 5M
Weight 5T
Certification CE CNAB ISO
Warranty 6 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.marble, granite cutting machine

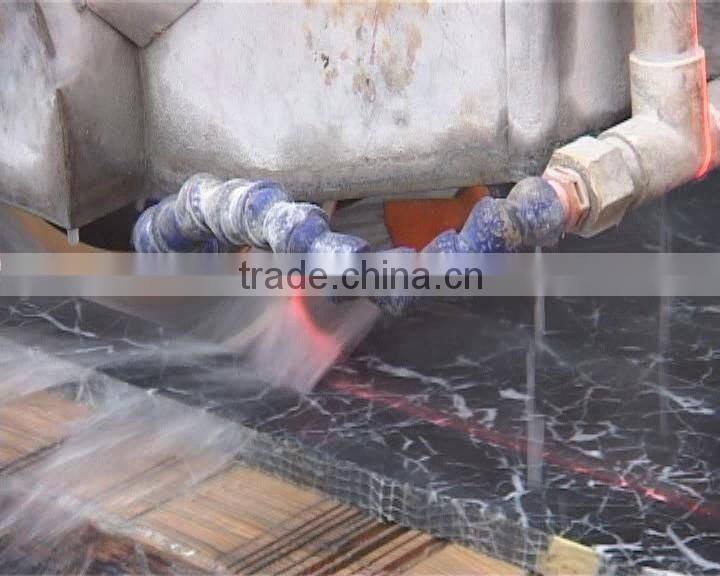

2. infrared cutting guide
3.rotable working table 0-360 degree,0-85degree
4. screw

ZDQQ-400/600/700

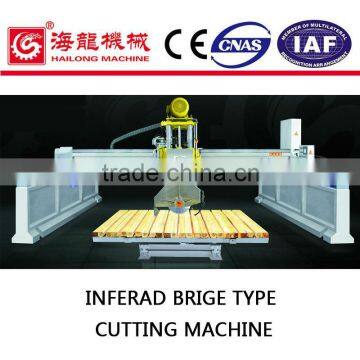

INFRARED BRIDGE TYPE MARBLE CUTTING MACHINE (COLUMN-GUIDED&SKATEDBOARD)

 Infrared bridge granite and marble Cutting Machine--hydraulic

Production Ability:

I.e. Size 60X60CM

Granite: 120 square meters / 24h

Marble: 110-120 square meters / 24h



FEATURES:

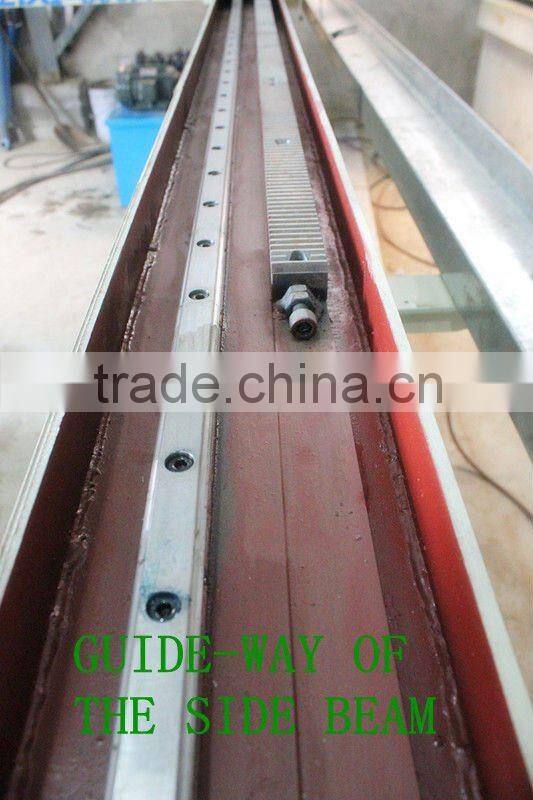

  1. It is equipped with oil-immersed guide way for crossbeam and edge beam
  2. Hydraulic controlled elevation system

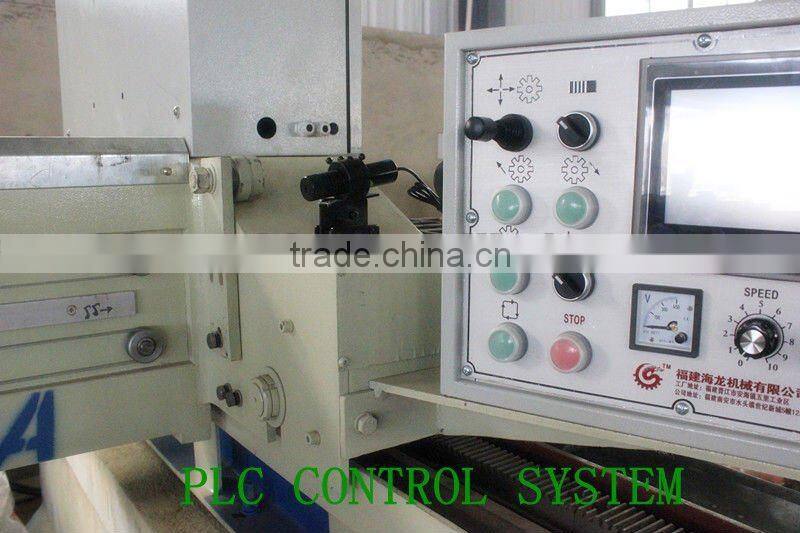

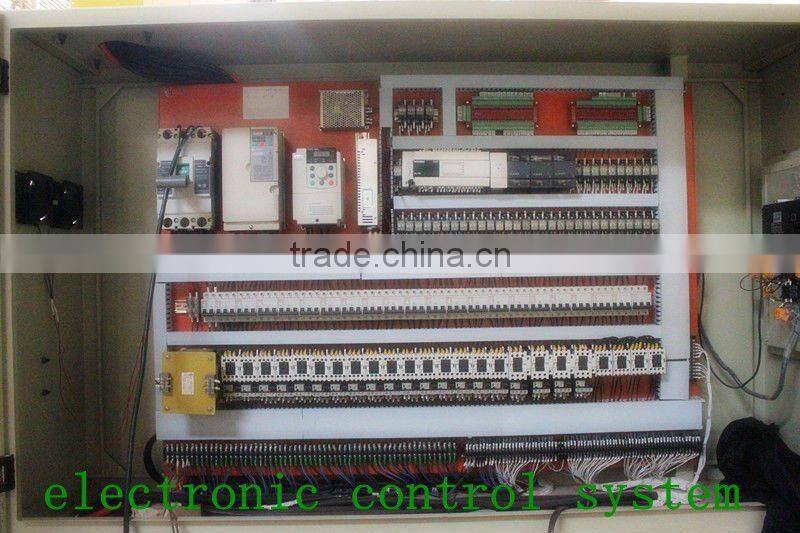

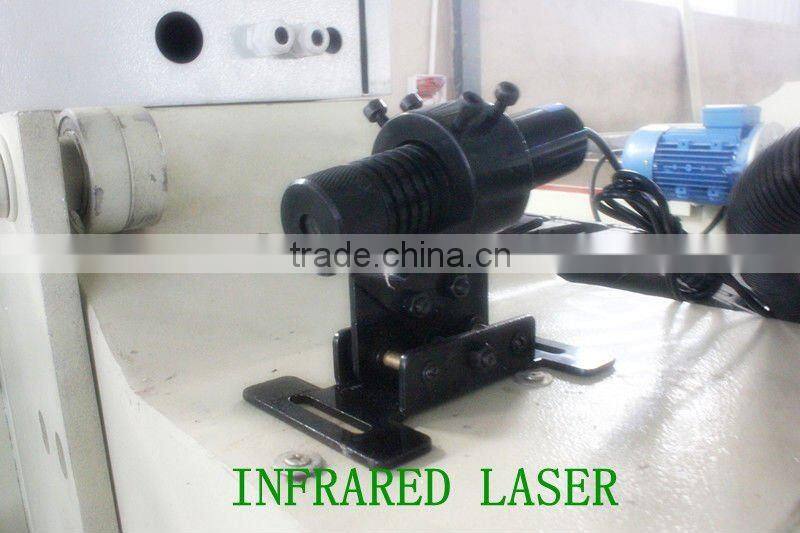

III.        PLC terminal controlling system for convenience of setting parameters through LCD touch screen. Each slab is cut automatically individually through out the process, with blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character. An infrared ray cutter aligner is installed, and 90°and 360°rotatable working table,mobile frame,finished base concrete, single-arm suspension etc, are for your choice.

It cuts precisely and ranks the top in the industry with stable performance

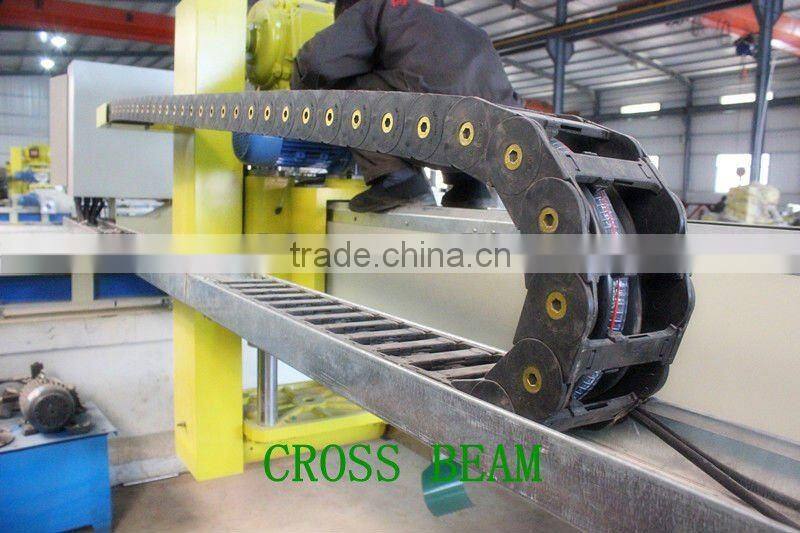

IV.   Cross Beam: Double built in groove, make Supremely Accurate cutting

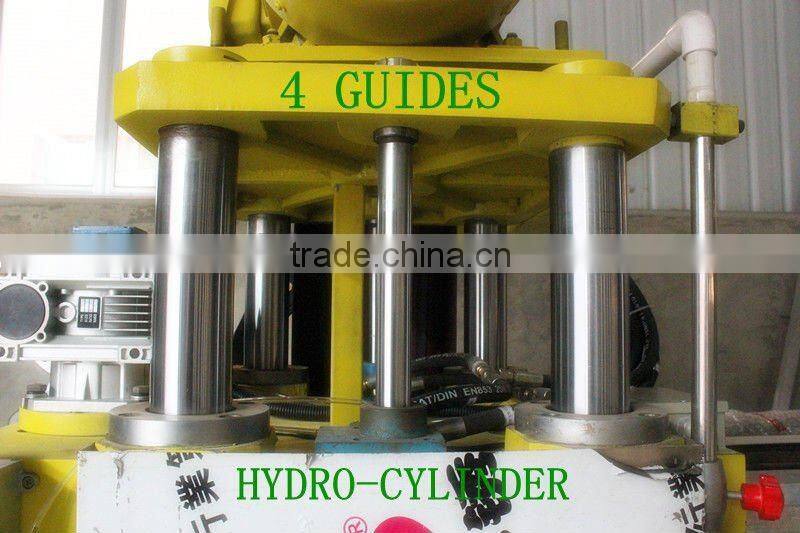

V.   Double hydro-cylinder: more stability of the elevation of the blade

VI.  4 guide pillars: higher speed than the Skate-board cutting machine



TECHICAL PARAMETER

ITEM NO.

ZDQ 400A

ZDQ 600A

ZDQ 400A /600A

POWER OF MAIN MOTOR

15KW

15KW

15KW

TOTAL POWER

20.2KW

20.2KW

20.2KW

MAX.BLADE DIAMETER

400mm

600mm

600mm

MAX.CUTTING DEPTH

80mm

180mm

80-180mm

WORK TABLE SIZE

3200X2000mm

3200X2000mm

3200X2000mm

WORKING ROTATION DEGREE(ALTERNATIVE)

0-90°/0-360°

0-90°/0-360°

0-90°/0-360°

WATER COMSUMPTION

2m3/h

2m3/h

2m3/h

WEIGHT

5300kgs

5500kgs

5500kgs

DIMENSION(LXWXH)

6000x4800x3000mm

6000x4800x3000mm

6000x4800x3000mm



REMARKS:

Packing:

Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Three units in one 20’ GP container

Delivery time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch



Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.



Company production ability:

We produce more than 60 sets of infrared cutting machine each month.



Service:

Fujian hailong Co., ltd will offer you the best and professional technology and after sales service. Our company builds up a professional group to track all the sold machine for its regular working and maintaining. Besides, we will have half and year guarantee.
