Specifications
1.MACHINE MAIN INTRODUCTION:This series of granite slab cutting machine or marble slab cutting machine is applicable for the t

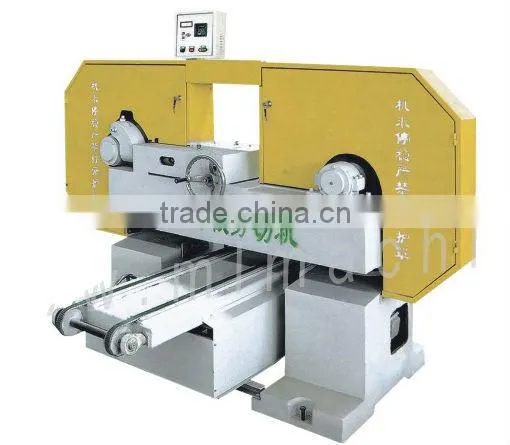

MARBLE THIN SLAB CUTTING MACHINE HLBB-1500/1200/800/600
1.MACHINE MAIN INTRODUCTION:
This series of granite slab cutting machine or marble slab cutting machine is applicable for the thin tile cutting processing.
The main body structure of thin slab cutting machine is designed rationally and has high hardness, which effectively ensures the durability and firmness, and impact and vibration resistance , especially the dynamic head can provide enormous torque, thus promote the operation efficiency. With special tension device, the thin slab cutting machine can automatically adjust the tension of the blade according to material property, so that to prolong its service life; With the frequency control, the bogie can run steadily and has less risks of damage.
2. Main production capacity: 40-50m2/8 hours
3.TECHNOLOGY PARAMETERS:
Item no |
HLBB-1500 |
HLBB-1200 |
HLBB-800 |
HLBB-600 |
MAIN MOTOR PWER |
7.5 kw |
7.5 kw |
5.5 kw |
5.5 kw |
Max cut width |
1500mm |
1200mm |
800mm |
600mm |
Max cut thickness |
5mm-200mm |
5mm-200mm |
5mm-200mm |
5mm-200mm |
Machine size |
4200x3500x2100 |
4200x3000x2100 |
2500X2600X2000 |
2500X2000X2000 |
|
|
|
|
|
4.Other related information

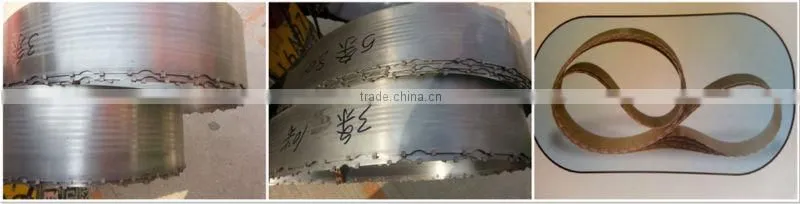

Cut tools:7 meters blade saw
Saw price::$10/METER
life: 1-2 years
Segment: 25pcs /meter ;
Segment price: $0.8~1.5/pc
consumption;100-200M2/ ONE SET

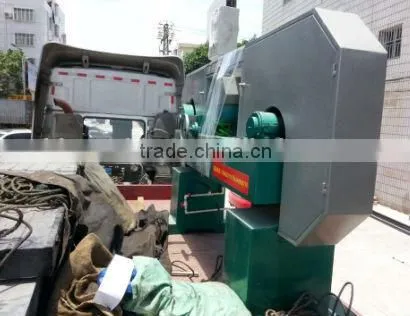

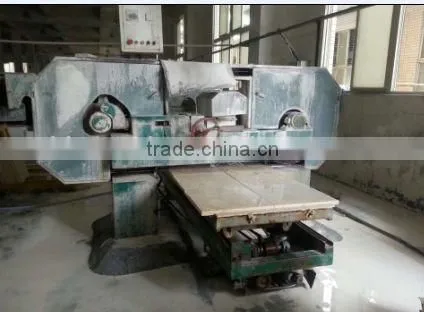

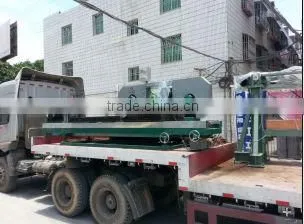

4.MACHINE RUNNING PHOTO
