Laser Bridge Granite/marble/stone Saw Slab Tile Cutter

Laser Bridge Granite/marble/stone Saw Slab Tile Cutter thumbnail-1
Laser Bridge Granite/marble/stone Saw Slab Tile Cutter photo-1
US$ 18,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Granite
Production Capacity 120 square meters / 24h
Place of Origin Fujian, China
Brand Name Hailong
Model Number ZDQQ-350/400/600/700
Voltage According to customer demand
Power(W) 20.2kw
Dimension(L*W*H) 6000*3500*2600
Weight 5300kgs
Certification CE/CNAS/ISO9001/IAF
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

This tile cutter precision manufacturing assembly,unique side beams protection device,feeling type operating system.


Product Description

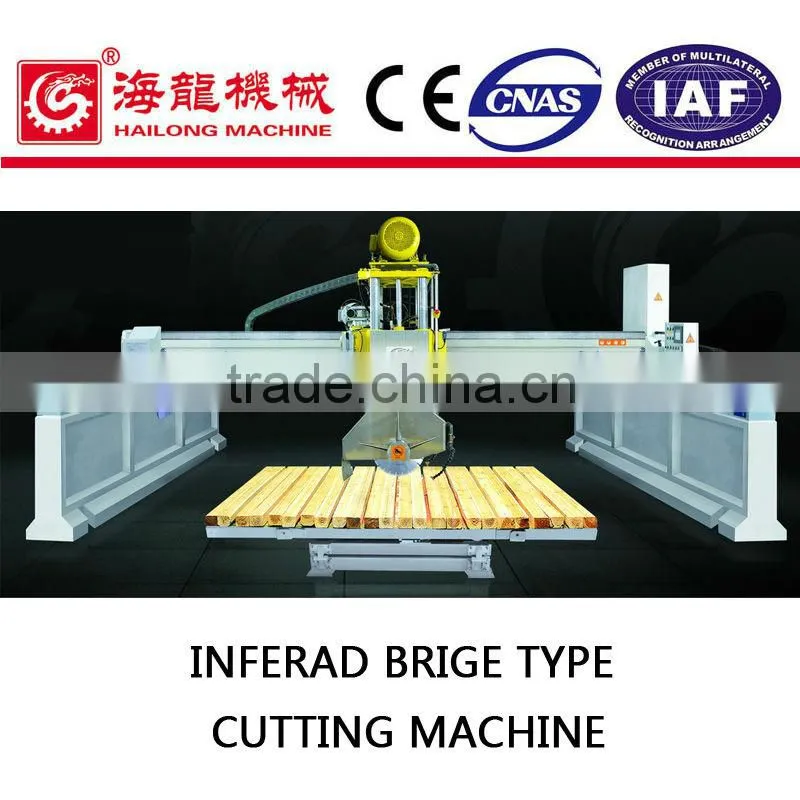

Laser bridge granite/marble/stone saw slab tile cutter

Production Ability:

I.e. Size 60X60CM

Granite: 120 square meters / 24h

Marble: 110-120 square meters / 24h



FEATURES:

  1. It is equipped with oil-immersed guide way for crossbeam and edge beam
  2. Hydraulic controlled elevation system

III.        PLC terminal controlling system for convenience of setting parameters through LCD touch screen. Each slab is cut automatically individually through out the process, with blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character. An infrared ray cutter aligner is installed, and 90°and 360°rotatable working table,mobile frame,finished base concrete, single-arm suspension etc, are for your choice.

It cuts precisely and ranks the top in the industry with stable performance

IV.   Cross Beam: Double built in groove, make Supremely Accurate cutting

V.   Double hydro-cylinder: more stability of the elevation of the blade

VI.  4 guide pillars: higher speed than the Skate-board cutting machine



TECHICAL PARAMETER

ITEM NO.

ZDQQ-350

ZDQQ-400

ZDQ-600/700

POWER OF MAIN MOTOR

15KW

15KW

18.5KW

TOTAL POWER

20.2KW

20.2KW

20.2KW

MAX.BLADE DIAMETER

350mm

400mm

600/700mm

MAX.CUTTING DEPTH

80-180mm

80-180mm

80-180mm

WORK TABLE SIZE

3200X2000mm

3200X2000mm

3200X2000mm

WORKING ROTATION DEGREE(ALTERNATIVE)

0-90°/0-360°

0-90°/0-360°

0-90°/0-360°

WATER COMSUMPTION

2m3/h

3m3/h

3.5m3/h

WEIGHT

5300kgs

5500kgs

5500kgs

DIMENSION(LXWXH)

6000x4800x3000mm

6000x4800x3000mm

6000x4800x3000mm

Packaging & Shipping

Packing:  Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles.Three units in one 20’ GP container

Delivery time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: 6 months

Payment: 30% by T/T in advance as deposit, 70% upon dispatch


Our Services

Laser bridge granite/marble/stone saw slab tile cutter
