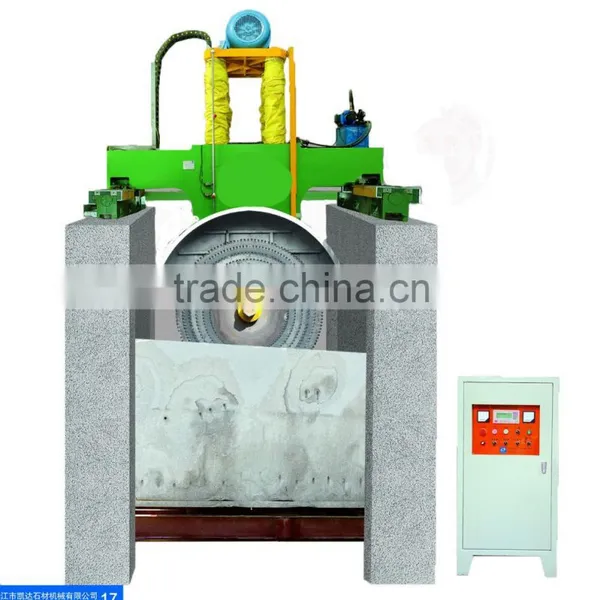

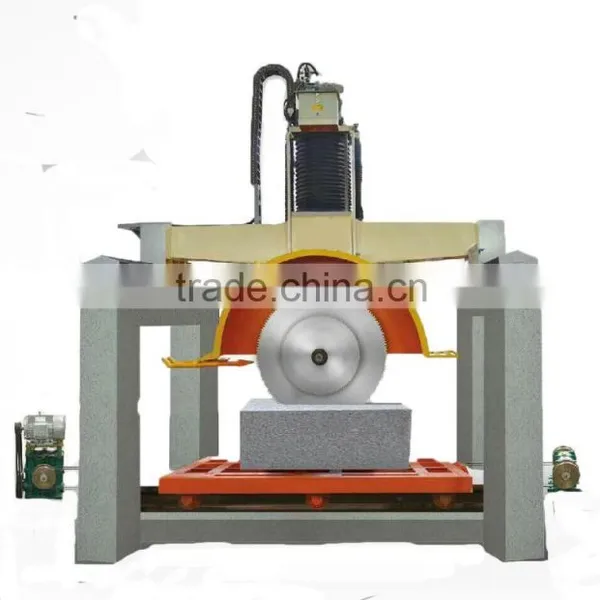

GANTRY MULTI-BLADES BLOCK CUTTING MACHINE WITH 162/16/32 BLADES
1.FUNCTION:
This machine is designed with the traditional gantry structure but advanced on more stronger and bigger side beam. The total machine is improved with more casting so that machine is very stable and enough to hold multiblades like 12/16/32 blades.
The main spindle lifting system is with 4 big column. With this, the cutting spindle can work smoothly and fast.
This machine is very advanced and well performance. It is the best small &medium size block cutting machine
2.MACHINE PRODUCTION CAPILITY:
400-500M2/24HOURS
3.FEATURES:
Gantry type bridge make sure the cutting stability
Trolley track to move the block while cutting, improving the cutting production capacity
The machine can hold 12/16/32 blades
Two option on the column, 4 small column from 140-250mm, 1 big column about 450mm
4.TECHICAL PARAMETER
ITEM NO. |
HLG-12 |
HLG-16 |
HLG-32 |
Blade diameter |
0-1500 |
0-1500 |
0-2200 |
Power of the main motor |
55kw |
55kw |
65kw |
Total power |
55kw |
58kw |
70kw |
Table dimension |
700 |
900 |
900 |
Table rotating degree |
0-360degree |
0-360degree |
0-360degree |
Table rotating degree |
0-89 degree |
0-89 degree |
0-89 degree |
Quantity of the blade |
12pcs |
16pcs |
32pcs |
Column diameter |
140,200 |
180/220mm |
450mm |
Ma cutting height |
60cm |
60cm |
90cm |
Max cutting LXW |
4000x2200mm |
4000x2200mm |
4000x2200mm |
Machine weight |
10200kgs |
11500kgs |
12700kgs |
Machine dimension |
4500x5500x2800mm |
4500x5500x2800mm |
4500x5500x3200mm |
|
|
|
|
REMARKS:
Packing: Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Lead time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: Half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
5.MACHINE IMPOTANT COMPONENTS
Electrical component |
International brand |
Current brand |
The control screen |
SIEMENS |
Kinco ( German & CHINA JOINTED) |
Air switch |
SIEMENS |
Delix |
Frequency convertor |
SCHNEIDER |
YASKAWA/( JAPEN & CHINA JOINTED) |
Power switch |
SCHNEIDER |
YASKAWA/ INVONANCE |
PLC |
MITSUBISHI |
INVONANCE/ |
Relay |
APT |
APT |

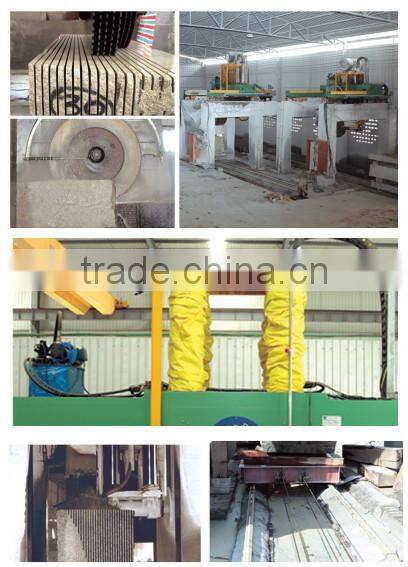

6. MACHINE RUNNING PHOTO
Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Two units in one 40’ GP container
Delivery time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
