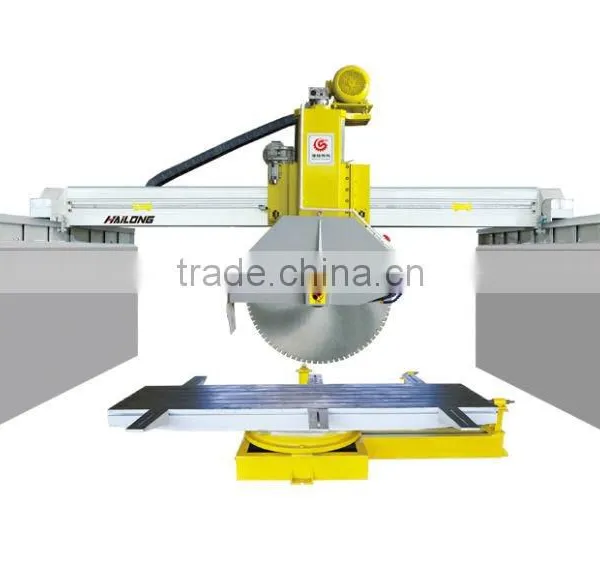

Brick---Bridge type single blade marble cutter machine

Specifications

1.marble, granite cutting machine
2. single blade,cutting0.19-0.4m high block and stone
3. trolley choice
4.150~200 M2/DAY

ZDQQ-1200

BRIDGE TYPE CUTTING MACHINE



WORKING THEORY

I.     It is equipped with oil-immersed guide way for crossbeam and edge beam

II.    It is equipped with Double screw drive elevation system. Stones are cut automatically individually,

III.    Blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character and an infrared ray cutter aligner installed. Working table can be rotated in 360 °, thus locating precisely. The machine has excellent performance.





TECHICAL PARAMETER

ITEM NO.	QZQ1200
MAX. BLADE DIAMETER	600-1200
MAX. VERTICAL STROKE	630
WORKING ROTATION DEGREE	0°-360°
WEIGHT	6500KGS
TOTAL POWER	23.2KW
POWER OF MAIN MOTOR	18.5KW
WORK TABLE SIZE	3000X800
WATER COMSUMPTION	4m3/h
DIMENSION(LXWXH)	6500X4000X4500



REMARKS:

Packing:

Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Three units in one 20’ GP container

Delivery time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch



Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.



Company production ability:

We produce more than 60 sets of infrared cutting machine each month.



Service:

Fujian hailong Co., ltd will offer you the best and professional technology and after sales service. Our company builds up a professional group to track all the sold machine for its regular working and maintaining. Besides, we will have half and year guarantee.
