12 Heads Granite Automatic Line Polish Machine 1200mm

12 Heads Granite Automatic Line Polish Machine 1200mm thumbnail-1
12 Heads Granite Automatic Line Polish Machine 1200mm photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Polishing Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Polishing Machine
Use Granite
Production Capacity 400 sq.meter/8 hours
Place of Origin Fujian, China
Brand Name HAILONG
Model Number ZDMJ-12C
Voltage 380V/440V/480V
Power(W) 101.45kw
Dimension(L*W*H) 7600*2350*2300
Weight 12000KG
Certification CE/ISO200/CNAB
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas

12 heads Granite Automatic line Polish Machine 1200mm

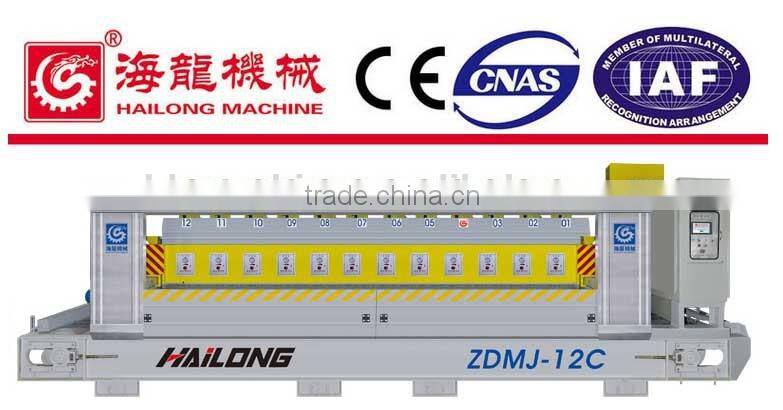

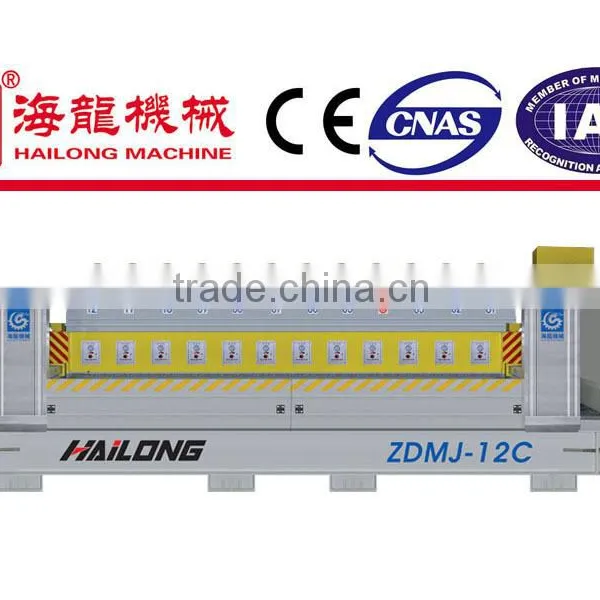

ZDMJ-12C GRANITE AUTOMATIC LINE POLISH MACHINE

12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm


Product Description



1.FUNCTION:

It is used for continuous grinding and polishing of granite plated and meets particularly the demand of mass production and production of more-than-80°gloss slab

2.MACHINE PRODUCTION ABILITY:

Average:400 M2/DAY

Hard: 350M2/DAY

Soft: 450M2/DAY

3.FEATURES:

I. The brand new six spring polishing head rather than the original polishing head. There are 6 spring bring 6 stress point, which make the polishing process more stable; and instead of one-term pressing, we enable the principal axis descend in 3 times, relieve the pressure when it descending, so that it can better avoid impact and protect the slab.

II. And the adopt of the special and unique infrared slab sensor can recognize the flatness and shape of the slab to better polishing later.

II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is two quarters less than traditional continuous polisher.

IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.

V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.

4.TECHICAL PARAMETER

ITEM NO.

ZDM12C/0.9

ZDM12C/1.2

ZDM12C/1.5

QUANTITY OF HEADS

12

12

12

POWER OF MAIN MOTOR

7.5KW

7.5KW

7.5KW

TOTAL POWER

101.45kw

101.45kw

101.45KW

GRINDING HEAD DIAMETER

200mm

200mm

200mm

GRINDING PLATE WIDTH

900mm

1200mm

1500mm

GRINDING PLATED HEIGHT

10-50cm

10-50cm

10-50cm

BEAMS SWING SPEED

3-35m/min

3-35m/min

3-35m/min

SLAB TRANSMITTED SPEED

1-3m/min

1-3m/min

1-3m/min

COOLLING WATER PRESSURE

0.1-0.15MPA

0.1-0.15MPA

0.1-0.15MPA

WATER CONSUMPTION

20m3/h

20m3/h

20m3/h

AIR SUPPLY PRESSURE

0.8mpa

0.8mpa

0.8mpa

TOTAL WEIGHT

11000kgs

12000kgs

13000kgs

DIMENSION(LXWXH)

7600*2000*2300mm

7600*2350*2300mm

7600*2650*2300mm

Packaging & Shipping



REMARKS:

Packing:  Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Lead time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: Half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch

5.MACHINE IMPOTANT COMPONENTS

Electrical component

International brand

Current brand

The touch screen

SIEMENS

Kinco ( German & CHINA JOINTED)

Air switch

SIEMENS

Delix

Frequency convertor for bridge

SCHNEIDER

YASKAWA/( JAPEN & CHINA JOINTED)

Frequency convertor for belt

SCHNEIDER

YASKAWA/ INVONANCE

Power switch

SCHNEIDER

 YASKAWA/ INVONANCE

Transformer

DELIX

DELIX

PLC

MITSUBISHI

INVONANCE/

Relay

APT

APT

White air switch for polishing

Delix

Delix



6.MACHINE ASSEMBLY

Slab trolley

2 pc

Slab rollers

2 pc

Gas holder

1 pc

Air drier

1 pc

Air compressor

1 pc

Gear reduction

1 pc

Air blower&drying device

1 pc

Cleaner

1 pc



7. MACHINE DETAILS SHOW

12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm12 heads Granite Automatic line Polish Machine 1200mm
