Automatic 20-heads Stone Processing Equipment

Automatic 20-heads Stone Processing Equipment thumbnail-1
Automatic 20-heads Stone Processing Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Stone Polishing Machine
Brand Name:
HAILONG
Model Number:
ZDMJ-20C
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Stone Polishing Machine
Brand Name HAILONG
Model Number ZDMJ-20C

Specifications

It is used for continuous grinding of granite plated and meets the demand of mass production of more than 90 degree gloss slab

ZDMJ 20C GRANITE AUTOMATIC POLISHING MACHINE FOR SLAT



MACHINE PRODUCTION ABILITY:

Average:1200~1800 M2/DAY

Hard: 1000~1600M2/DAY

Soft: 12000~1800M2/DAY

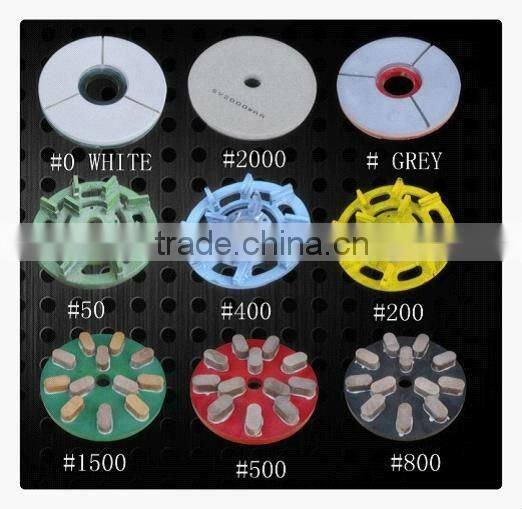

Suggested abrasive combination:(see attached pictures)

20 heads: #50X2,# 400X3, # 200X3, # 500X2,# 800X2,# 1500X3,# 0X4

(# 50,# 200,# 400 Flexible use)

FEATURES:

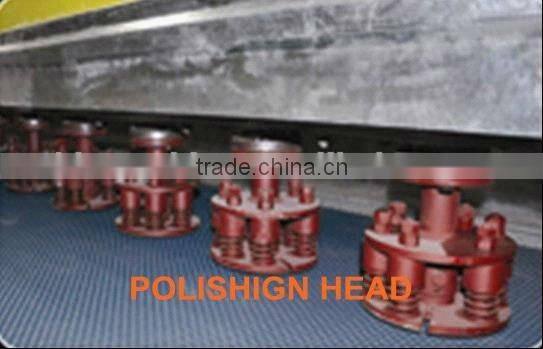

I. The brand new six spring polishing head rather than the original polishing head. There are 6 spring bring 6 stress point, which make the polishing process more stable; and instead of oneterm pressing, we enable the principal axis descend in 3 times, relieve the force of  when it descending, so that it can better avoid impact and protect the slab.

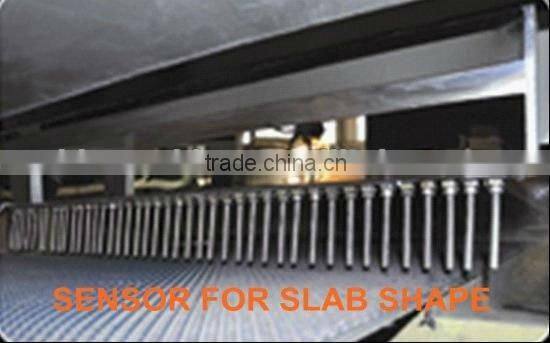

II. And the adopt of the special and unique infrared slab sensor can recognize the flatness and shape of the slab to better polishing later.

II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is two quarters less than traditional continuous polisher.

IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.

V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.

TECHICAL PARAMETER

 ITEM NO.

ZDM20C/0.9

ZDM20C/1.2

ZDM20C/1.5

 QUANTITY OF GRINDING HEAD

20

20

20

 POWER OF MAIN MOTOR

7.5KW

7.5KW

7.5KW

TOTAL POWER

166KW

166KW

166KW

GRINDING HEAD DIAMETER

200mm

200mm

200mm

 GRINDING PLATE WIDTH

900cm

1200cm

1500cm

GRINDING PLATED HEIGHT

10-50cm

10-50cm

10-50cm

BEAMS SWING SPEED

3-35m/min

3-35m/min

3-35m/min

SLAB TRANSMITTED SPEED

1-3m/min

1-3m/min

1-3m/min

 COOLLING WATER PRESSURE

0.1-0.15MPA

0.1-0.15MPA

0.1-0.15MPA

WATER CONSUMPTION

25m3/h

25m3/h

25m3/h

AIR SUPPLY PRESSURE

0.8mpa

0.8mpa

0.8mpa

TOTAL WEIGHT

14000kgs

17000kgs

19000kgs

DIMENSION(LXWXH)

11000x2700x2300mm

11000x2700x2300mm

11000x2900x2300mm

REMARKS

Packing:  Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles

Lead time :15-45 days from production and 1-2weeks from stock

Guaranty time for elements: Half an year

Payment: 30% by T/T in advance as deposit, 70% upon dispatch

Market share:

Fujian Hailong brand granite automatic polishing machine, with our unique advantage have already occupied the domestic and overseas market successfully. Out china market includes the Guangdong province, Guangxi province, Shandong province, Hubei and Hunan province, Hebei province, Sichuan province, Xinjiang province and Hangzhou province with office in each place. And we also extend our overseas market in like Iran, Turkey, Pakistan, India, Indonesia, Vitemn, Thailand.
