Chinese High Quality PP PE Sheet Making Machine Production Line

Chinese High Quality PP PE Sheet Making Machine Production Line thumbnail-1
Chinese High Quality PP PE Sheet Making Machine Production Line photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Sheet
Plastic Processed:
PP
Contact Supplier Request Quote Chat Now
Qingdao Chinese Science Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Sheet
Plastic Processed PP
Screw Design Single-screw
Automatic Grade Automatic
Place of Origin Shandong, China
Brand Name HUAKE
Model Number HKSJ
Voltage 220v/380v
Power(W) 150KW
Dimension(L*W*H) customized
Weight customized
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Part I: Product information

Equipment list

NO.

Name

Quality

1

SJ 65x30 single screw extruder

1

2

sheet mould

1

3

three rollers to polish sheet

1

4

cooling and side cutting machine

1

7

rubber rolls driver(haul off machine)

1

8

sheet cutter

1

9

coiler

1







PP sheet extrusion machine

The product’s width:900mm, thickness:0.2-1.5mm

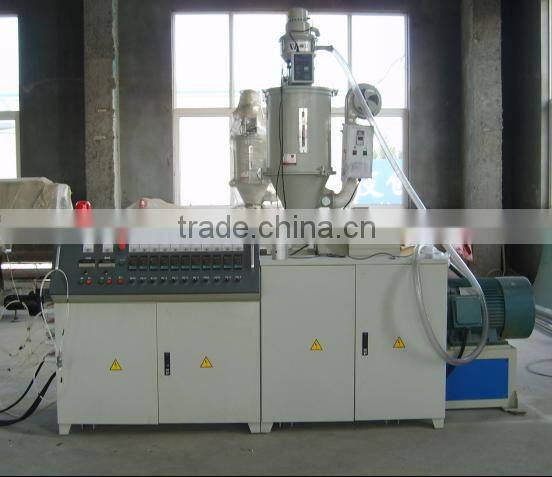

SJ-65/30 single screw extruder   one set



Automatic feeder



Type: SAL150G



Way: vacuum feeding way



Support material cavity:  180KG/H



Drive power: 2.2KW



Hopper dryer



Automatic feeder



Type: SAL150G



Way: vacuum feeding way



Support material cavity:  180KG/H



Drive power: 2.2KW



Hopper dryer



Type:  SHD150



Way: automatic controlling heat wind heating



Valid volume:150KG



Power: 3KW



1.1

Screw



Diameter

65mm

L: D

30:1

Material

38CrMoALA

Surface dealt

nitride and polish



1.2

Barrel



Material

38CrMoALA

Inside surface deal

nitride and polish

Heating controlling zone

5 zones

Heating way

casting aluminum cycle

Heating power

40kw

Cooling equipment

barrel winder cooling

Cooling power

0.25kwX5



1.3

Reducer (gear reducer)



Box material

HT200

Gear type

skew gear

Gear material

20CrNiTi

Gear surface deal

gear surface quench

Shaft material

40CrNiMo

Cooling style

cycle water cooling



1.4

Feeding seat



Type

water cycler type cooling way (recycling water)

Material

Q235



1.5

Drive motor



Way

AC motor

Power

45KW

Motor controller Way

AC adjust the speed





Electric controlling parts: main machine operating controlling cupboard



1

temperatures controlled meter: Japan RKC

2

Contactor: French Schneider product

3

Relay: French Schneider product

4

power indicating light,push button

French Schneider product

5

frequency conversion machine:

Model:45KW

6

frequency conversion machine:

Model: 1.5KW   feed material



3.sheet mould                                     1 set



(1) mould material: made of good quality steel forge part, surface deal with rigid chromic.

(2) mould type: finish goods width: 900mm, could adjust.

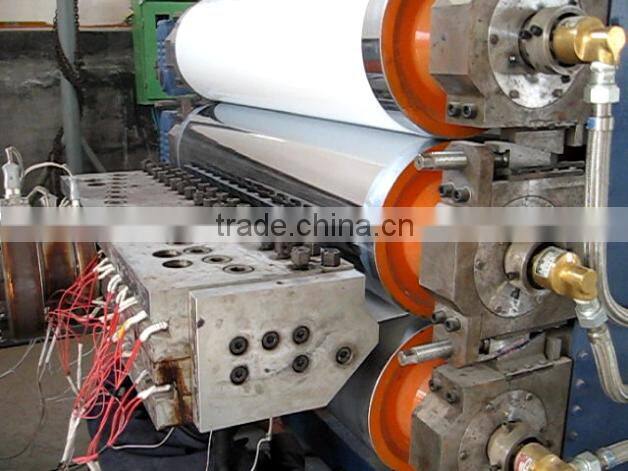

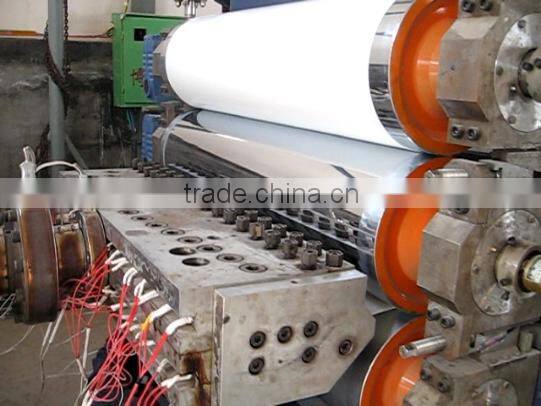

4.three rollers to polish sheet(the picture is only for your reference)



(1) casted by good quality steel, and have adjusting up-down rolls

(2)the rollers are twin-layer, the thickness of roll wall is ≥15mm

(3)single flowing road, inside recycle oil, the change of surface temperature is low 1 degree, casting by Chromium and deal as error, hard ≥RHC60, smoothness 14.

(4)use machine to drive, and have adjuster to adjust distance of roll

(5)use temperature controlling clock to control temperature

(6)three rolls drive, frequency conversion governor, easy cooperation and can be adjusting.

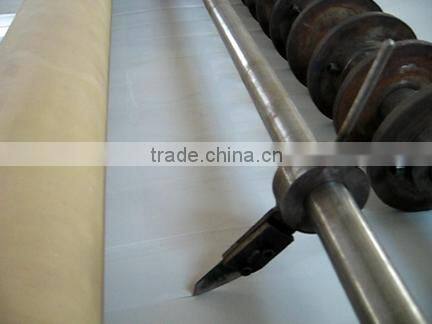

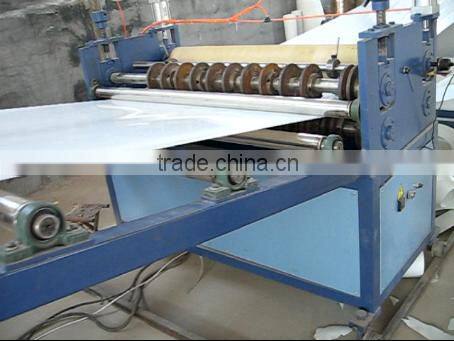

5. cooling and side cutting machine(the picture is only for your reference)



(1) diameter of roll is 75mm, use no space steel pipe, casting by Chromium on surface.

(2).side cutting machine one set, could adjust the width of the raw to cut

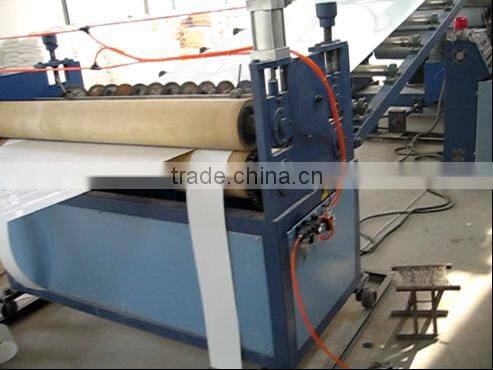

7. rubber rolls driver

(1) made of good quality rubber

(2) power of motor is7.5KW, frequency conversion governor

(3) planetary wove wire reducer

(4) the shelf of machine is casted by good quality steel

(5) tight by gas drive

8. sheet cutter

(1) the orientation cutter is sync with sheet

(2) the cut is controlled by pneumatic system.

iler

FAQ



Part II: Terms

1. Price Terms

2. Quantity Terms

MOQ: 1 Whole Line/Item

3. Warranty Terms

We provide one-year warranty for all the machines for free, responsible for installing and debugging the production line in your home country

4. Time Terms

Producing time: 35days

5.Packing Terms

Film

6. Payment Terms

T/T advance30% deposit and 70% balance payment by T/T before delivery

7.Other Notes

a)The price is valid for 30 days.

b)Any question, please no hesitation to contact us.

c)We are factory, the source of products, so we can make machines according to your order.

d)If you need more products, please visit our website
