Specifications
Ball Grinding Mill manufacturer1) wet or dry ball mill
2) high capacity ball mill
3) fine end product size after milling

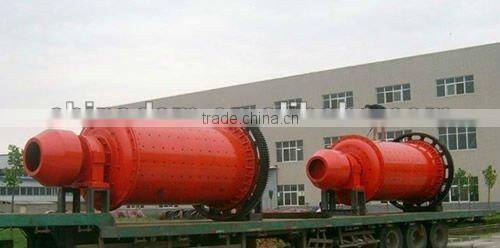

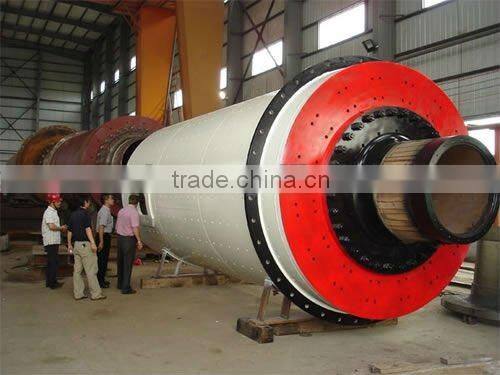

Hot Sale Ball Grinding Mill Manufacturer, Stone Crushing Mining Machinery
Brief Introduction:
Ball Grinding Mill manufacturer is the key equipment to re-crush the materials having been crushed. It is widely used in varies kind industry such as cement,silicate products,new building materials,refractory materials,
fertilizer,black and non-ferrous metal processing,glass ceramics etc,it can grind varies ores and grind-able materials with dry and wet means. Suitable for grinding various ores and other materials,ball mill are widely used in mineral processing,building materials and chemical industries,
and can be divided into dry and wet grinding ways. According to the different ways of discharge,it can be divided into lattice type and overflow type.
Features:
Ball Grinding Mill manufacturer use double roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.the intrinsic grille pattern forcing evacuation is instead by overfall pattern controlling one.This can improve the milling of the granule and the capacity is increased
by 15-20%.
Main technical date:
Model |
Rotation speed (r/min) |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Ø900*1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Ø900*13000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Ø1200*2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Ø1200*3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
Ø1200*4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500*3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
Ø1500*4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
Ø1500*5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
Ø1830*3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
Ø1830*6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
Ø1830*7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
Ø2200*5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
Ø2200*6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
Ø2200*7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |
