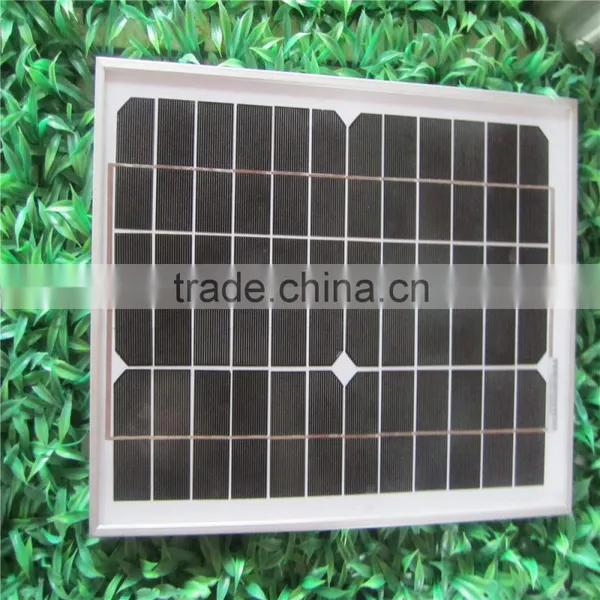

Professional Solar Panel Production Line for Solar pv Module

Professional Solar Panel Production Line for Solar pv Module photo-1
US$ 0.52 - 0.68 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
YH
Model Number:
SUN-M003P-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hubei, China
Brand Name YH
Model Number SUN-M003P-1
Material Polycrystalline Silicon
Size 255*145*8
Number of Cells 18pcs
Max. Power 3W
Product Description



Electrical characteristics

Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)

Model number: SUN-M003P-1

P(max):   3W

V(max):   9V

V(oc):     10.8V

I(max):    0.33A

I(sc):      0.37A

Power tolerance:  ±3%



Mechanical Characteristics

Cell type:  6 inches

Cell arrangement:  18

Dimensions (mm):     255*145*8

Weight (kg):   0.7

Frame:    anodized aluminum alloy

Junction box:  IP65 rated

Wind loads:   2400 Pascal certified

Output cables: double insulated solar cable, MC or compatible connection



Security data

High voltage test:       3000V DC/max, 50MA

Surface maximum load capacity:   200kg/sq.m

Allowable hail load:    225mg steel ball down from 2m height

Certifications

professional solar panel production line for solar pv moduleprofessional solar panel production line for solar pv moduleprofessional solar panel production line for solar pv module

structure chart

professional solar panel production line for solar pv module

Warranty

 5 years material and workmanship warranty

10 years ³90% power output

25 years ³80% power output



.  Quality insurance by 6 different China Insurance companies.

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jianshi, Hubei, China, near Wuhan. You are warmly welcomed to visit us .And before you take off from your country, please let us know. We will show you the way, or arrange time to pick you up if possible.



3. Q: Do you provide free sample?
    A: Usually we do not offer free sample.



4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.



5. Q: Could you print our company LOGO on the nameplate and package?

   A: Yes, we can do that.



6. Q: Do you accept custom design on size?

   A: Yes, if the size is reasonable.
