Electrical characteristics
Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)
Model number: SUN-M100M
P(max): 100W
V(max): 18V
V(oc): 21.6V
I(max): 5.56A
I(sc): 6.61A
Power tolerance: ±3%
Mechanical Characteristics
Cell type: 6 inches
Cell arrangement: 36
Dimensions (mm): 1200*540*35
Weight (kg):7.5
Frame: anodized aluminum alloy
Junction box: IP65 rated
Wind loads: 2400 Pascal certified
Output cables: double insulated solar cable, MC or compatible connection
Security data
High voltage test: 3000V DC/max, 50MA
Surface maximum load capacity: 200kg/sq.m
Allowable hail load: 225mg steel ball down from 2m height
Highlights of modules
. 100% tested by EL (electroluminescence) technology
. High efficiency of selected cells
. High transmittance, low iron tempered glass with
enhanced stiffness and impact resistance
. Anodized aluminum alloy frame with high mechanical
strength for easy installation
. Anti-aging EVA and high flame resistant back sheet, to
provide long-life and enhanced cell performance
. Outstanding electrical performance under high
temperature and low irradiance conditions

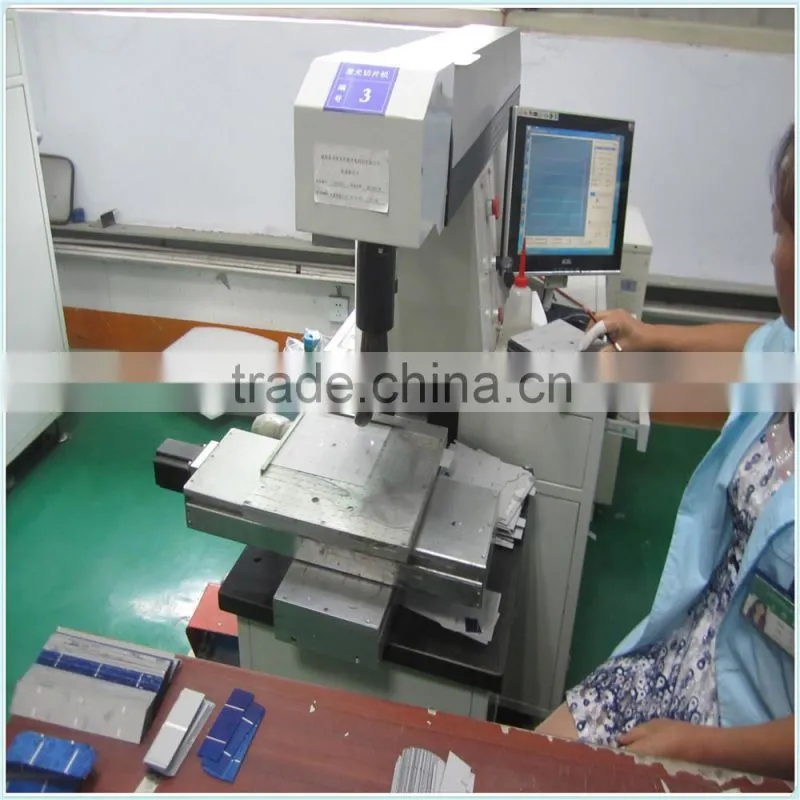

cell cutting

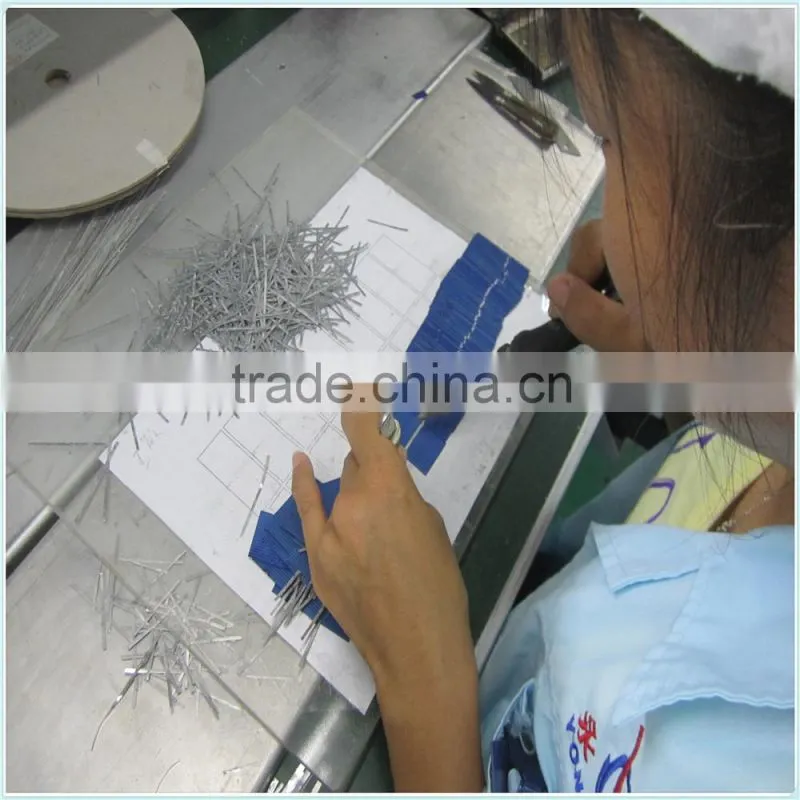

welding

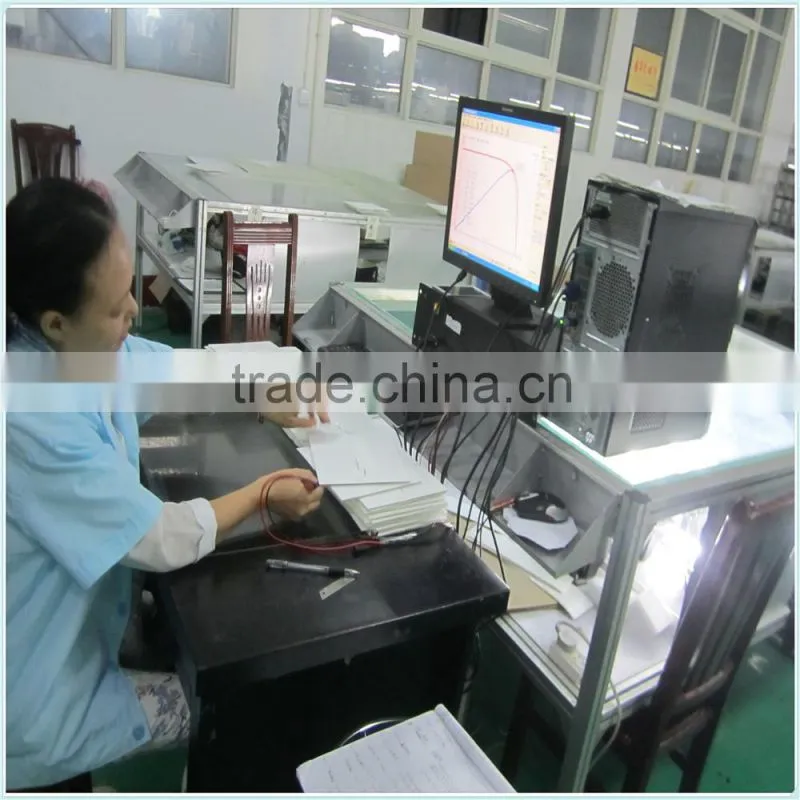

testing

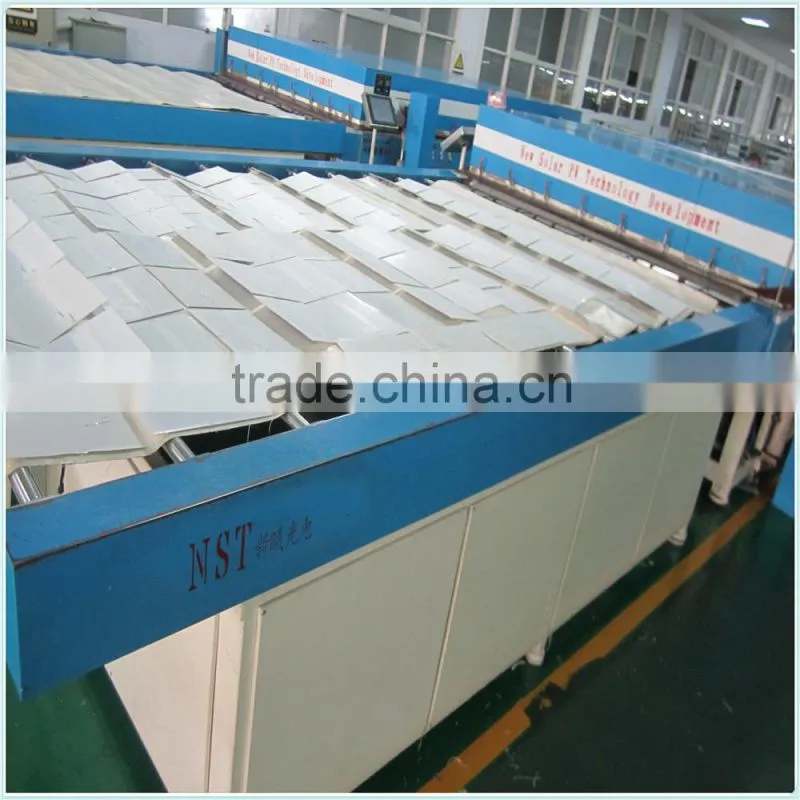

lamination

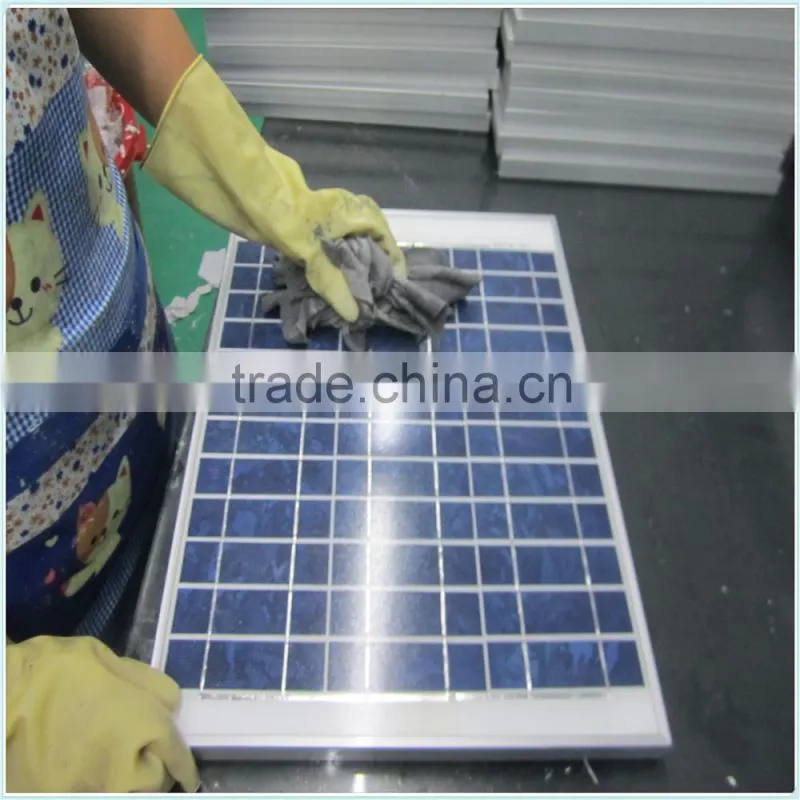

cleaning

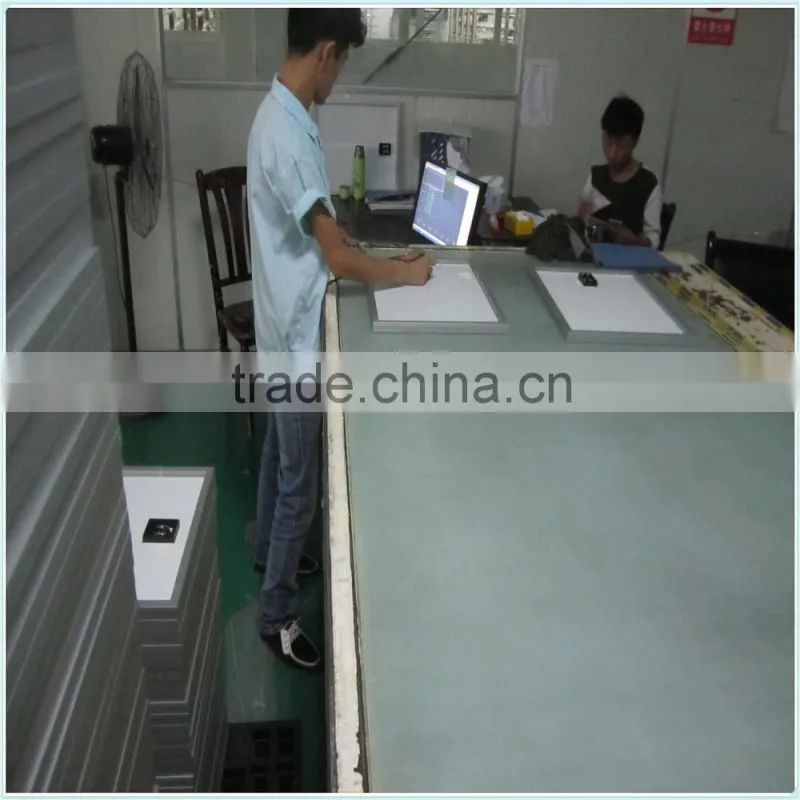

testing
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jianshi, Hubei, China, near Wuhan. You are warmly welcomed to visit us .And before you take off from your country, please let us know. We will show you the way, or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
5. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
6. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
