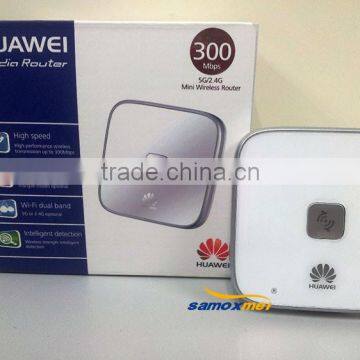

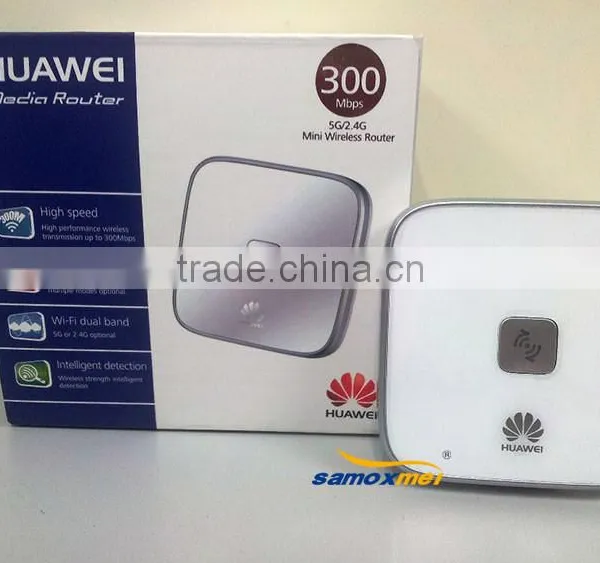

Huawei WS322 Wireless Repeater

he HUAWEI WS322 Wireless Repeater is a radio signal repeater that can work with wireless access points (APS) to extend the wireless network coverage. Using the WS322 over a wireless network effectively helps solve radio signal issues, such as signal impairment and attenuation.

1. Increases the range of existing wireless network
2. Easy integration or configuration via browser by WPS possible
3. Supports Wi-Fi 802.11 b/g/n
4. Small and flexible to use, simply plug into the socket
5. Transfer rate: up to 300 Mb/s
6. Supports the following multiple authentication modes on the WLAN interface Open system Wi-Fi Protected Access-pre-shared key (WPA-PSK) WPA2-PSK

Feature:
•Complies with 802.11b/g/n(2.4G), up to 300Mbps
•Wi-Fi router/clinet/repeater multiple modes optional
•One 10/100M Ethernet RJ-45 port

Specifications:

Hardware Interfaces One 10/100Mbps Ethernet RJ-45 port
Built-in power:
1:AC input(UK standard)
2:AC input(Europen standard)
3:AC input(Australia standard)
Buttons Reset
WPS
LEDs WLAN
WPS
ETH
Antenna 2x2 Internal antennas
Dimensions(L×W×H) 73mmx73mmx30.7mm(Without plug)
Net Weight < 200g
Power specifications Power supply:100V AC~240V AC
Power consumption:<5W
Wireless Protocols 802.11n, 802.11b/g compatible
Speed 300Mbps
Frequency 2.4GHz
Working modes Wi-Fi Router/Repeater/Client
Wireless security WEP(64/128), WPA/WPA2, WPA-PSK, WPA2-PSK certificate
TKIP, AES encryption
Wireless MAC address filtering
WPS
Functions Based functions Route function
Bridging function
TR-069
