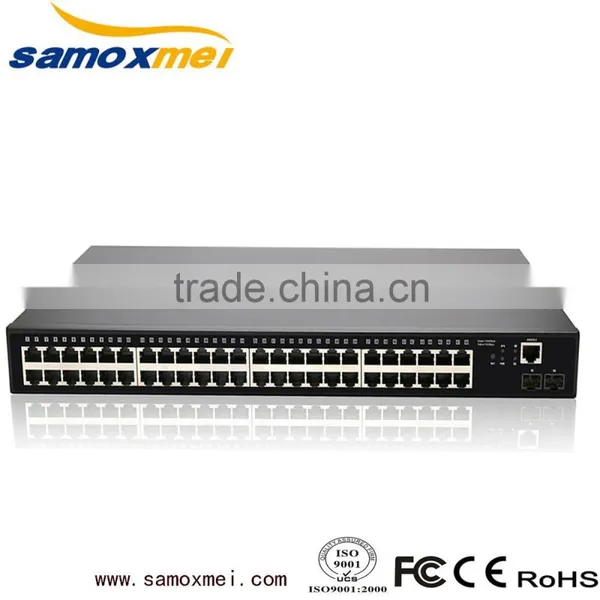

136G Backplane Bandwidth 10Gigabit Ethernet Switch

136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-1
136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-2
136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-3
136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-4
136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-5
136G Backplane Bandwidth 10Gigabit Ethernet Switch thumbnail-6
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-1
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-2
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-3
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-4
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-5
136G Backplane Bandwidth 10Gigabit Ethernet Switch photo-6
US$ 480.00 - 560.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≥ 48
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Shenzhen Smartlink EC Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≥ 48
Transmission Rate 10/100/1000Mbps
Function LACP, QoS, SNMP, VLAN Support
Communication Mode Full-Duplex
Certification CE ROHS
Switch Capacity 136G
Brand Name Samoxmei
Model Number SL-ES5850XF
Place of Origin Guangdong, China
Product Description

10Gigabit Ethernet Switch SL-ES5850XF can support single mode, multi-mode module, and can achieve wire-speed non-blocking switching.
Provides 48 10/100/1000M RJ45 ports,2 10GE SFP+ ports and 1 Console port; Port 49,50 can achieve port trunking
Plug-n-play, easy to install and use;
All of ports support auto-negotiation function (speed / duplex mode);Support AUTO-MDIX function, auto-identify the straight-through cable and crossover cable;
Support long frame transmission;
Large capacity, high bandwidth, all ports are wire-speed non-blocking working;
Very suitable for small and medium-sized enterprises, campus network, Internet cafes and MAN use.

Specification
Model No
SL-ES5850XF 10Gigabit Ethernet Switch
Chipset
Broadcom BCM53346*1+ BCM53344*1+BCM50282*2
Basic characteristics
Fixed port
48 10/100/1000M RJ45 Electrical ports, 2 10G ports, 1 Console port
Backplane bandwidth
136Gbps
Packet forwarding rate
101.484Mpps
Processor
RISC 400MHz
Flash memory capacity
16MB
The memory capacity
128MB
Address table
16K
Packet Buffer
3MB
Product characteristics
Spanning tree
Support STP, RSTP, MSTP
Security Features
IP+MAC+PORT+VLAN binding
ARP inspection
DOS defend
Port protect
IP Source Guard binding
VLAN
Support port-based VLAN
Support 802.1Q labeled VLAN
Support for Private Vlan
Flow control
Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Broadcast control
Restraining broadcast storm, stop sending so long as reaching a critical point
Mlticast control
IGMP Snooping multicast message automatic monitoring
Port binding
Each group of a maximum of 8, while support 32group
LACP dynamic or static polymerization
Port mirroring
Support based on flow classification mirroring and port mirroring
Characteristics of DHCP
Hardware support for IP ACL, MAC ACL, Vlan ACL
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication
User classification management and password protection
Safety control technology
Policy control list
Quality of service
IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
DRR, WRR, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
RTS
Network management
SNMP v1/v2/v3
Telnet
WEB interface
Support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Power characteristic
  AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power
≥80W
Indicator lamp
Power indicator, indication of system, connecting / transceiver instructions
Environment
Humidity / Temperature
0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation
