24 Ports 10Gigabit Ethernet Switch

Shenzhen Smartlink EC Industrial Co., Ltd.
24 Ports 10Gigabit Ethernet Switch thumbnail-1
24 Ports 10Gigabit Ethernet Switch thumbnail-2
24 Ports 10Gigabit Ethernet Switch thumbnail-3
24 Ports 10Gigabit Ethernet Switch thumbnail-4
24 Ports 10Gigabit Ethernet Switch thumbnail-5
24 Ports 10Gigabit Ethernet Switch thumbnail-6
24 Ports 10Gigabit Ethernet Switch photo-1

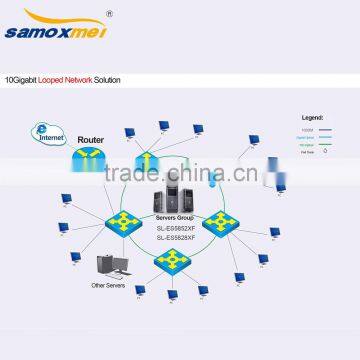

24 Ports 10Gigabit Ethernet Switch photo-2

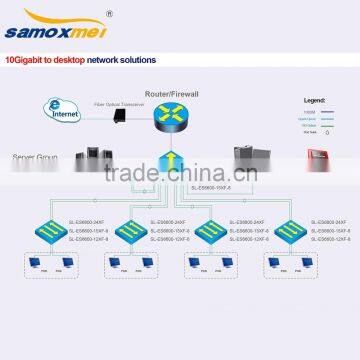

24 Ports 10Gigabit Ethernet Switch photo-3

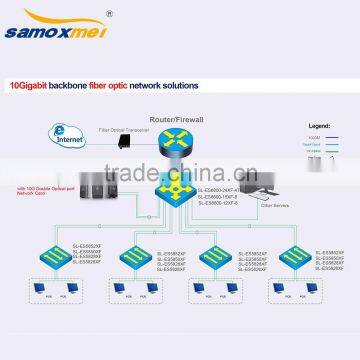

24 Ports 10Gigabit Ethernet Switch photo-4

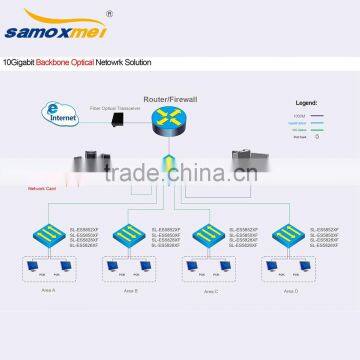

24 Ports 10Gigabit Ethernet Switch photo-5

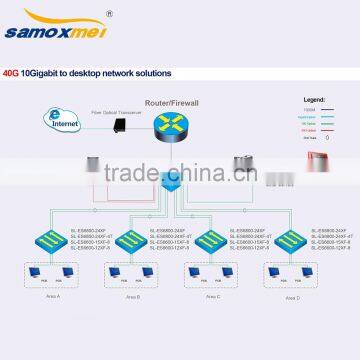

24 Ports 10Gigabit Ethernet Switch photo-6
US$ 330.00 - 400.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports 24
Transmission Rate 10/100/1000Mbps
Function LACP, QoS, SNMP, VLAN Support
Communication Mode Full-Duplex
Certification CE ROHS
Switch Capacity 88Gbps
Brand Name Samoxmei
Model Number SL-ES5826XF
Place of Origin Guangdong, China
Product Description

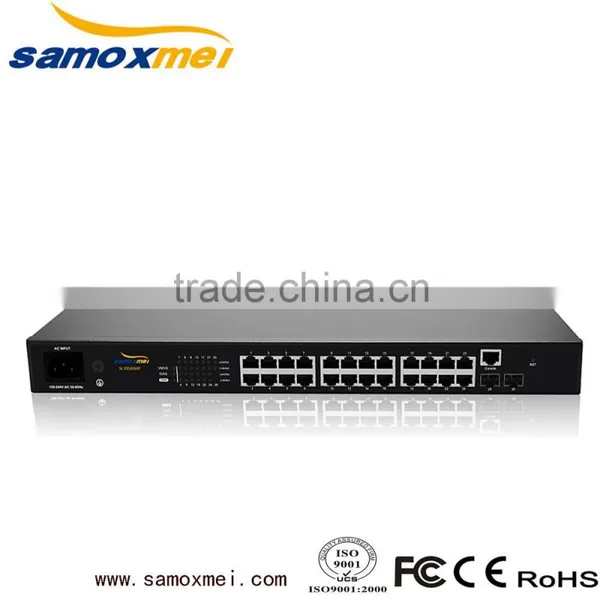

10Gigabit Ethernet Switch SL-ES5826XF is standard 2-layer non-blocking switch. Provide 24 10/100/1000M RJ45 ports, 2 10GE SFP+ ports and 1 Console port. Based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. Very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

Features
1 . High performance
With 88G backplane bandwidth
Hardware routing, wire-speed 3rd layer switching packet forwarding rate of 65.472Mbps
Can be deployed in the core of metropolitan area network , and provides several final 1 km Technology
2 . Safety
Provide DOS, distributed denial of service, deception and virus defense
Support IEEE802.1x, provide port-based user authentication, network shield, safety control, and strategy control technology
Restrict maximum number of connected hosts port, with multi-channel Ethernet interface binding, increasing bandwidth and system redundancy
Powerful ACL, support for L2-L4 layer data filtering
Support QinQ function
Strategy control list, flow regulation
3 . convenient use and maintenance
use clustering technology, support for more than one device stack, with a unified IP Address to carry on centralized management and address resources savings
all kinds of management method through Web, SNMP and so on
support XModem protocol, can be used to upgrade software and BootRom by TFTP/ZMODEM
support DHCP server and relay functions, dynamic allocation of IP address
support SFP+, but also downward compatible XFP
provide redundant power supply, quick failover and quick connection, greatly increasing the reliability of the system
4 . powerful flow and broadcast management
automatic detecting and broadcast storm restraining, support for IGMP message detection, effectively limit the spread of broadcast message
support full duplex mode and half duplex mode flow control
support Ethernet interface with 1M as the rate limiting step
advanced buffer management, support 802.1p protocol, 8 transmit queues per port mapping 802.1p 8 priority
support IP multicast and QoS
Specification
Model No
SL-ES5826XF 10Gigabit Ethernet Switch
Chipset
Broadcom BCM53346*1+ BCM50282*1
Basic characteristics
Fixed port
24 10/100/1000M RJ45 Electrical ports, 2 10G ports, 1 Console port
Backplane bandwidth
88Gbps
Packet forwarding rate
65.472Mpps
Processor
RISC 400MHz
Flash memory capacity
16MB
The memory capacity
128MB
Address table
16K
Packet Buffer
3MB
Product characteristics
Spanning tree
Support STP, RSTP, MSTP
Security Features
IP+MAC+PORT+VLAN binding
ARP inspection
DOS defend
Port protect
IP Source Guard binding
VLAN
Support port-based VLAN
Support 802.1Q labeled VLAN
Support for Private Vlan
Flow control
Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Broadcast control
Restraining broadcast storm, stop sending so long as reaching a critical point
Mlticast control
IGMP Snooping multicast message automatic monitoring
Port binding
Each group of a maximum of 8, while support 32group
LACP dynamic or static polymerization
Port mirroring
Support based on flow classification mirroring and port mirroring
Characteristics of DHCP
Hardware support for IP ACL, MAC ACL, Vlan ACL
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication
User classification management and password protection
Safety control technology
Policy control list
Quality of service
IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
DRR, WRR, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
RTS
Network management
SNMP v1/v2/v3
Telnet
WEB interface
Support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Power characteristic
  AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power
≥60W
Indicator lamp
Power indicator, indication of system, connecting / transceiver instructions
Environment
Humidity / Temperature
0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation
